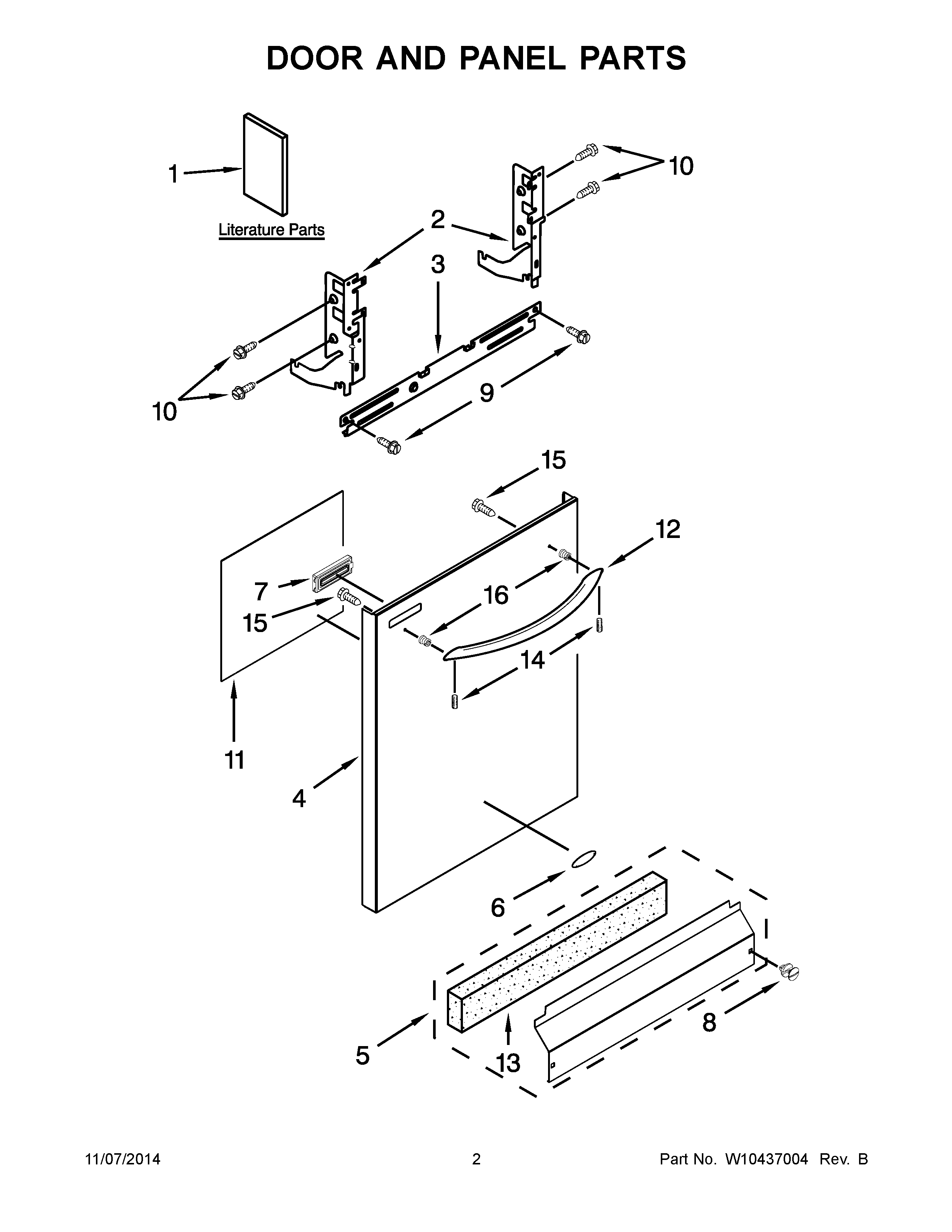

7WDT770PAYM0 02 – DOOR AND PANEL PARTS

Products

PositionProduct
1INSTRUCTIONS,INSTALLATION
1AUSE & CARE GUIDE, SPANISH
1BTECH SHEET
2W11612302 Whirlpool Dishwasher Door Hinge
2AW11612303 Whirlpool Door Hinge
3STIFFENER, DOOR
4PANEL FRONT (INCLUDES 6, 7, 15 & 16) (WHITE)
4APANEL FRONT (INCLUDES 6, 7, 15 & 16) (STAINLESS)
5AW10827632 Whirlpool Dishwasher Control Panel
5W10827631 Whirlpool Toe Panel
6W11178521 Whirlpool Dishwasher Nameplate
7GRILL, VENT
8WPW10503548 Whirlpool Dishwasher Panel Retainer Clip
8AWPW10503549 Whirlpool Dishwasher Retainer Clip
9WP489069 Whirlpool Compactor Screw
10WPW10109200 Whirlpool Screw
11W11126003 Whirlpool Dishwasher Insulation Pad
12AHANDLE (STAINLESS)
12W10873052 Whirlpool Dishwasher Handle
13SHIELD
14WP8534008 Whirlpool Screw
15W10826179 Whirlpool Dishwasher Screw
16W11157086 Whirlpool Dishwasher Door Handle Stud
