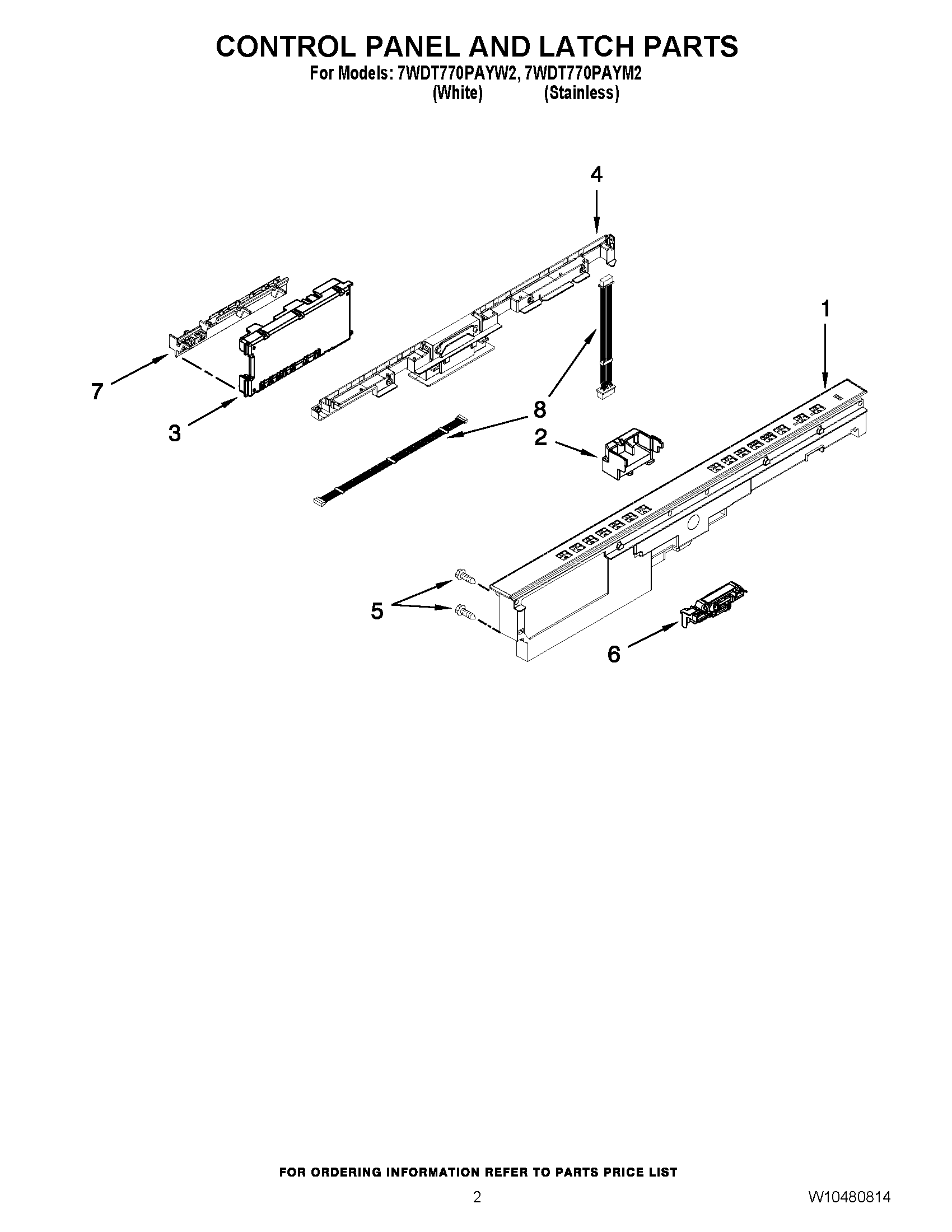

7WDT770PAYM2 02 – CONTROL PANEL AND LATCH PARTS

Products

PositionProduct
1CONSOLE ASM. (WHITE)
1CONSOLE ASM. (STAINLESS)
2W10783730 Whirlpool Dishwasher Connector
3W10482988 Whirlpool Dishwasher Electronic Control Board
4HOUSING, UI
5WPW10177098 Whirlpool Dishwasher Screw
6W10619006 Whirlpool Door Latch
7WPW10194937 Whirlpool Dishwasher Control Bracket
8W10347251 Whirlpool Dishwasher Wire
8W10300781 Whirlpool Dishwasher Wire
