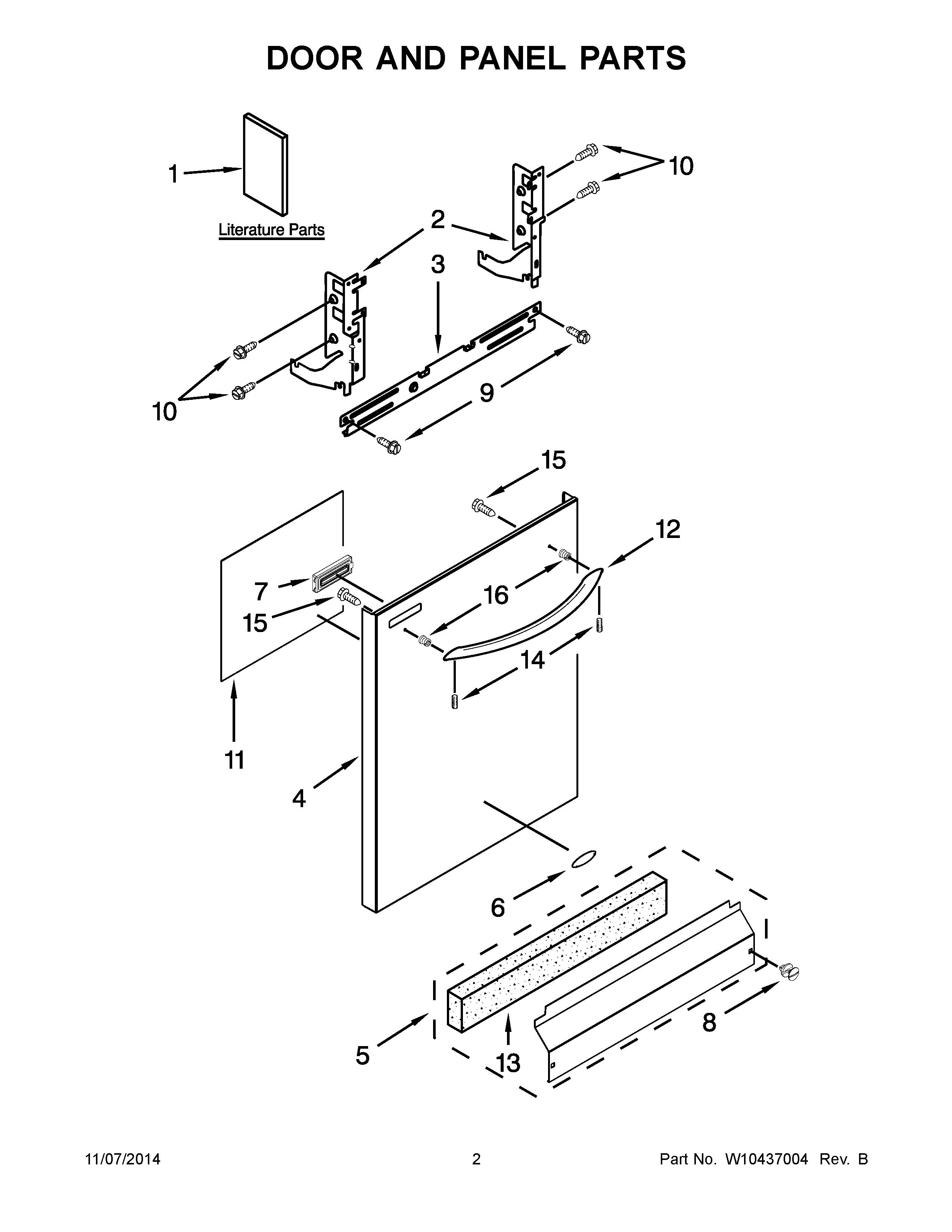

7WDT770PAYW0 02 – DOOR AND PANEL PARTS

Products

Position	Product
1	INSTRUCTIONS,INSTALLATION
1A	USE & CARE GUIDE, SPANISH
1B	TECH SHEET
2	W11612302 Whirlpool Dishwasher Door Hinge
2A	W11612303 Whirlpool Door Hinge
3	STIFFENER, DOOR
4	PANEL FRONT (INCLUDES 6, 7, 15 & 16) (WHITE)
4A	PANEL FRONT (INCLUDES 6, 7, 15 & 16) (STAINLESS)
5A	W10827632 Whirlpool Dishwasher Control Panel
5	W10827631 Whirlpool Toe Panel
6	W11178521 Whirlpool Dishwasher Nameplate
7	GRILL, VENT
8	WPW10503548 Whirlpool Dishwasher Panel Retainer Clip
8A	WPW10503549 Whirlpool Dishwasher Retainer Clip
9	WP489069 Whirlpool Compactor Screw
10	WPW10109200 Whirlpool Screw
11	W11126003 Whirlpool Dishwasher Insulation Pad
12A	HANDLE (STAINLESS)
12	W10873052 Whirlpool Dishwasher Handle
13	SHIELD
14	WP8534008 Whirlpool Screw
15	W10826179 Whirlpool Dishwasher Screw
16	W11157086 Whirlpool Dishwasher Door Handle Stud
