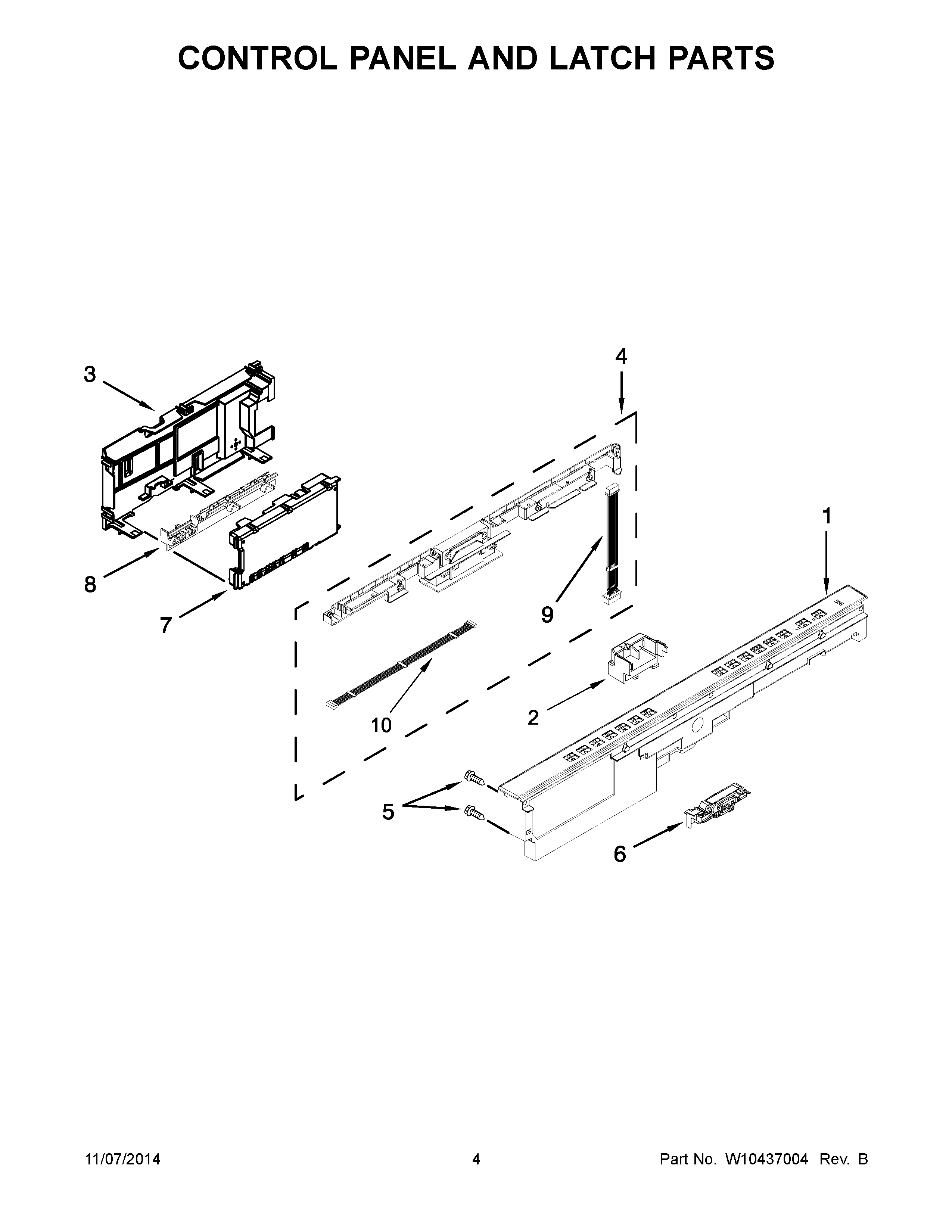

7WDT770PAYW0 03 – CONTROL PANEL AND LATCH PARTS

7WDT770PAYW0 03 – CONTROL PANEL AND LATCH PARTS

Written by

in

7WDT770PAYW0 03 – CONTROL PANEL AND LATCH PARTS

Products

PositionProduct
1CONSOLE ASM. (WHITE)
1ACONSOLE ASM. (STAINLESS)
2W10783730 Whirlpool Dishwasher Connector
3COVER CONTROL SHIELD ASSEMBLY
4HOUSING, UI
5WPW10177098 Whirlpool Dishwasher Screw
6W10619006 Whirlpool Door Latch
7W10482988 Whirlpool Dishwasher Electronic Control Board
8WPW10194937 Whirlpool Dishwasher Control Bracket
9W10300781 Whirlpool Dishwasher Wire
10W10347251 Whirlpool Dishwasher Wire
