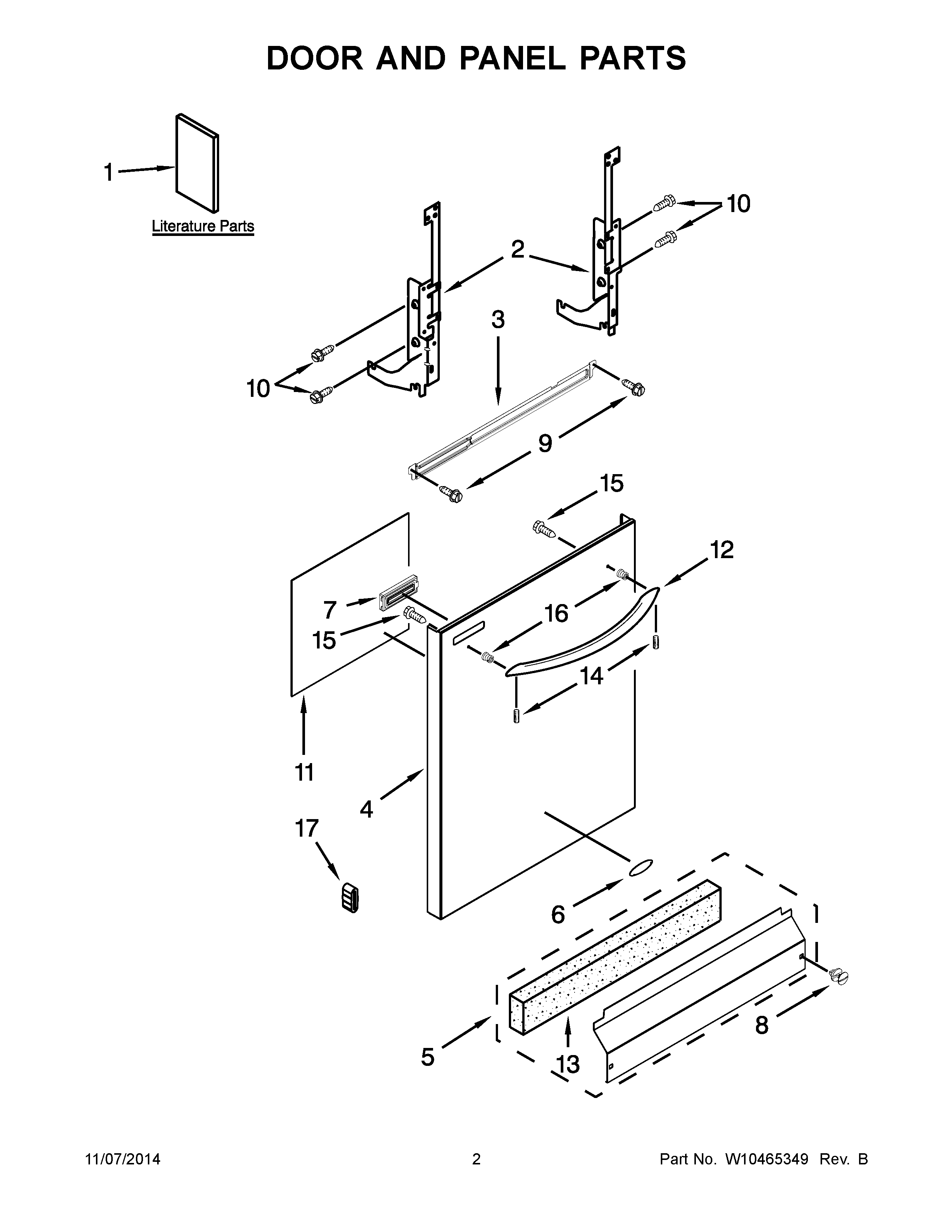

7WDT770PAYW1 02 – DOOR AND PANEL PARTS

7WDT770PAYW1 02 – DOOR AND PANEL PARTS

Written by

in

7WDT770PAYW1 02 – DOOR AND PANEL PARTS

Products

PositionProduct
1BTECH SHEET
1INSTRUCTIONS, INSTALLATION
1AUSE & CARE GUIDE, SPANISH
2AW11612303 Whirlpool Door Hinge
2W11612302 Whirlpool Dishwasher Door Hinge
3W10850371 Whirlpool Dishwasher Door Brace
4APANEL FRONT (INCLUDES 6, 7, 15 & 16) (STAINLESS)
4PANEL FRONT (INCLUDES 6, 7, 15 & 16) (WHITE)
5W10827631 Whirlpool Toe Panel
5AW10827632 Whirlpool Dishwasher Control Panel
6W11178521 Whirlpool Dishwasher Nameplate
7GRILL, VENT
8WPW10503548 Whirlpool Dishwasher Panel Retainer Clip
8AWPW10503549 Whirlpool Dishwasher Retainer Clip
9WP489069 Whirlpool Compactor Screw
10WPW10109200 Whirlpool Screw
11W11126003 Whirlpool Dishwasher Insulation Pad
12W10873052 Whirlpool Dishwasher Handle
12AHANDLE (STAINLESS)
13SHIELD
14WP8534008 Whirlpool Screw
15W10826179 Whirlpool Dishwasher Screw
16W11157086 Whirlpool Dishwasher Door Handle Stud
17WP8268961 Whirlpool Friction Pad
