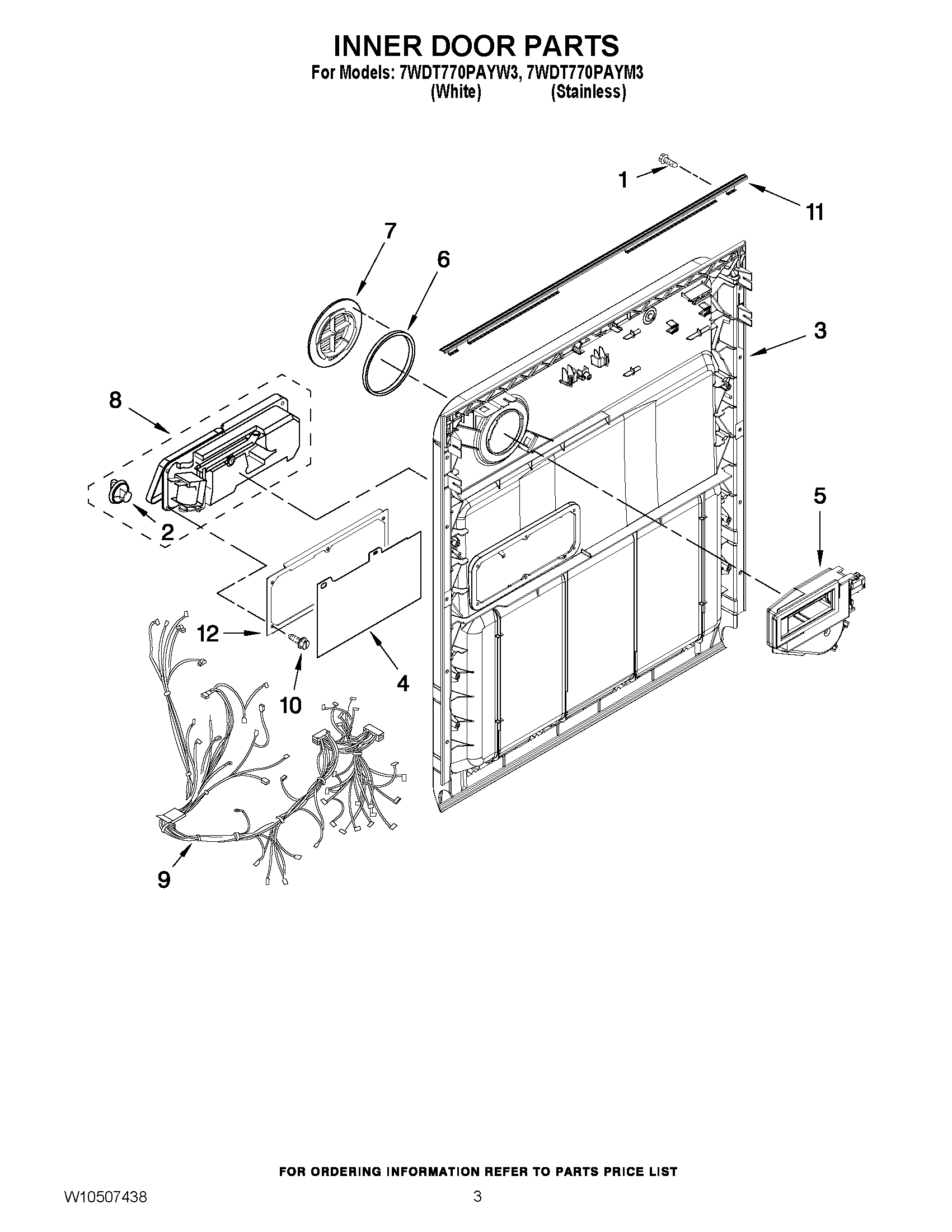

7WDT770PAYW3 03 – INNER DOOR PARTS

7WDT770PAYW3 03 – INNER DOOR PARTS

Written by

in

7WDT770PAYW3 03 – INNER DOOR PARTS

Products

PositionProduct
1WPW10348413 Whirlpool Dishwasher Screw
2WP8558307 Whirlpool Rinse Aid Dispenser Cap
3W11513967 Whirlpool Dishwasher Inner Door
4WPW10482094 Whirlpool Dishwasher Cover
5WPW10428211 Whirlpool Vent
6WP8269259 Whirlpool Air Vent Gasket
7WPW10274926 Whirlpool Dishwasher Deflector
8WPW10195175 Whirlpool Dishwasher Detergent Dispenser
9WPW10496088 Whirlpool Dishwasher Wire Harness
10WPW10177098 Whirlpool Dishwasher Screw
11W10837566 Whirlpool Seal
12WPW10462232 Whirlpool Dishwasher Dispenser Mounting Bracket
