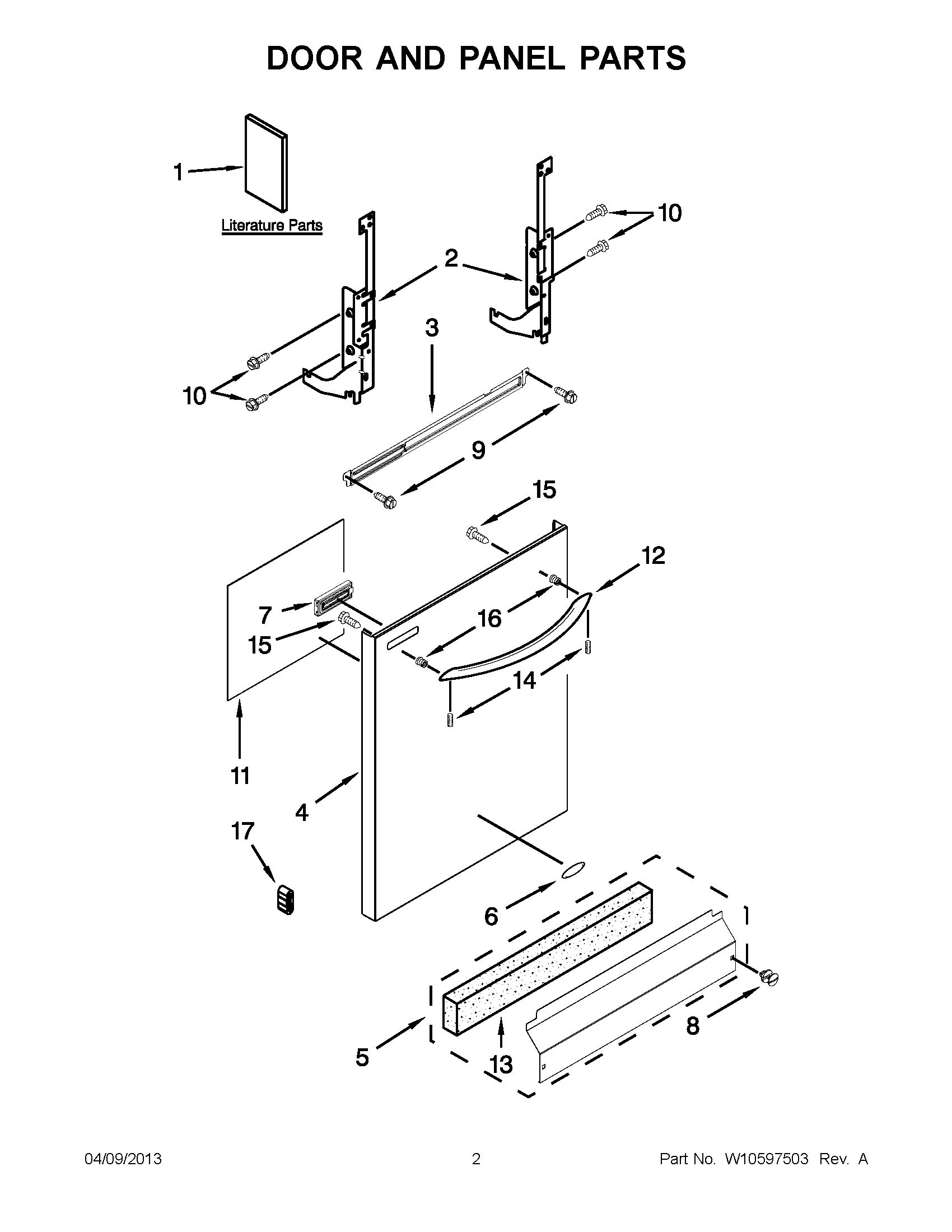

7WDT770PAYW4 01 – DOOR AND PANEL PARTS

Products

Position	Product
1	INSTALLATION INSTRUCTIONS
1	USE & CARE GUIDE, SPANISH
1	TECH SHEET, SPANISH
2	W11613573 Whirlpool Door Hinge
2	W11613572 Whirlpool Dishwasher Door Hinge
3	W10850371 Whirlpool Dishwasher Door Brace
4	PANEL FRONT (INCLUDES 6, 7, 15 & 16) (STAINLESS)
4	PANEL FRONT (INCLUDES 6, 7, 15 & 16) (WHITE)
5	W10827632 Whirlpool Dishwasher Control Panel
5	W10827631 Whirlpool Toe Panel
6	W11178521 Whirlpool Dishwasher Nameplate
6	WPW10393264 Whirlpool Refrigerator Nameplate
7	VENT (WHITE)
7	VENT (SILVER)
8	WPW10503548 Whirlpool Dishwasher Panel Retainer Clip
8	WPW10503549 Whirlpool Dishwasher Retainer Clip
9	WP489069 Whirlpool Compactor Screw
10	WPW10109200 Whirlpool Screw
11	W11126003 Whirlpool Dishwasher Insulation Pad
12	W10873052 Whirlpool Dishwasher Handle
12	HANDLE (STAINLESS)
13	SHIELD
14	WP8534008 Whirlpool Screw
15	W10826179 Whirlpool Dishwasher Screw
16	W11157086 Whirlpool Dishwasher Door Handle Stud
17	WP8268961 Whirlpool Friction Pad
