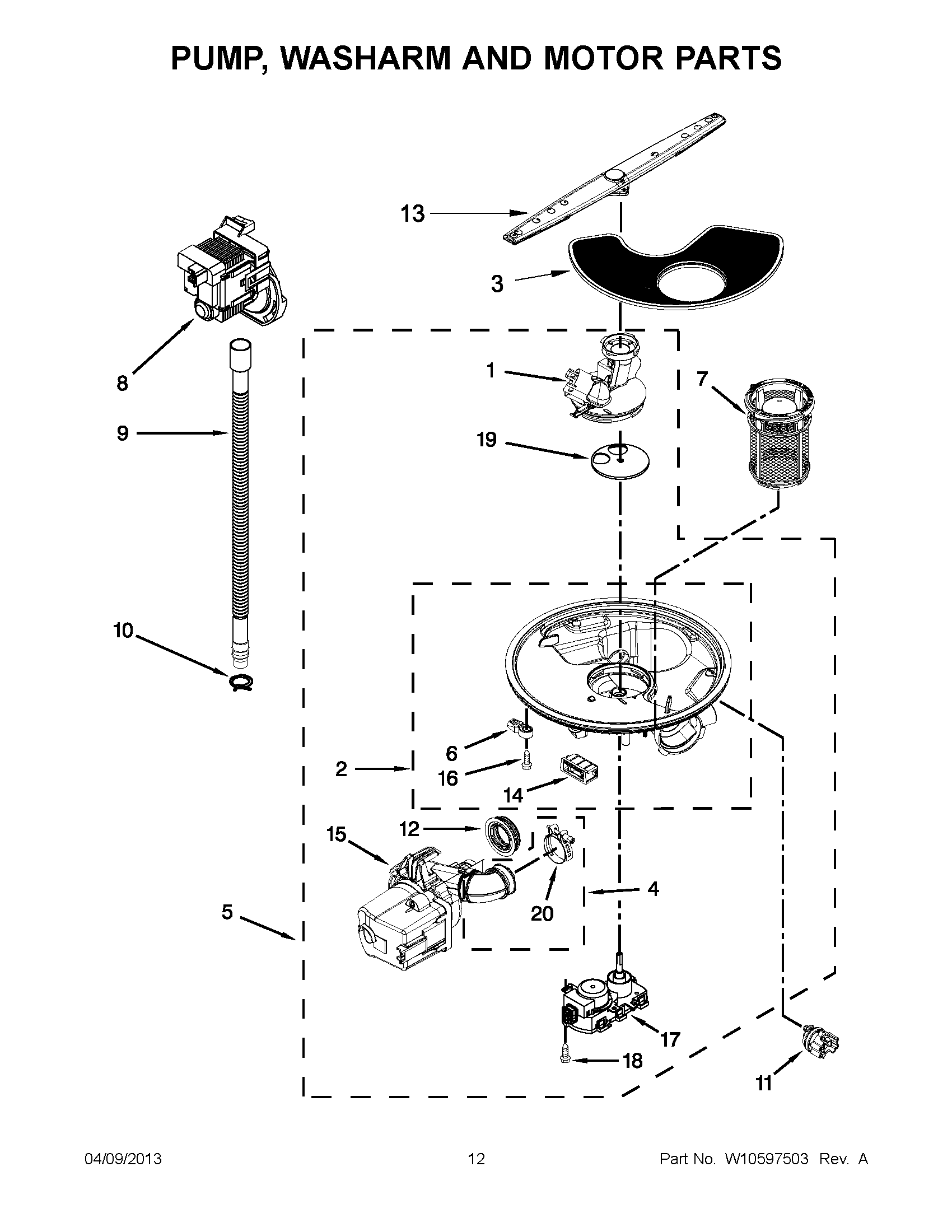

7WDT770PAYW4 06 – PUMP, WASHARM AND MOTOR PARTS

Products

Position	Product
1	WPW10455272 Whirlpool Dishwasher Cover
2	WPW10455268 Whirlpool Sump
3	WPW10463906 Whirlpool Dishwasher Screen Filter Cover
4	W10445975 Whirlpool Dishwasher Sump Hose with Wash Pump and 2 Clamps
5	WPW10482482 Whirlpool Dishwasher Pump and Motor
6	WPW10372113 Whirlpool Dishwasher Sump Tab
7	W10872845 Whirlpool Dishwasher Filter Cup Trap
8	WPW10348269 Whirlpool Washer Drain Pump
9	8269144A Whirlpool Dishwasher Drain Hose
10	WP356138 Whirlpool Hose Clamp
11	WPW10705575 Whirlpool Dishwasher Sensor
12	WPW10538166 Whirlpool Grommet Pump
13	ARM-SPRAY
14	W11243394 Whirlpool Dishwasher Support
15	W11032770 Whirlpool Dishwasher Circulation Pump & Motor
16	WPW10348407 Whirlpool Dishwasher Screw
17	W10537869 Whirlpool Dishwasher Motor
18	WP9741232 Whirlpool Dishwasher Screw
19	WPW10476221 Whirlpool Dishwasher Diffuser
20	W10789434 Whirlpool Dishwasher Hose Clamp
