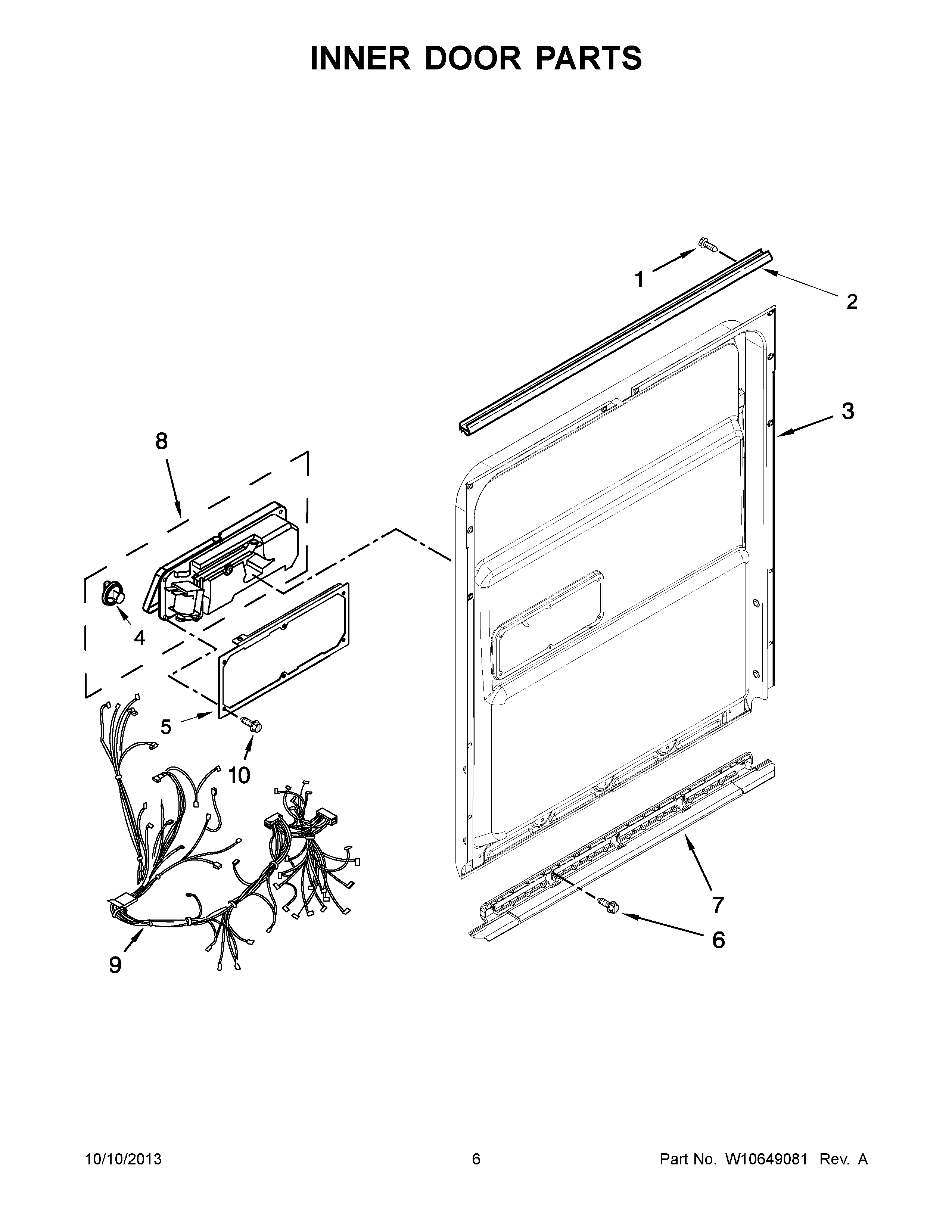

7WDT790SAYM3 04 – INNER DOOR PARTS

7WDT790SAYM3 04 – INNER DOOR PARTS

Written by

in

7WDT790SAYM3 04 – INNER DOOR PARTS

Products

PositionProduct
1WPW10348409 Whirlpool Screw
2WPW10195007 Whirlpool Dishwasher Seal
3WPW10380376 Whirlpool Dishwasher Inner Door
4WPW10524911 Whirlpool Dishwasher Cap
5WPW10462232 Whirlpool Dishwasher Dispenser Mounting Bracket
6W11631670 Whirlpool Screw
7WPW10497235 Whirlpool Dishwasher Lower Door Seal
8DISPENSER (DISHWASHER)
9WPW10612062 Whirlpool Dishwasher Wire Harness
10WPW10177098 Whirlpool Dishwasher Screw
