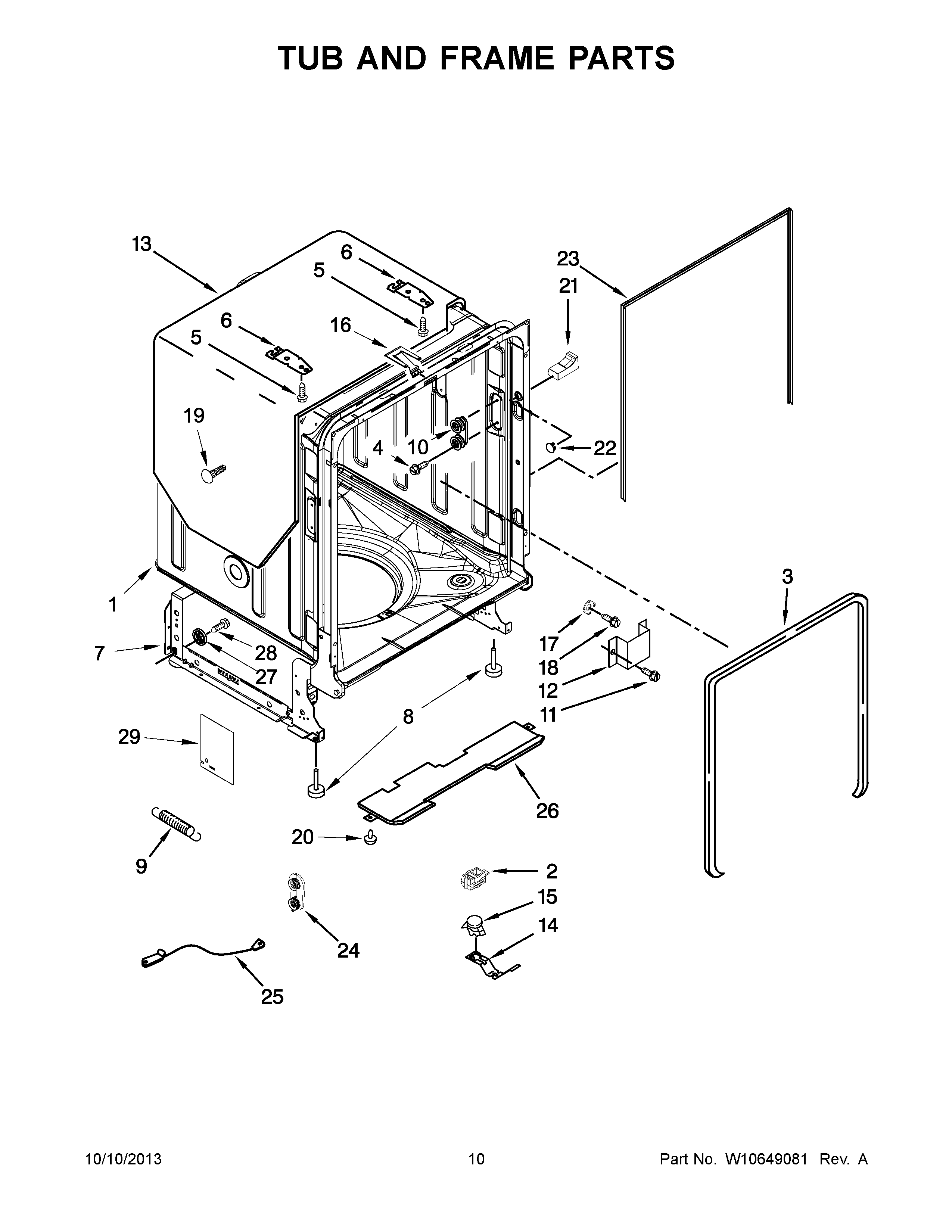

7WDT790SAYM3 06 – TUB AND FRAME PARTS

Products

Position	Product
1	WPW10681507 Whirlpool Dishwasher Tub
2	W10292870 Whirlpool Dishwasher Housing
3	SEAL
4	WPW10309090 Whirlpool Dishwasher Screw
5	WP308685 Whirlpool Microwave Screw
6	WP8269145 Whirlpool Dishwasher Mounting Bracket
7	WPW10681564 Whirlpool Dishwasher Support
8	8193716 Whirlpool Leveling Leg
9	SPRING
10	WPW10505748 Whirlpool Dishwasher Dishrack Wheel
11	WP3400892 Whirlpool Dishwasher Screw
12	WP8268991 Whirlpool Dishwasher Cover Assembly
13	W11086533 Whirlpool Dishwasher Shield
14	W10300703 Whirlpool Dishwasher Bracket Stat
15	WPW10195091 Whirlpool Thermostat
16	WPW10544004 Whirlpool Dishwasher Strike
17	WP3378128 Whirlpool Dishwasher Washer
18	WP3400014 Whirlpool Dishwasher Screw
19	WP304666 Whirlpool Dishwasher Retainer
20	WP3400924 Whirlpool Dishwasher Retainer
21	W10195630 Whirlpool Dishwasher Spacer
21	W10195631 Whirlpool Dishwasher Tank Spacer
22	W10795980 Whirlpool Cap
23	W11177741 Whirlpool Dishwasher Door Gasket
24	WPW10084086 Whirlpool Dishwasher Mount
25	8194001 Whirlpool Dishwasher Door Balance Link Kit
26	WPW10746770 Whirlpool Insulation Pad
27	WPW10190778 Whirlpool Dishwasher Wheel
28	WPW10348411 Whirlpool Roller Wheel Screw
29	COVER, FILL VALVE
