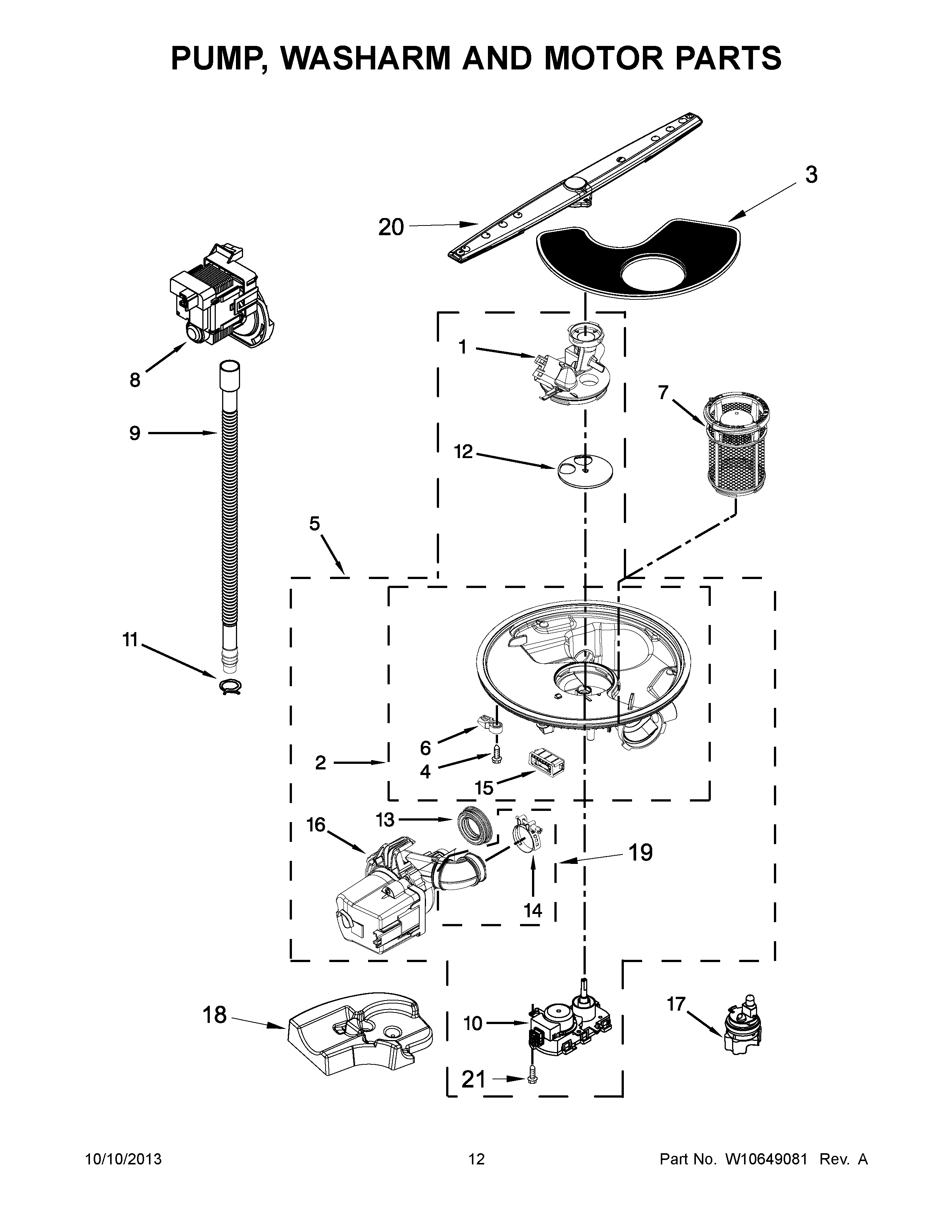

7WDT790SAYM3 07 – PUMP, WASHARM AND MOTOR PARTS

Products

PositionProduct
1WPW10455271 Whirlpool Cover
2WPW10455268 Whirlpool Sump
3WPW10463906 Whirlpool Dishwasher Screen Filter Cover
4WPW10348407 Whirlpool Dishwasher Screw
5WPW10605057 Whirlpool Dishwasher Pump and Motor Assembly
6WPW10372113 Whirlpool Dishwasher Sump Tab
7W10872845 Whirlpool Dishwasher Filter Cup Trap
8WPW10348269 Whirlpool Washer Drain Pump
98269144A Whirlpool Dishwasher Drain Hose
10W10537869 Whirlpool Dishwasher Motor
11WP356138 Whirlpool Hose Clamp
12WPW10476221 Whirlpool Dishwasher Diffuser
13WPW10538166 Whirlpool Grommet Pump
14W10488094 Whirlpool Dishwasher Clamp
15W11243394 Whirlpool Dishwasher Support
16W11032770 Whirlpool Dishwasher Circulation Pump & Motor
17WPW10705575 Whirlpool Dishwasher Sensor
18W10350335 Whirlpool Dishwasher Damper
19W10445975 Whirlpool Dishwasher Sump Hose with Wash Pump and 2 Clamps
20ARM-SPRAY
21WP9741232 Whirlpool Dishwasher Screw
