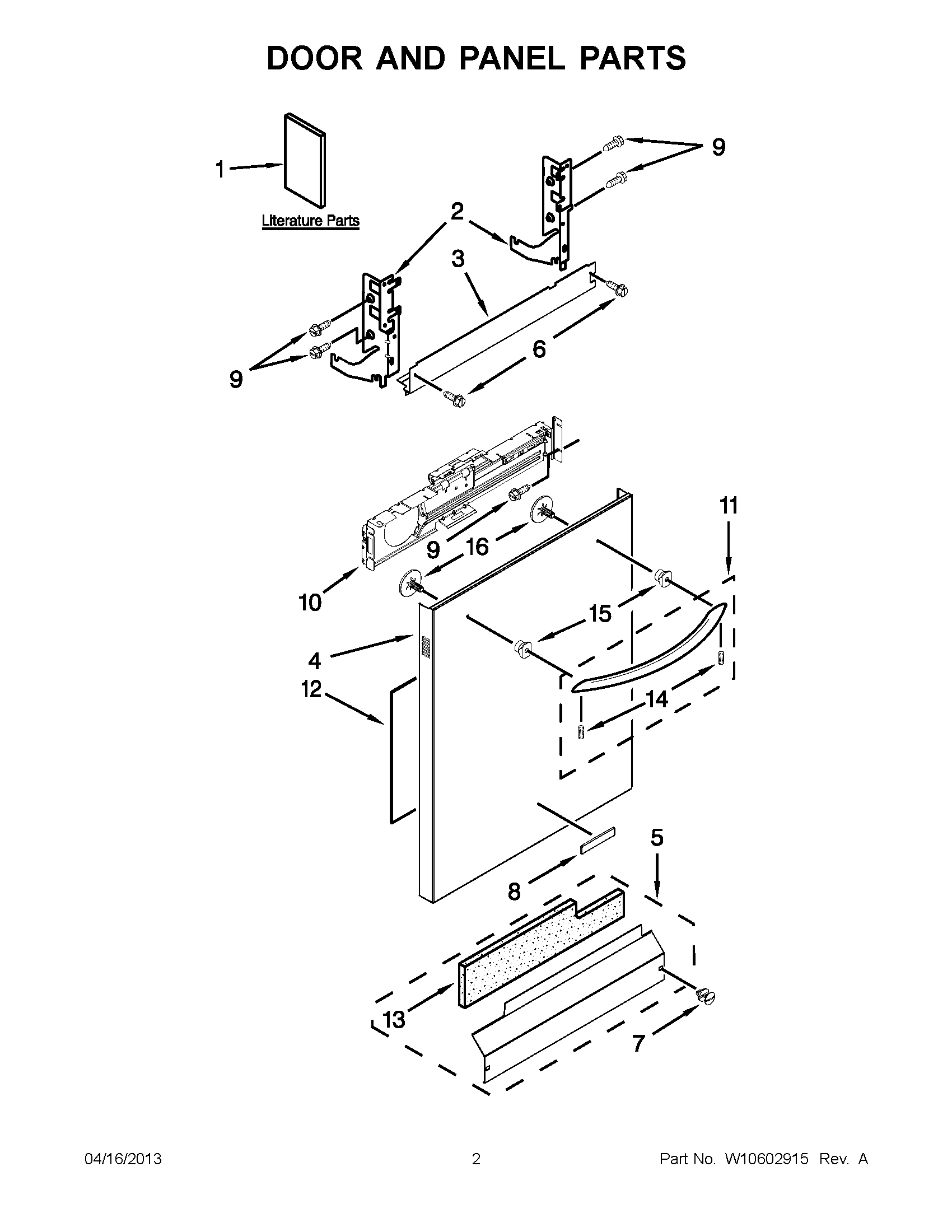

7WDT950SAYM2 01 – DOOR AND PANEL PARTS

7WDT950SAYM2 01 – DOOR AND PANEL PARTS

Written by

in

7WDT950SAYM2 01 – DOOR AND PANEL PARTS

Products

PositionProduct
1TECH SHEET, SPANISH
1USE & CARE GUIDE
1INSTRUCTIONS, INSTALLATION
2W11612302 Whirlpool Dishwasher Door Hinge
2W11612303 Whirlpool Door Hinge
3W10850371 Whirlpool Dishwasher Door Brace
4WPW10323562 Whirlpool Dishwasher Panel
5W10827631 Whirlpool Toe Panel
6WP489069 Whirlpool Compactor Screw
7WPW10503548 Whirlpool Dishwasher Panel Retainer Clip
8WPW10393264 Whirlpool Refrigerator Nameplate
9WP3400071 Whirlpool Screw
10WPW10350242 Whirlpool Dishwasher Control Bracket
11HANDLE (STAINLESS)
12WPW10073520 Whirlpool Dishwasher Insulation Pad
13SHIELD
14WP8534008 Whirlpool Screw
15W11157086 Whirlpool Dishwasher Door Handle Stud
16W10826179 Whirlpool Dishwasher Screw
