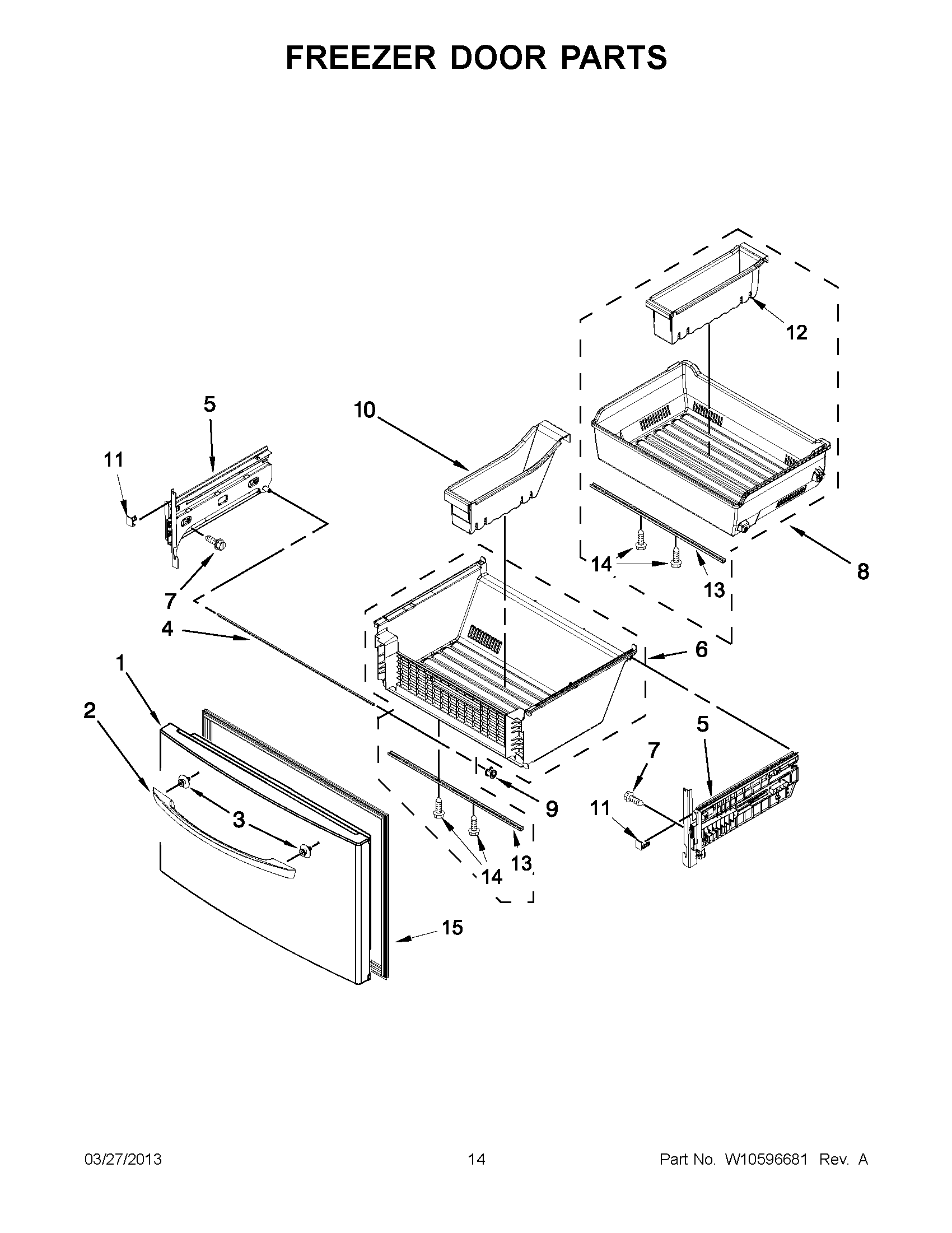

7WF736SDAM10 07 – FREEZER DOOR PARTS

Products

PositionProduct
1FREEZER DOOR (STAINLESS)
2HANDLE, DOOR (STAINLESS)
3WPW10661886 Whirlpool Refrigerator Door Handle Screw
4W10503521 Whirlpool Refrigerator Shaft Assembly
5W11668671 Whirlpool Refrigerator Left-Hand & Right-Hand Adapter Assembly
6PAN ASSEMBLY, LOWER
7WP67006908 Whirlpool Refrigerator Screw
8PAN ASSEMBLY, UPPER
9W10852685 Whirlpool Clip Assembly
10W10507444 Whirlpool Refrigerator Divider
11WPW10485089 Whirlpool Refrigerator Pan Stop
11WPW10485096 Whirlpool Refrigerator Pan Stop
12WPW10485654 Whirlpool Refrigerator Divider
13W11677723 Whirlpool Support
14WP489443 Whirlpool Refrigerator Screw
15GASKET-FIP GRAY
