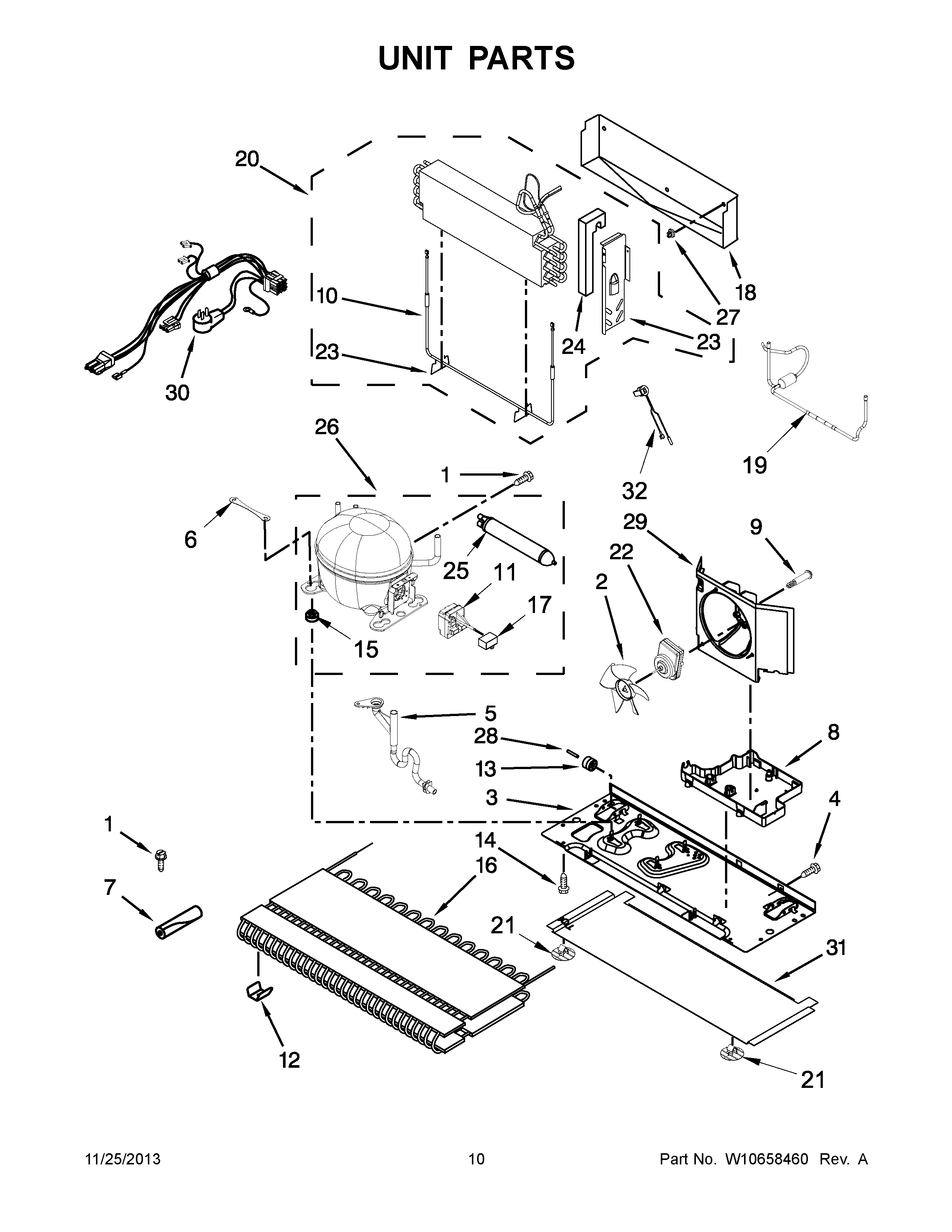

7WF736SDAM11 06 – UNIT PARTS

Products

Position	Product
NI	978030 Whirlpool Refrigerator Valve
NI	VALVE, ACCESS (5/8“)
NI	876764 Whirlpool Refrigerator Primary Valve
NI	978026 Whirlpool Refrigerator Primary Valve
NI	978027 Whirlpool Refrigerator Primary Valve
NI	CABINET (NOT A SERVICEABLE PART)
NI	WP978025 Whirlpool Refrigerator Valve
NI	VALVE, ACCESS (1/2“)
2	W10156818 Whirlpool Refrigerator Fan Blade
3	W10570074 Whirlpool Refrigerator Plate
4	67006425 Whirlpool Refrigerator Screw
5	W11712703 Whirlpool Extension Assembly
6	W10236396 Whirlpool Refrigerator Strap
7	SLEEVE
8	W10703218 Whirlpool Refrigerator Evaporator Tray
9	W10829281 Whirlpool Refrigerator Screw
10	HEATER
11	WPW10197428 Whirlpool Start Device
12	W10683556 Whirlpool Refrigerator Clip
13	WP67005149 Whirlpool Roller
14	Screw
15	W11715935 Whirlpool Dampener
16	W11673437 Whirlpool Condenser Assembly
17	WPW10350564 Whirlpool Refrigerator Freezer Capacitor
18	WPW10512220 Whirlpool Refrigerator Drip Tray
19	WPW10463542 Whirlpool Refrigerator Tube
20	WPW10608485 Whirlpool Refrigerator Evaporator
21	W10296661 Whirlpool Refrigerator Clip
22	WP2188874 Whirlpool Refrigerator Condenser Motor
23	W11673433 Whirlpool Clip
24	W10491355 Whirlpool Refrigerator Air Gasket
25	WPW10143759 Whirlpool Dryer Filter
26	WPW10466675 Whirlpool Refrigerator Compressor
27	W11544659 Whirlpool Refrigerator Screw
28	67006434 Whirlpool Axle Pin
29	WPW10406719 Whirlpool Refrigerator Shroud
30	POWER CORD
31	W10278140 Whirlpool Refrigerator Unit Cover
32	MOTOR-EVAP
