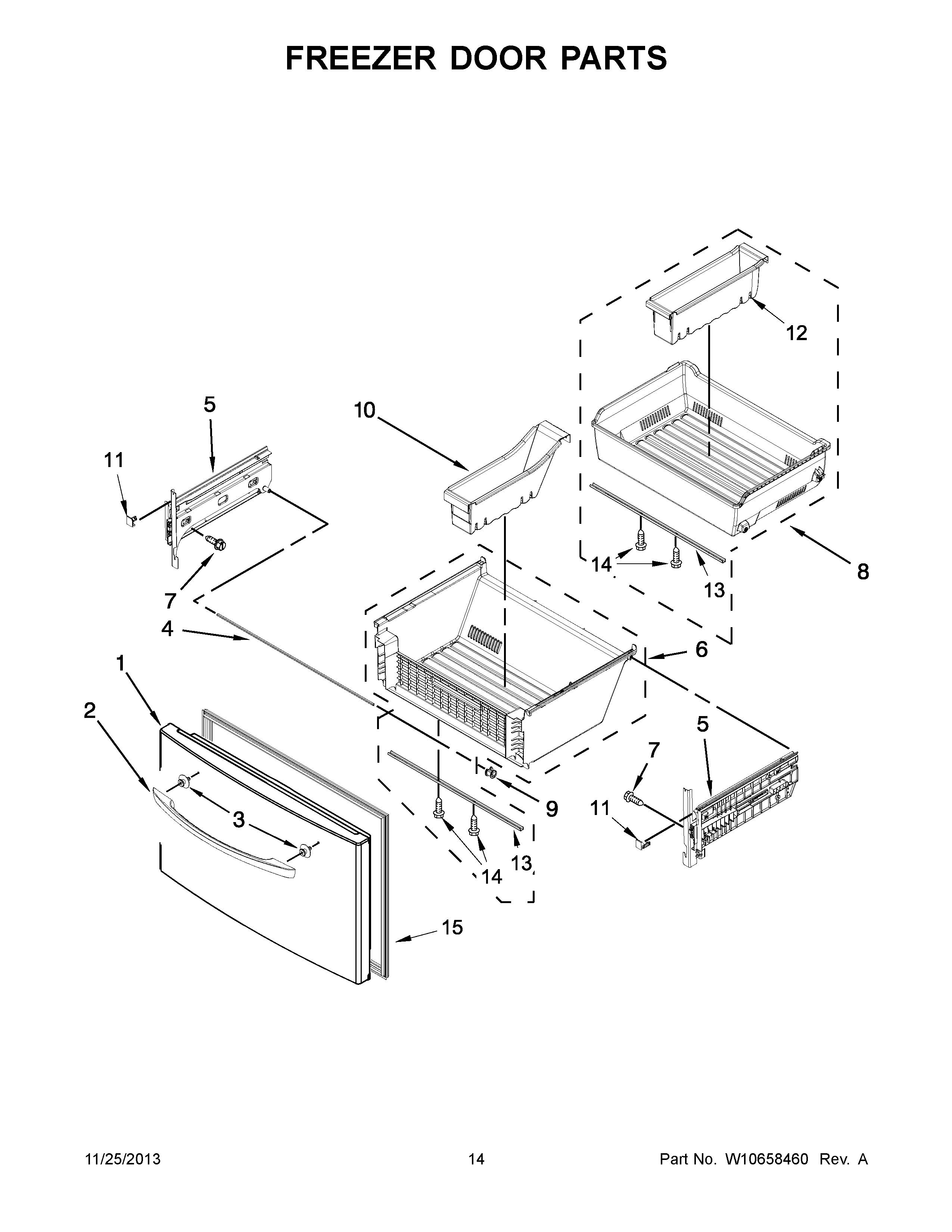

7WF736SDAM11 08 – FREEZER DOOR PARTS

7WF736SDAM11 08 – FREEZER DOOR PARTS

Written by

in

7WF736SDAM11 08 – FREEZER DOOR PARTS

Products

PositionProduct
1FREEZER DOOR (STAINLESS)
2W10827046 Whirlpool Door Handle
3WPW10661886 Whirlpool Refrigerator Door Handle Screw
4W10503521 Whirlpool Refrigerator Shaft Assembly
5W11668671 Whirlpool Refrigerator Left-Hand & Right-Hand Adapter Assembly
6W10590552 Whirlpool Freezer Bin
7WP67006908 Whirlpool Refrigerator Screw
8PAN ASSEMBLY, UPPER
9W10852685 Whirlpool Clip Assembly
10W10507444 Whirlpool Refrigerator Divider
11WPW10485089 Whirlpool Refrigerator Pan Stop
11WPW10485096 Whirlpool Refrigerator Pan Stop
12WPW10485654 Whirlpool Refrigerator Divider
13W11677723 Whirlpool Support
14WP489443 Whirlpool Refrigerator Screw
15GASKET-FIP GRAY
