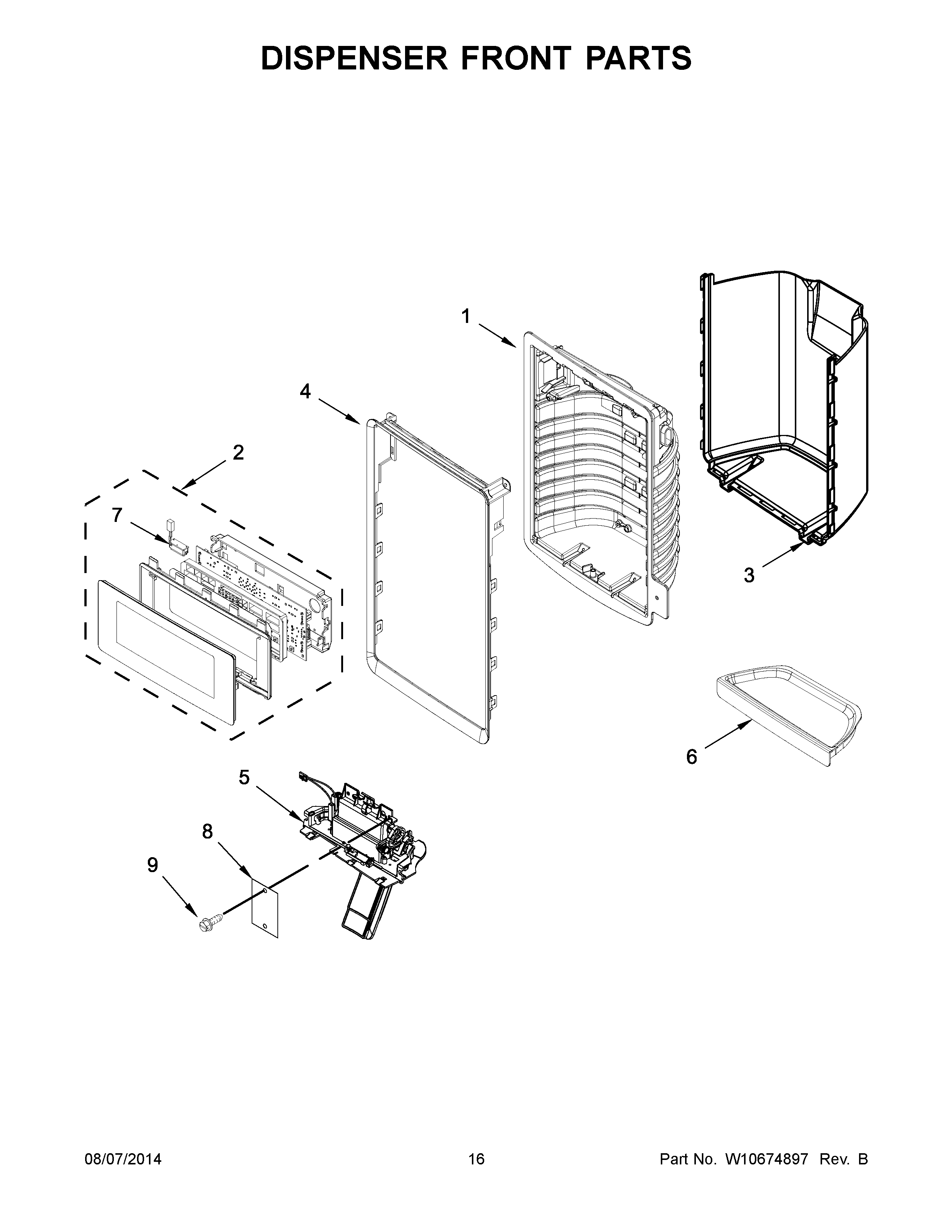

7WF736SDAM12 09 – DISPENSER FRONT PARTS

7WF736SDAM12 09 – DISPENSER FRONT PARTS

Written by

in

7WF736SDAM12 09 – DISPENSER FRONT PARTS

Products

PositionProduct
1CABINET (NOT A SERVICEABLE PART)
2W10864261-includeCORE Whirlpool W10864261 Refrigerator Electronic Control Board + Core
3FALSE WALL, DISPENSER (GREY)
4WPW10402180 Whirlpool Refrigerator Trim
5WPW10616134 Whirlpool Refrigerator Ice Door
6WPW10606639 Whirlpool Refrigerator Drip Tray
7W11290115 Whirlpool Refrigerator Light
8SHIELD, SEPARATOR
9WPW10272364 Whirlpool Refrigerator Screw
