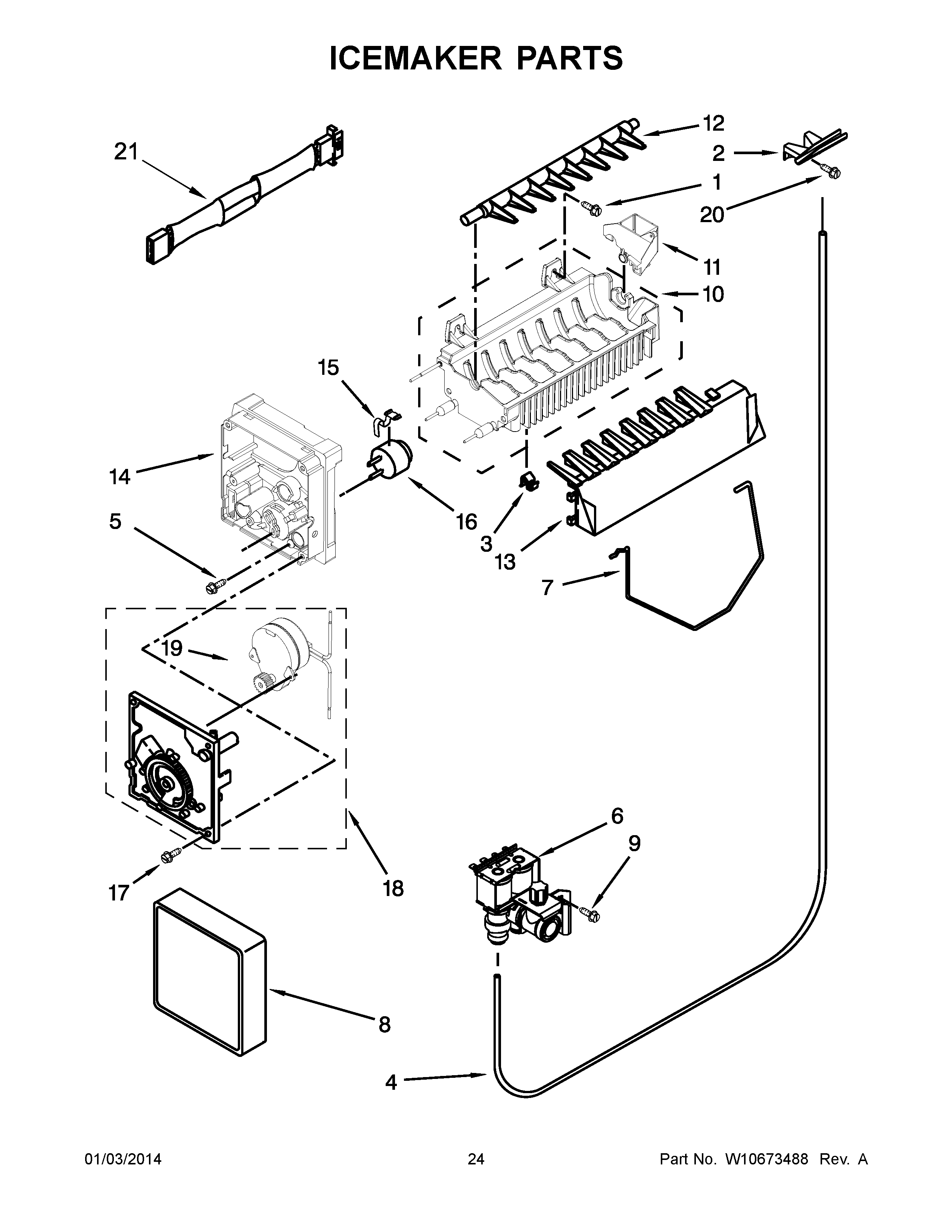

7WRS22FDBF00 13 – ICEMAKER PARTSadmin2025-04-26T09:49:34+00:007WRS22FDBF00 13 – ICEMAKER PARTS ProductsPositionProduct1WP488163 Whirlpool Refrigerator Screw2W11505385 Whirlpool Refrigerator Chute3WP628379 Whirlpool Refrigerator Clip4W10823511 Whirlpool Refrigerator Water Tube5W10001280 Whirlpool Refrigerator Screw6WPW10179146 Whirlpool Refrigerator Water Inlet Valve7W11342242 Whirlpool Refrigerator Ice Level Arm8WPW10289690 Whirlpool Ice Maker Cover9WPW10141625 Whirlpool Refrigerator Screw Assembly10WPW10300025 Whirlpool Refrigerator Ice Mold11W11676540 Whirlpool Refrigerator Cup Fill12W10318914 Whirlpool Refrigerator Ejector Arm13WPW10122563 Whirlpool Refrigerator Stripper Arm14WP2195914 Whirlpool Refrigerator Ice Maker Housing15WP2315522 Whirlpool Refrigerator Clip16WP2321258 Whirlpool Refrigerator Bimetallic Defrost Assembly17W10001240 Whirlpool Refrigerator Screw188201515 Whirlpool Refrigerator Motor and Gear Module Kit19CABINET (NOT A SERVICEABLE PART)21W10838084 Whirlpool Refrigerator Wire Harness100WPW10300022 Whirlpool Refrigerator Ice Maker Assembly
