7WRS22FDBF02 07 – REFRIGERATOR DOOR PARTS

7WRS22FDBF02 07 – REFRIGERATOR DOOR PARTS

Written by

in

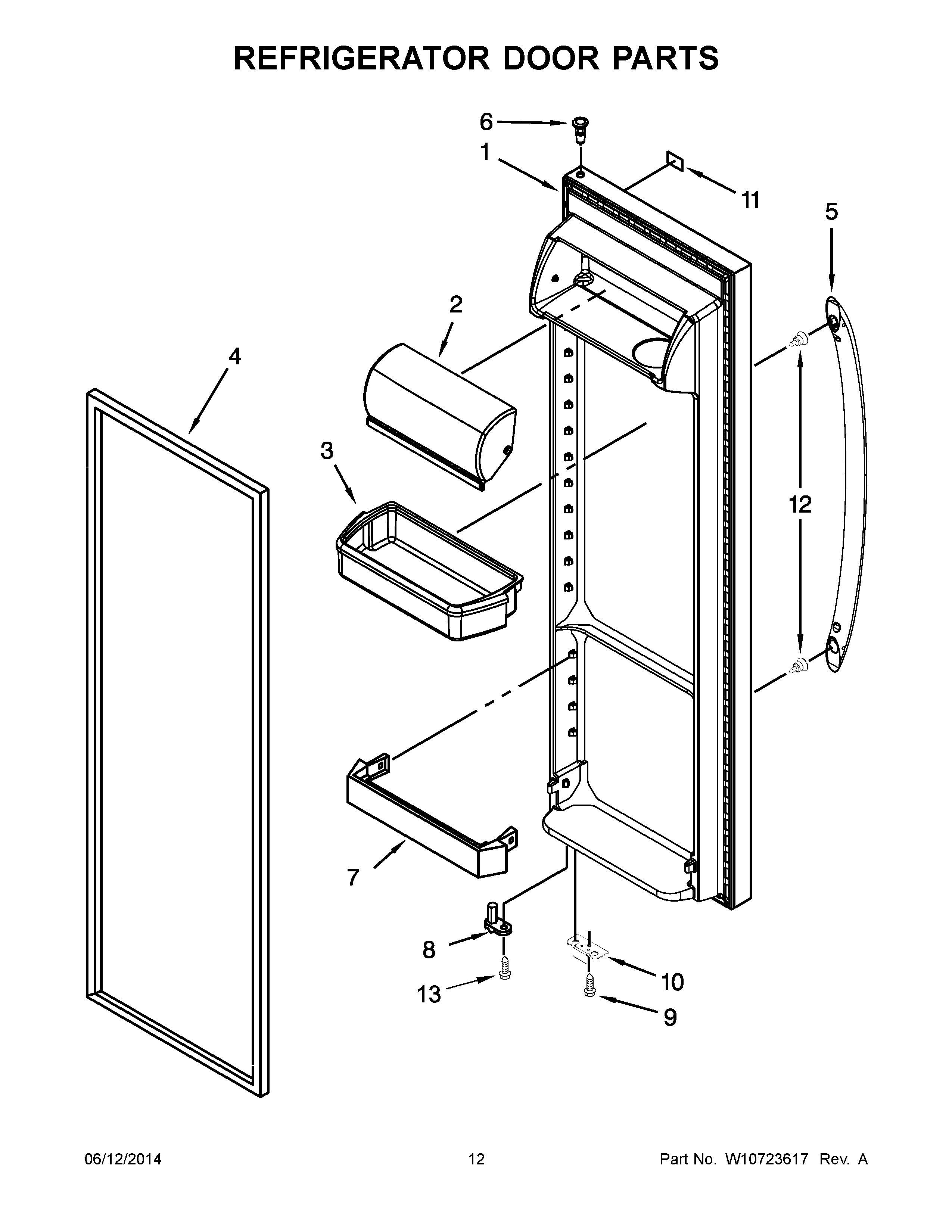

7WRS22FDBF02 07 – REFRIGERATOR DOOR PARTS

Products

PositionProduct
1REFRIGERATOR DOOR (INCLUDES ITEM 4) (SPARKLE STEEL)
1REFRIGERATOR DOOR (INCLUDES ITEM 4) (WHITE)
2WP2256101 Whirlpool Dairy Door
3WPW10321304 Whirlpool Refrigerator Door Shelf Bin
42159073 Whirlpool Refrigerator Door Gasket
4W10136732 Whirlpool Refrigerator FIP Gasket
5WPW10670421 Whirlpool Refrigerator Handle
5WPW10268056 Whirlpool Refrigerator Door Handle
6WP2182181 Whirlpool Refrigerator Thimble
7WP2309941 Whirlpool Refrigerator Door Bar Trim
8WP2182179 Whirlpool Cam Closer
9WP489483 Whirlpool Screw
10BRACKET, DOOR STOP (SILVER)
11WPW10511972 Whirlpool Refrigerator Nameplate
11WPW10511975 Whirlpool Refrigerator Nameplate
12WPW10661886 Whirlpool Refrigerator Door Handle Screw
13WP3400012 Whirlpool Refrigerator Screw
