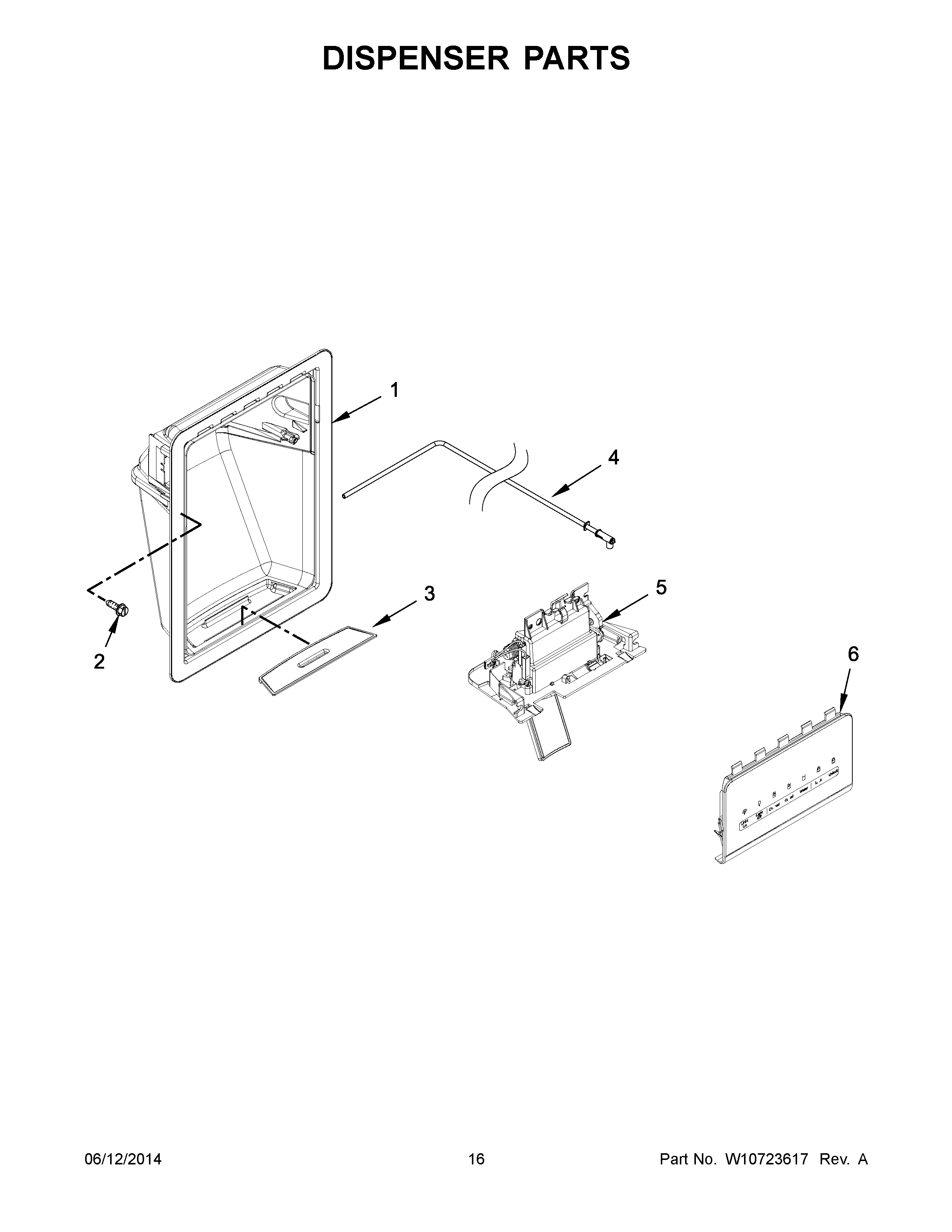

7WRS22FDBF02 09 – DISPENSER PARTS

7WRS22FDBF02 09 – DISPENSER PARTS

Written by

in

7WRS22FDBF02 09 – DISPENSER PARTS

Products

PositionProduct
1CABINET (NOT A SERVICEABLE PART)
2WP8281163 Whirlpool Refrigerator Screw
3WPW10397395 Whirlpool Refrigerator Grille
3WPW10397392 Whirlpool Refrigerator Grille
4WPW10397435 Whirlpool Refrigerator Fitting
5WPW10616142 Whirlpool Refrigerator Ice Door
5W11195669 Whirlpool Dispenser Funnel Frame
6WPW10397956-includeCORE Whirlpool WPW10397956 Refrigerator Electronic Control Board + Core
