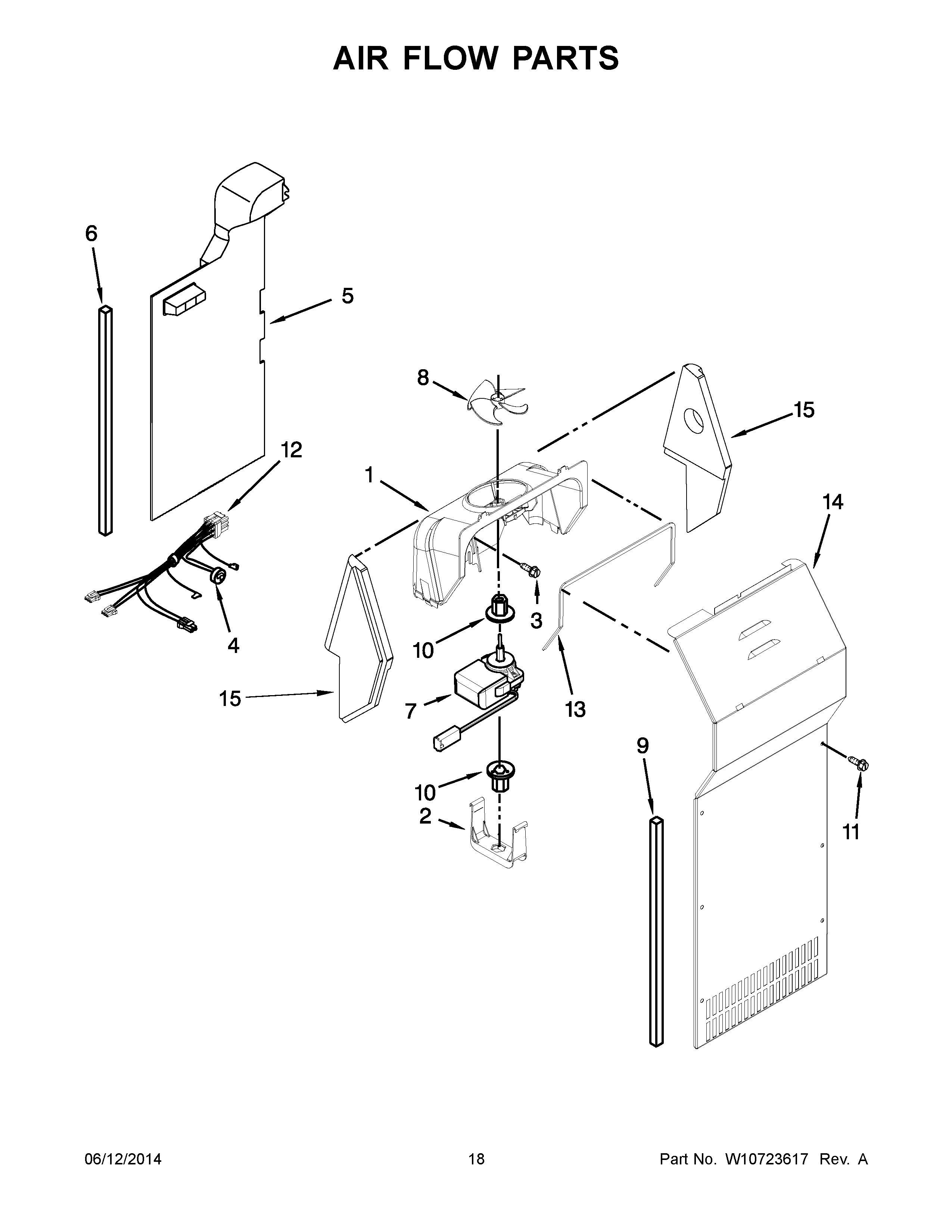

7WRS22FDBF02 10 – AIR FLOW PARTS

Products

Position	Product
1	W11254898 Whirlpool Refrigerator Scroll Fan
2	W11700295 Whirlpool Refrigerator Retainer
3	WP489478 Whirlpool Refrigerator Screw
4	WPW10225581 Whirlpool Refrigerator Defrost Thermostat
5	W10166220 Whirlpool Refrigerator Air Duct
6	4388500 Whirlpool Refrigerator Gasket
7	WPW10236142 Whirlpool Evaporator Fan Motor
8	WP2169142 Whirlpool Fan Blade
9	WP2304241 Whirlpool Refrigerator Gasket
10	WP2176759 Whirlpool Refrigerator Grommet
11	WP693995 Whirlpool Screw
12	W11225843 Whirlpool Refrigerator Wire Harness
13	WP2155789 Whirlpool Refrigerator Gasket
14	COVER, EVAPORATOR
15	4388358 Whirlpool Refrigerator Support Bracket
