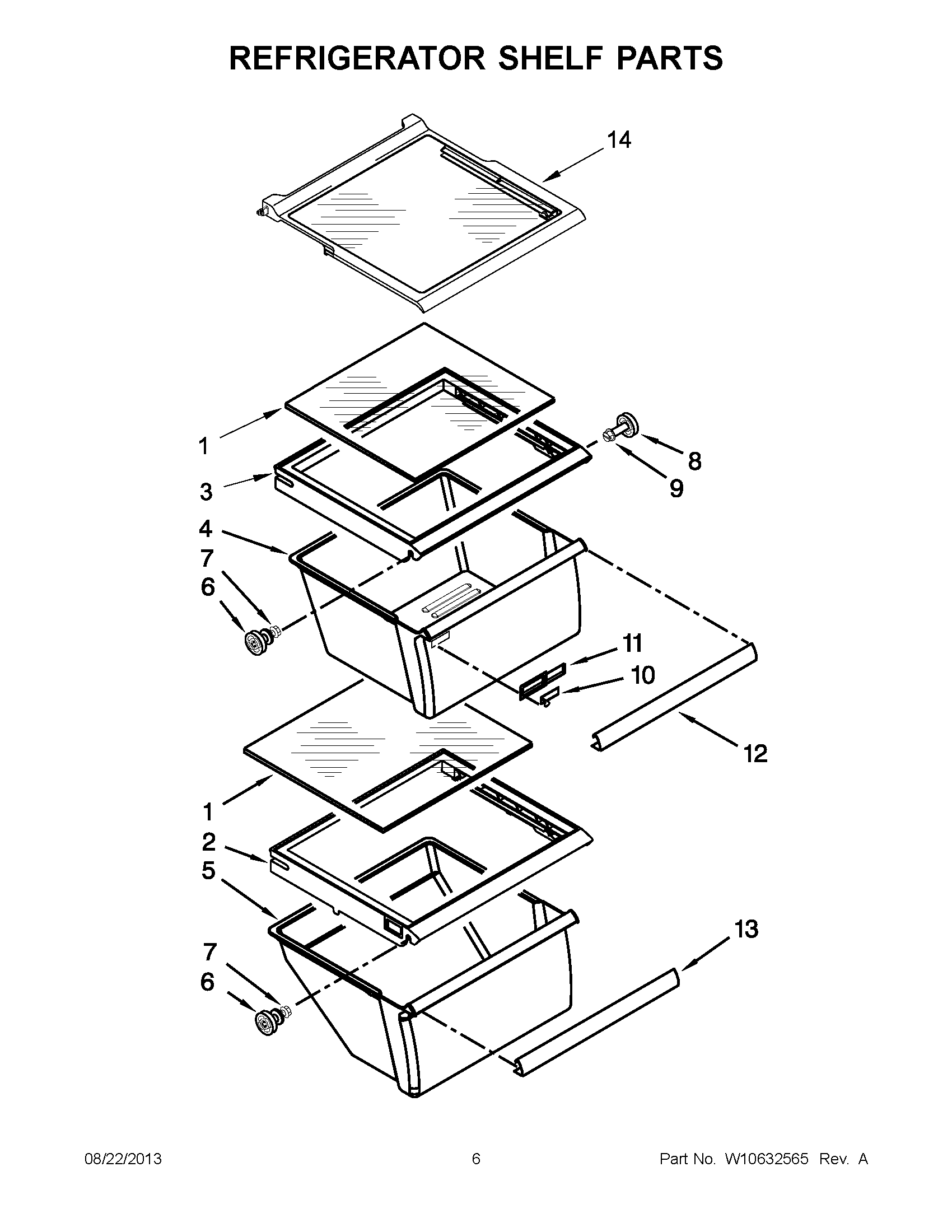

7WRS22FDBW00 04 – REFRIGERATOR SHELF PARTS

7WRS22FDBW00 04 – REFRIGERATOR SHELF PARTS

Written by

in

7WRS22FDBW00 04 – REFRIGERATOR SHELF PARTS

Products

PositionProduct
1W10864399 Whirlpool Glass Shelf
2W10508993 Whirlpool Refrigerator Cover Pan
3COVER, PAN
4WPW10178772 Whirlpool Crisper Pan
5MEAT PAN
6W11223328 Whirlpool Refrigerator Shelf Stud
7WP3-24004-109 Whirlpool Refrigerator Screw
8W11527119 Whirlpool Refrigerator Shelf Stud
9WPW10191952 Whirlpool Refrigerator Screw
10WP2179342 Whirlpool Refrigerator Slide
11WP2179343 Whirlpool Refrigerator Control Body
13WP2179234 Whirlpool Refrigerator Pan Trim
14SHELF-GLASS
