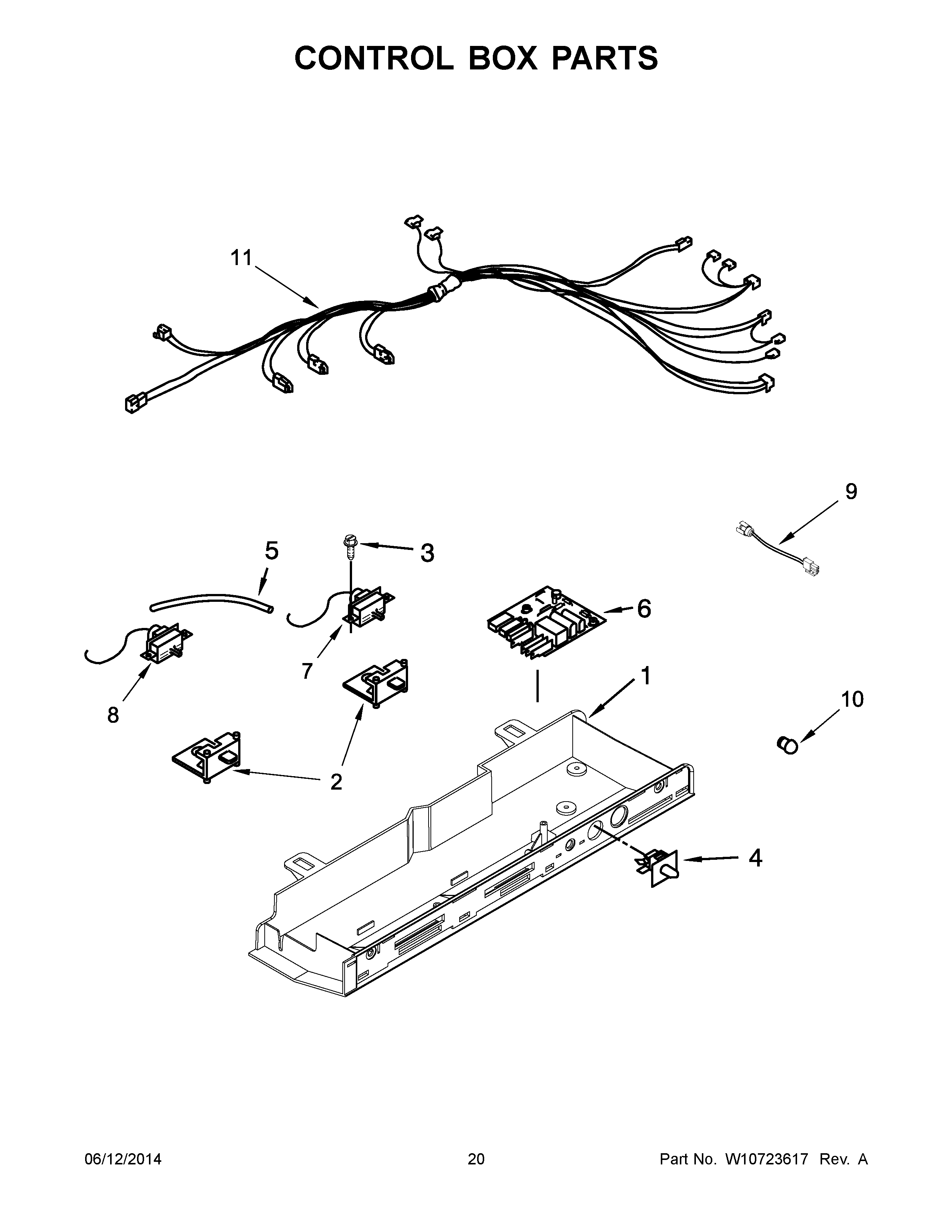

7WRS22FDBW02 11 – CONTROL BOX PARTS

Products

Position	Product
1	CONTROL BOX
2	2161466 Whirlpool Refrigerator Slide
3	2006254 Whirlpool Refrigerator Screw
4	WP2149705 Whirlpool Refrigerator Door Switch
5	WP2196003 Whirlpool Refrigerator Bar Riser
6	WPW10366605-includeCORE Whirlpool WPW10366605 Refrigerator Electronic Control Board + Core
7	WPW10320574 Whirlpool Thermostat
8	WP2321289 Whirlpool Refrigerator Thermostat
9	W10853646 Whirlpool Indicator Light
10	COVER, LIGHT LENS
11	HARNESS, CONTROL BOX
