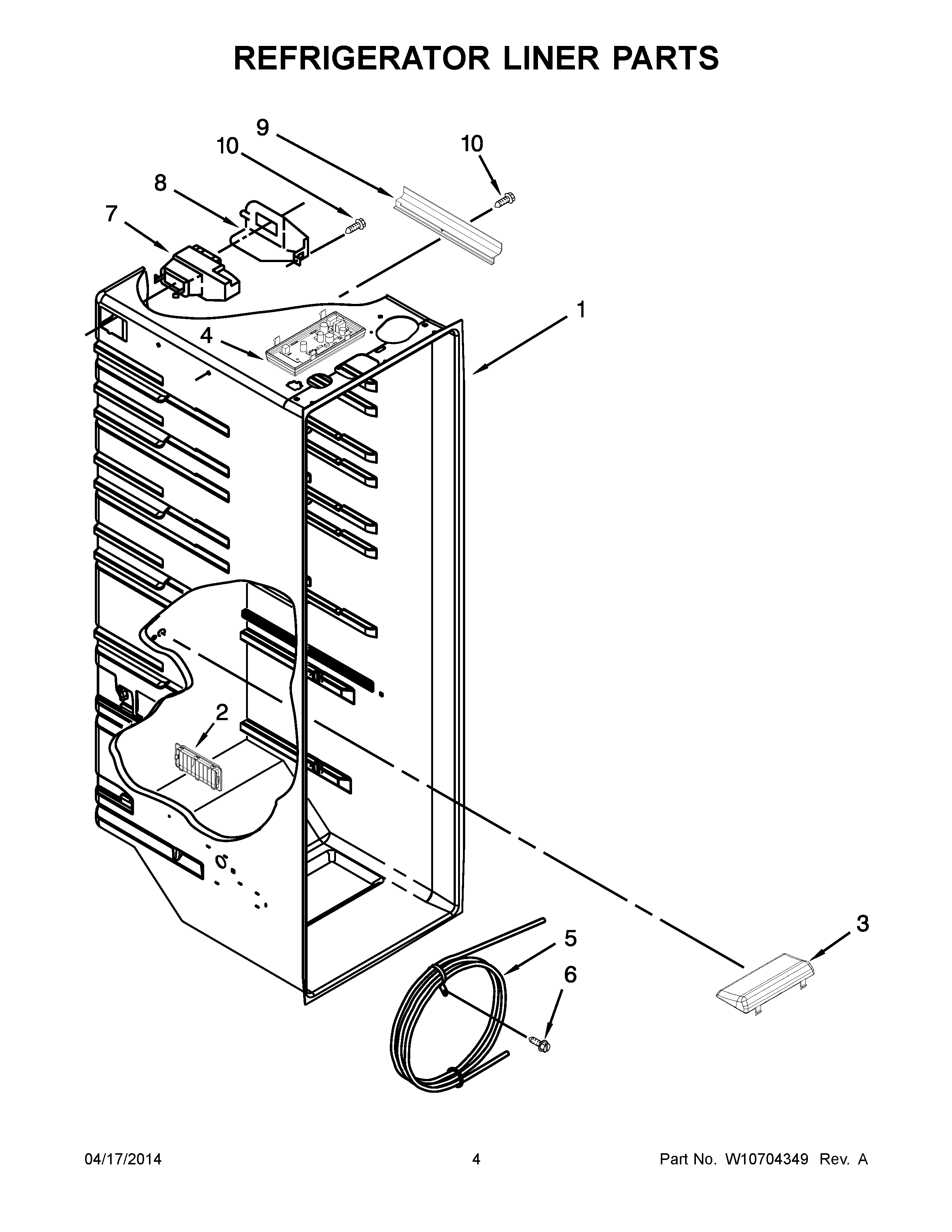

7WRS22FEBF00 03 – REFRIGERATOR LINER PARTS

Written by

Products

Position	Product
1	CABINET (NOT A SERVICEABLE PART)
2	LOUVER
3	WPW10515057 Whirlpool Light Board
4	WPW10515058 Whirlpool LED Light
5	RESERVOIR
6	Screw (2)
7	WPW10151372 Whirlpool Refrigerator Diffuser
8	WP2212240 Whirlpool Refrigerator Cover
9	2150331 Whirlpool Refrigerator Wire Cover
10	W10759522 Whirlpool Screw
