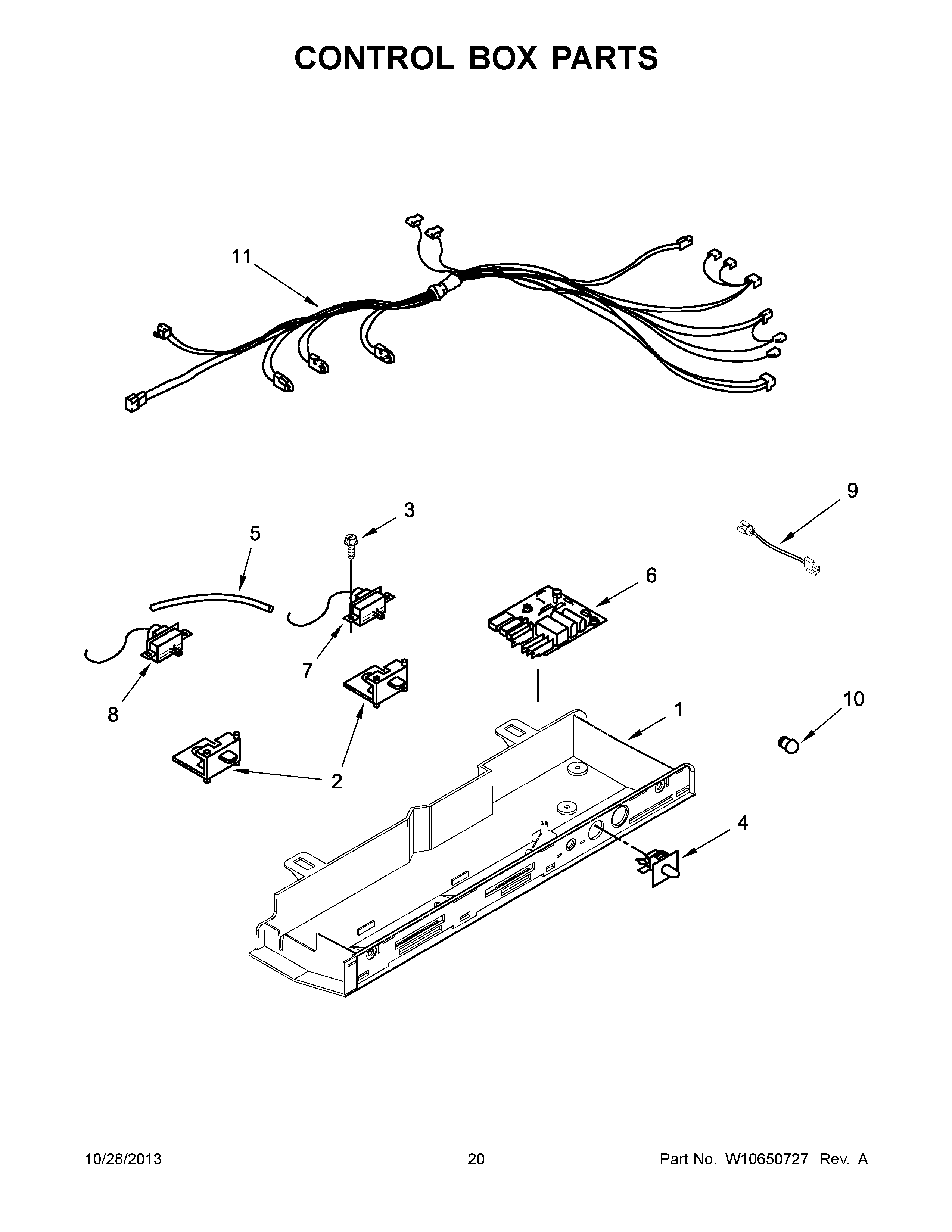

7WRS25FDBF00 11 – CONTROL BOX PARTS

Products

PositionProduct
1CONTROL BOX
22161466 Whirlpool Refrigerator Slide
32006254 Whirlpool Refrigerator Screw
4WP2149705 Whirlpool Refrigerator Door Switch
5WP2196003 Whirlpool Refrigerator Bar Riser
6WPW10366605-includeCORE Whirlpool WPW10366605 Refrigerator Electronic Control Board + Core
7WPW10320574 Whirlpool Thermostat
8WP2321289 Whirlpool Refrigerator Thermostat
9W10853646 Whirlpool Indicator Light
10COVER, LIGHT LENS
11HARNESS, CONTROL BOX
