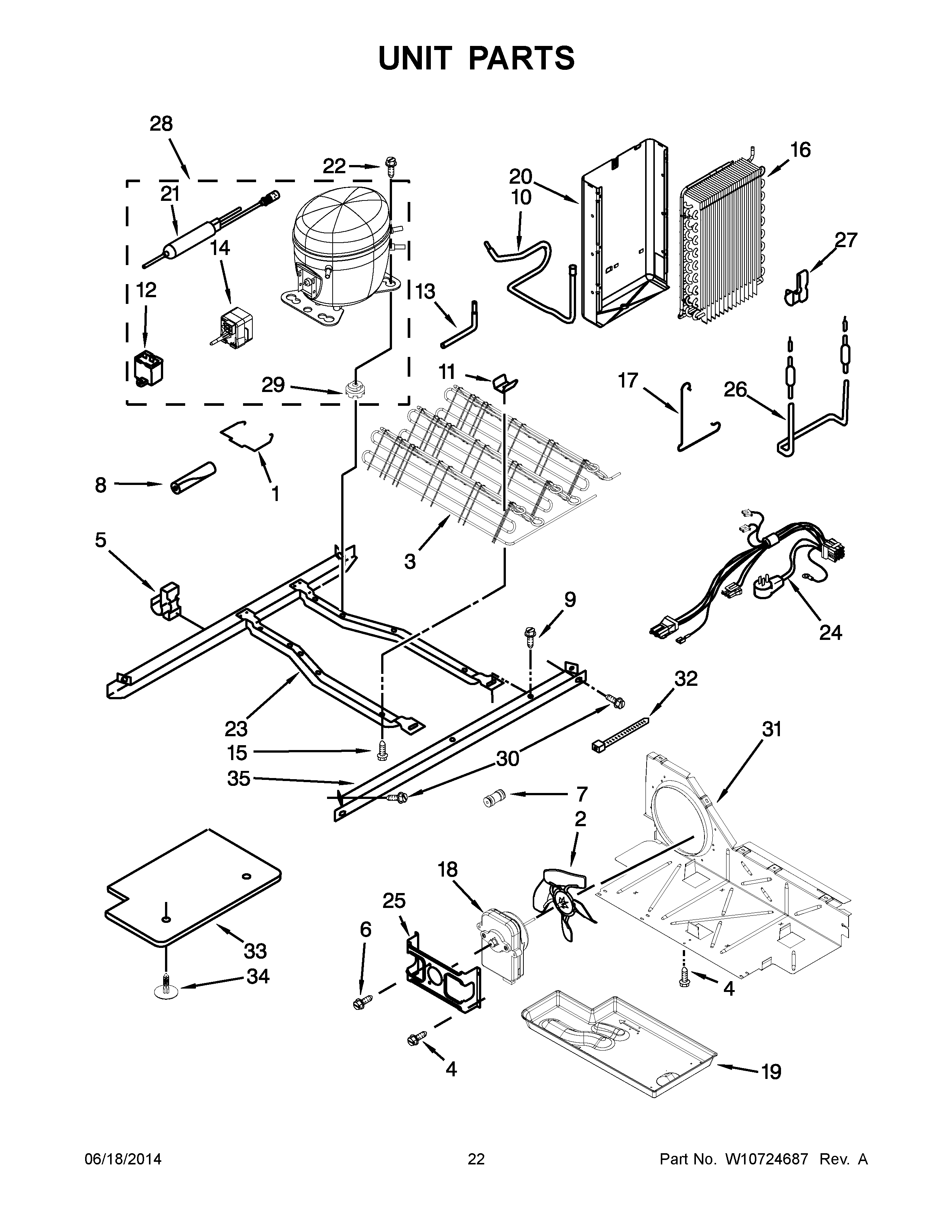

7WRS25FDBF02 12 – UNIT PARTS

Products

Position	Product
NI	CABINET (NOT A SERVICEABLE PART)
NI	VALVE, ACCESS (1/2“)
NI	WP978025 Whirlpool Refrigerator Valve
NI	978030 Whirlpool Refrigerator Valve
NI	978027 Whirlpool Refrigerator Primary Valve
NI	978026 Whirlpool Refrigerator Primary Valve
NI	876764 Whirlpool Refrigerator Primary Valve
NI	VALVE, ACCESS (5/8“)
1	W10204187 Whirlpool Refrigerator Retainer
2	W10156818 Whirlpool Refrigerator Fan Blade
3	2324712 Whirlpool Refrigerator Condenser
4	WP489464 Whirlpool Refrigerator Screw
5	W10812039 Whirlpool Clip
6	WP8533993 Whirlpool Refrigerator Screw
7	WP2300868 Whirlpool Refrigerator Fitting
8	SLEEVE
9	WP489427 Whirlpool Refrigerator Screw
10	WP2205765 Whirlpool Refrigerator Tube
11	W10683556 Whirlpool Refrigerator Clip
12	CAPACITOR
13	W10858105 Whirlpool Refrigerator Tube
14	WPW10189190 Whirlpool Start Device
15	W11544659 Whirlpool Refrigerator Screw
16	WP2188823 Whirlpool Refrigerator Evaporator
18	WP2188874 Whirlpool Refrigerator Condenser Motor
19	WPW10614158 Whirlpool Refrigerator Evaporator Tray
20	W10194475 Whirlpool Refrigerator Shield
21	WPW10143759 Whirlpool Dryer Filter
22	SCREW
23	W10196321 Whirlpool Refrigerator Frame
24	UNIT, HARNESS
25	WP2181929 Whirlpool Refrigerator Bracket
26	WP2323198 Whirlpool Refrigerator Heater
27	Clamp
28	W10139462 Whirlpool Refrigerator Compressor
29	WPW10169124 Whirlpool Refrigerator Grommet
30	489340 Whirlpool Refrigerator Screw
31	BAFFLE, AIR
32	WPW10339879 Whirlpool Wire Tie
33	UNIT COVER, BOTTOM
34	489396 Whirlpool Refrigerator Clip
35	W10196313 Whirlpool Refrigerator Rail Unit
