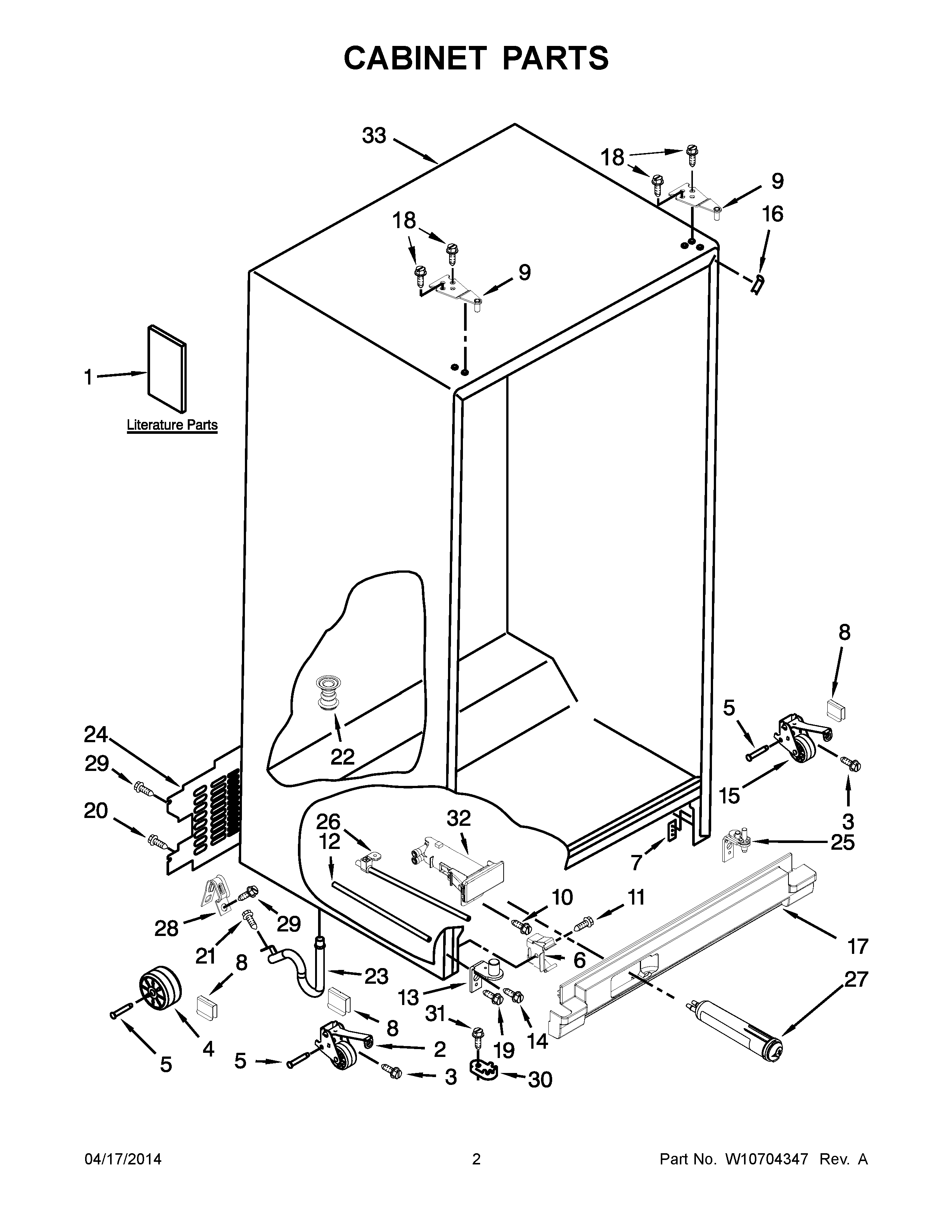

7WRS25FEBF00 02 – CABINET PARTS

7WRS25FEBF00 02 – CABINET PARTS

Written by

in

7WRS25FEBF00 02 – CABINET PARTS

Products

PositionProduct
1USE & CARE GUIDE
1ENERGY LABEL
1SERVICE & WIRING SHEET
2WPW10304660 Whirlpool Wheel Assembly
3WP489427 Whirlpool Refrigerator Screw
4WPW10475495 Whirlpool Roller Assembly
5W11594405 Whirlpool Axle
6WP2155013 Whirlpool Refrigerator Clip
7WP2304249 Whirlpool Refrigerator Plate
8WP2174706 Whirlpool Refrigerator Pin Hitch
9W11164088 Whirlpool Refrigerator Door Hinge
10WP489500 Whirlpool Refrigerator Screw
11WP489128 Whirlpool Refrigerator Screw
12WPW10350006 Whirlpool Refrigerator Water Tube
13W10646418 Whirlpool Refrigerator Door Hinge
14WP489497 Whirlpool Screw
15WPW10304659 Whirlpool Wheel Assembly
16W10851579 Whirlpool Refrigerator Filler
17GRILLE (GREY)
18WPW10308751 Whirlpool Screw
19W10856122 Whirlpool Refrigerator Screw
20WP488488 Whirlpool Refrigerator Screw
21WP489464 Whirlpool Refrigerator Screw
22W11566763 Whirlpool Fitting
23W11512417 Whirlpool Drain Connector
24Cover, Unit
25HINGE BOTTOM RC
26WPW10350007 Whirlpool Refrigerator Water Tube
27EDR1RXD1 Whirlpool EveryDrop® Filter 1 Refrigerator Water
28W11234470 Whirlpool Refrigerator Clamp
30WP2223751 Whirlpool Refrigerator Door Cam
31WP489483 Whirlpool Screw
32HOUSING-WATER FILTER
33CABINET (NOT A SERVICEABLE PART)
