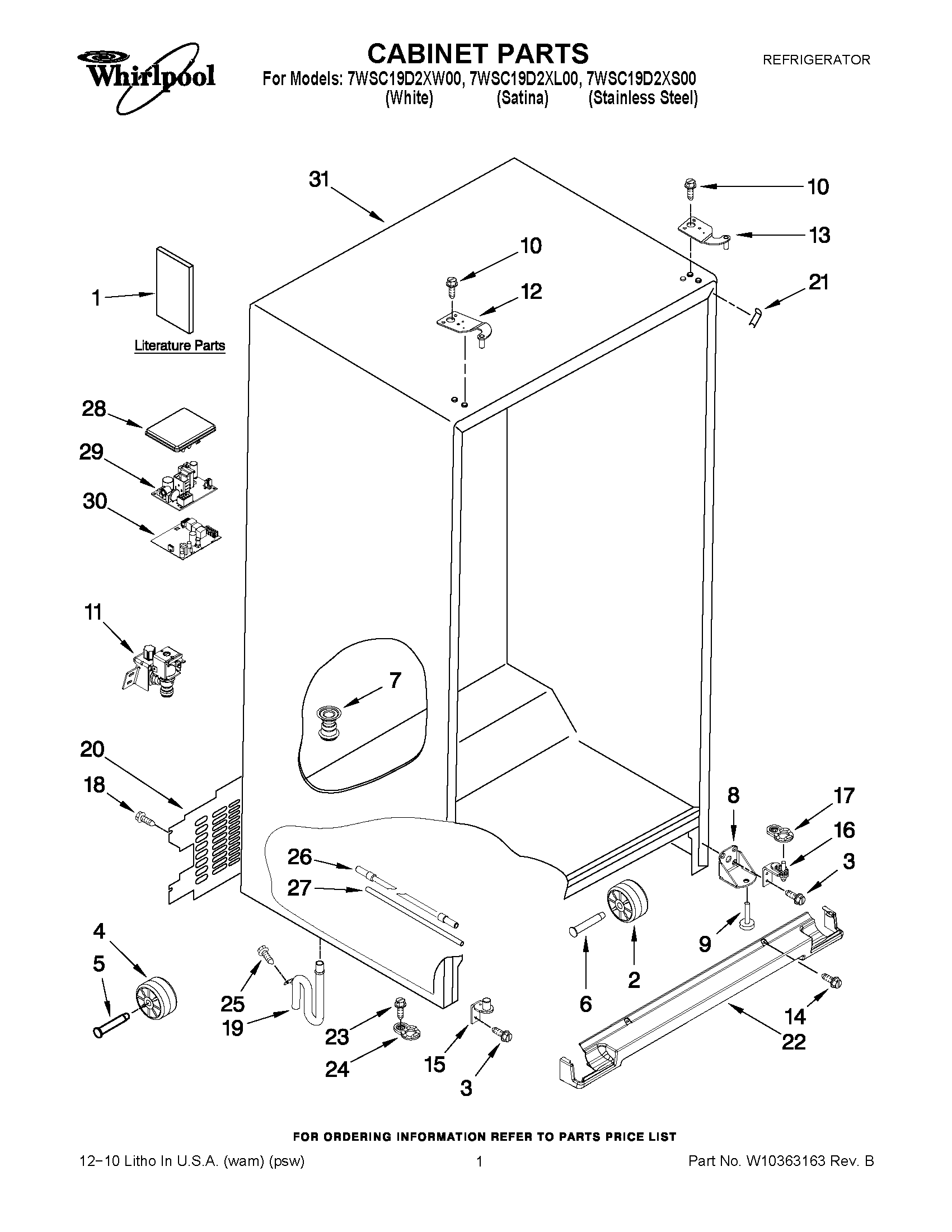

7WSC19D2XL00 01 – CABINET PARTS

Products

Position	Product
1	SERVICE & WIRING SHEET
1	ENERGY LABEL
1	USE & CARE GUIDE
2	WPW10475495 Whirlpool Roller Assembly
3	WPW10297485 Whirlpool Refrigerator Screw
4	WP67005149 Whirlpool Roller
5	67006434 Whirlpool Axle Pin
6	WPW10285005 Whirlpool Refrigerator Rivet
7	W10247979 Whirlpool Refrigerator Fitting
8	W11266052 Whirlpool Refrigerator Bracket
9	WPW10141622 Whirlpool Leveler
10	SCREW, HINGE (WHITE)
10	WPW10308751 Whirlpool Screw
11	WPW10279876 Whirlpool Inlet Valve
12	W10901051 Whirlpool Refrigerator Door Hinge
12	W10901052 Whirlpool Refrigerator Door Hinge
13	W11568758 Whirlpool Top Hinge
13	W11573587 Whirlpool Refrigerator Door Hinge
14	WPW10142283 Whirlpool Refrigerator Screw
15	W11293373 Whirlpool Refrigerator Door Hinge
15	W10249941 Whirlpool Refrigerator Door Hinge
16	BOTTOM HINGE (RC) (BLACK)
17	W10500001 Whirlpool Refrigerator Door Hinge
17	W10500000 Whirlpool Refrigerator Door Hinge
18	SCREW
19	W10280082 Whirlpool Extension
20	COVER, UNIT
21	12587703W Whirlpool Refrigerator Cover
21	WP12587703AP Whirlpool Refrigerator Filler
22	WPW10713158 Whirlpool Refrigerator Grille
22	WPW10713160 Whirlpool Refrigerator Grille
23	WP489483 Whirlpool Screw
24	W10876198 Whirlpool Refrigerator Door Cam
25	WP489464 Whirlpool Refrigerator Screw
26	WPW10279882 Whirlpool Water Line
27	WPW10279884 Whirlpool Water Tube
28	LID, HV BOX
29	WPW10235491-includeCORE Whirlpool WPW10235491 Refrigerator Electronic Control Board + Core
30	WPW10356039-includeCORE Whirlpool WPW10356039 Refrigerator Electronic Control Board + Core
31	CABINET (NOT A SERVICEABLE PART)
