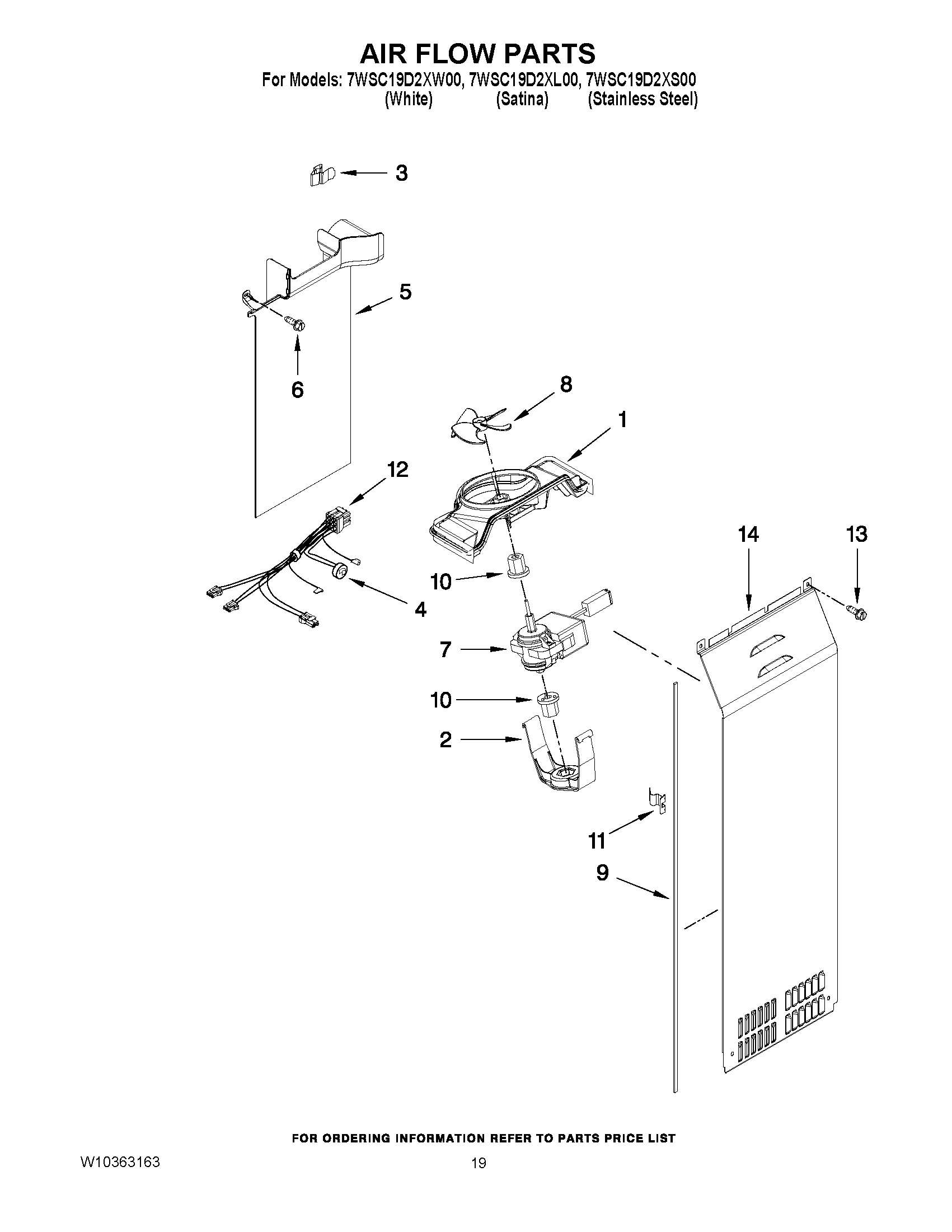

7WSC19D2XL00 11 – AIR FLOW PARTS

7WSC19D2XL00 11 – AIR FLOW PARTS

Written by

in

7WSC19D2XL00 11 – AIR FLOW PARTS

Products

PositionProduct
1W10251462 Whirlpool Refrigerator Scroll Fan
2W11671527 Whirlpool Retainer Assembly
32215823 Whirlpool Refrigerator Clip
4W11590570 Whirlpool Bimetal Defrost
5W10251474 Whirlpool Refrigerator Air Duct
6WP489478 Whirlpool Refrigerator Screw
74389144 Whirlpool Refrigerator Evaporator Fan Motor
8WP2169142 Whirlpool Fan Blade
9W10240370 Whirlpool Refrigerator Gasket
10WP2176759 Whirlpool Refrigerator Grommet
11W11232019 Whirlpool Refrigerator Clip
12HARNESS, FAN EVAPORATOR (INCLUDES No.4)
13WP693995 Whirlpool Screw
14W10239739 Whirlpool Refrigerator Evaporator Cover
