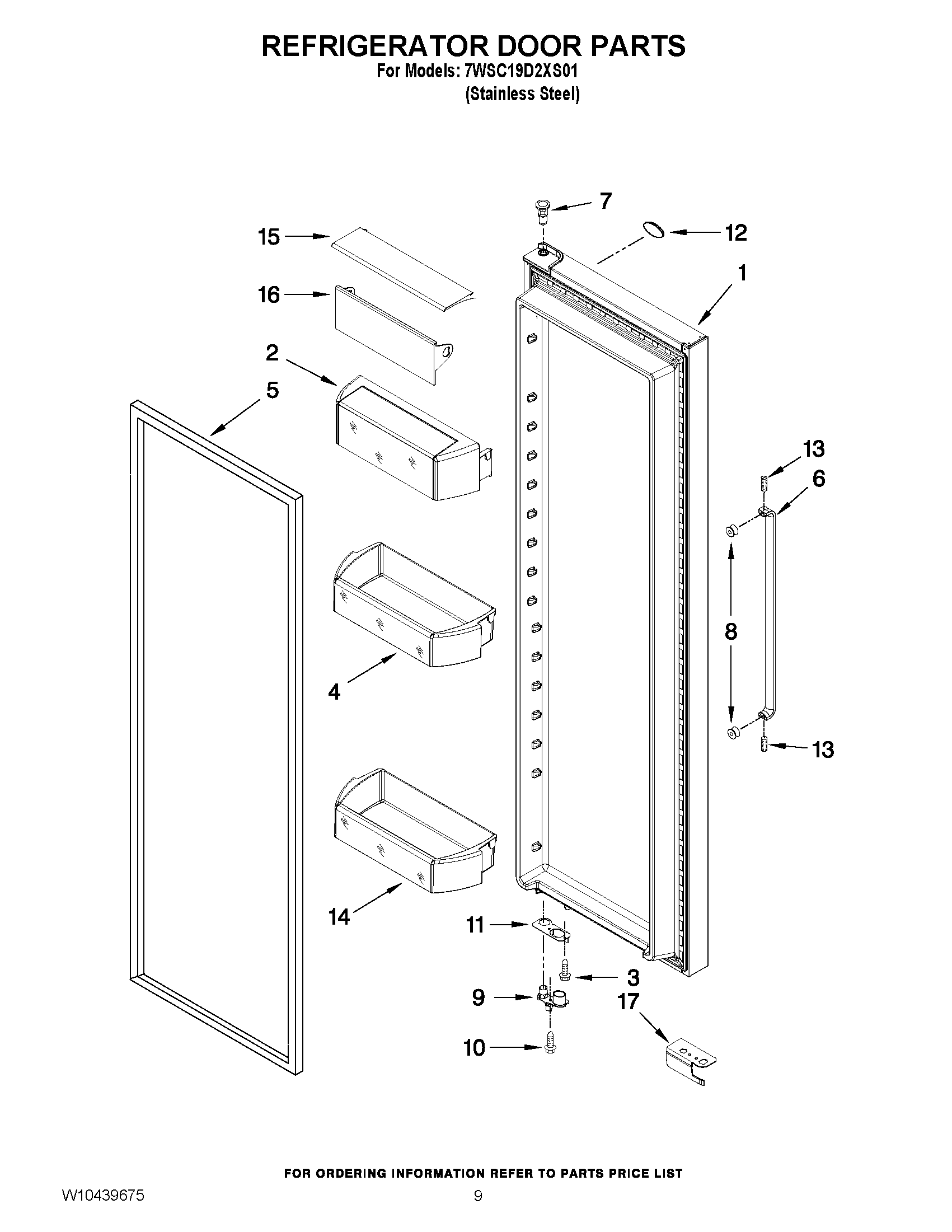

7WSC19D2XS01 06 – REFRIGERATOR DOOR PARTS

Products

Position	Product
1	REFRIGERATOR DOOR (INCLUDES ITEM 5) (STAINLESS)
2	WPW10324760 Whirlpool Refrigerator Door Shelf Bin
3	SCREW
4	WPW10296855 Whirlpool Refrigerator Door Bin
5	WPW10249912 Whirlpool Refrigerator FIP Gasket
6	HANDLE
7	WP2182181 Whirlpool Refrigerator Thimble
8	WPW10170540 Whirlpool Screw
9	WPW10257201 Whirlpool Door Closing Cam
10	WPW10296804 Whirlpool Refrigerator Screw
11	W11037957 Whirlpool Refrigerator Bracket
12	WP2213265 Whirlpool Refrigerator Nameplate
13	SCREW
14	WPW10335220 Whirlpool Refrigerator Cantilever Bin
15	WPW10316883 Whirlpool Refrigerator Door Compressor
16	WPW10316885 Whirlpool Refrigerator Compressor Door
17	W10257216 Whirlpool Refrigerator Wire Cover
