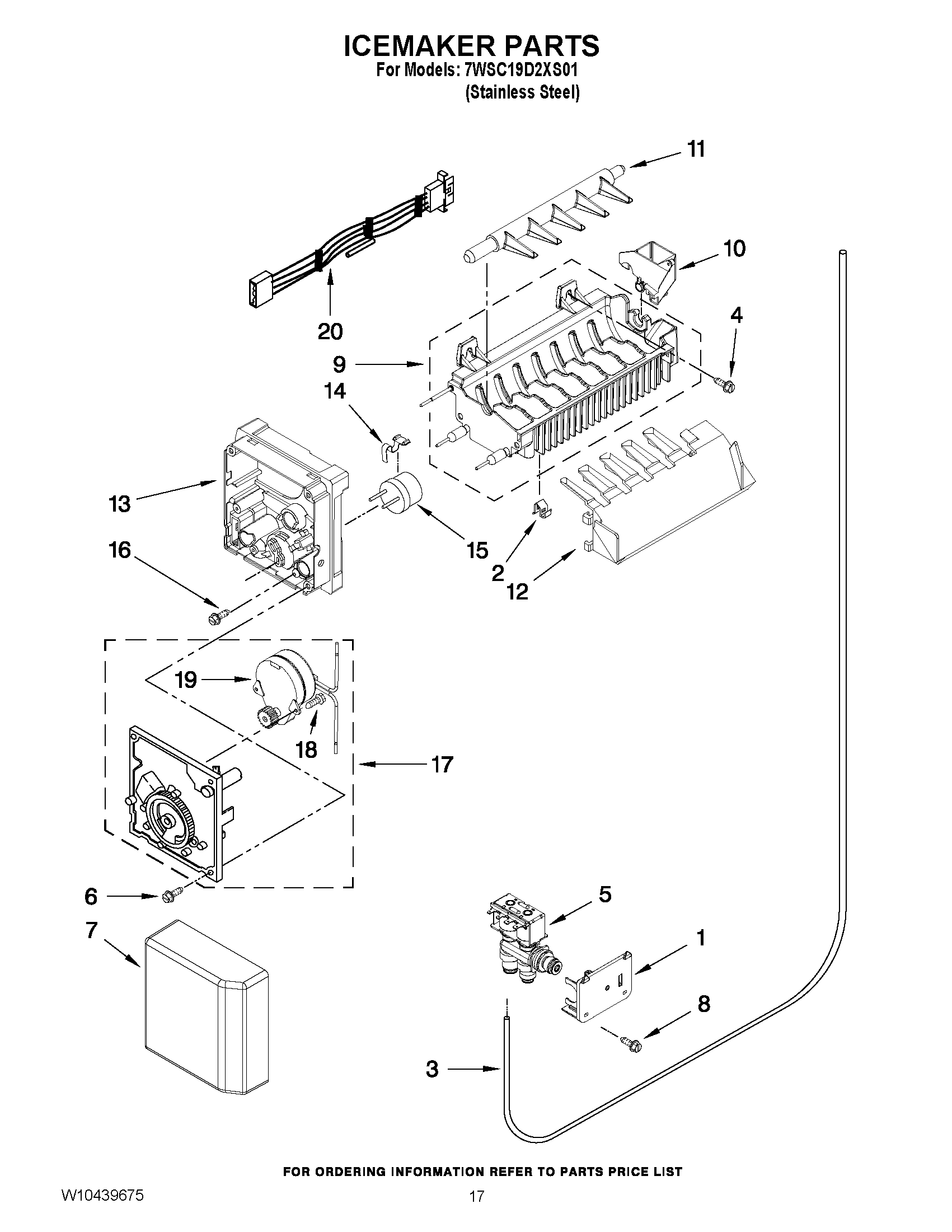

7WSC19D2XS01 10 – ICEMAKER PARTS

Products

Position	Product
1	W10847867 Whirlpool Refrigerator Bracket
2	WP628379 Whirlpool Refrigerator Clip
3	W10823511 Whirlpool Refrigerator Water Tube
4	WP489478 Whirlpool Refrigerator Screw
5	WPW10279878 Whirlpool Inlet Valve
6	W10001240 Whirlpool Refrigerator Screw
7	COVER
8	WPW10141625 Whirlpool Refrigerator Screw Assembly
9	WPW10300025 Whirlpool Refrigerator Ice Mold
10	W10122561 Whirlpool Refrigerator Cup Fill
11	W10318914 Whirlpool Refrigerator Ejector Arm
12	WPW10122563 Whirlpool Refrigerator Stripper Arm
13	WP2195914 Whirlpool Refrigerator Ice Maker Housing
14	WP2315522 Whirlpool Refrigerator Clip
15	628532 Whirlpool Refrigerator Thermostat
16	8533917 Whirlpool Refrigerator Screw
17	WPW10367657 Whirlpool Motor Model
18	Screw
19	CABINET (NOT A SERVICEABLE PART)
100	W11545326 Whirlpool Refrigerator Icemaker
