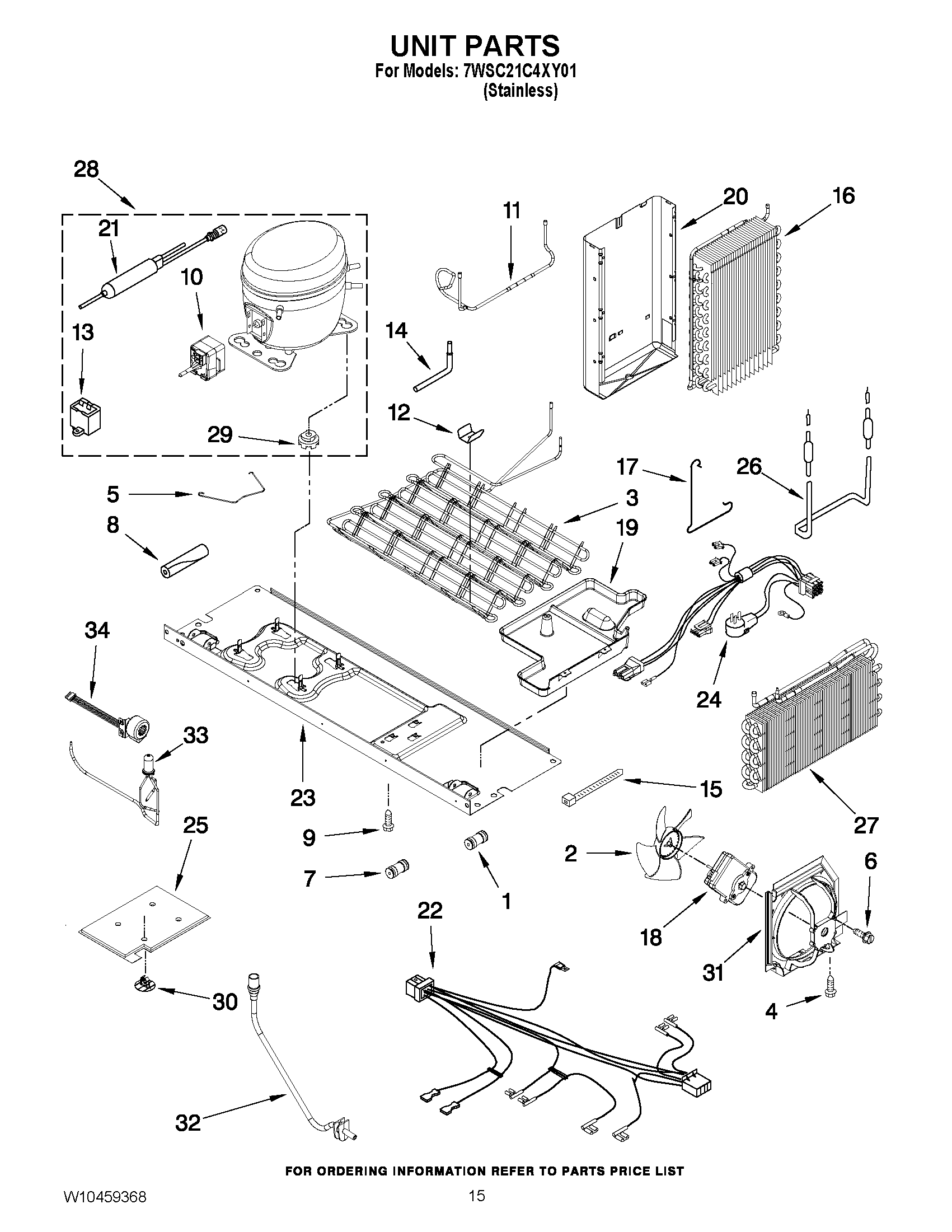

7WSC21C4XY01 09 – UNIT PARTS

7WSC21C4XY01 09 – UNIT PARTS

Written by

in

7WSC21C4XY01 09 – UNIT PARTS

Products

Position	Product
NI	978030 Whirlpool Refrigerator Valve
NI	VALVE, ACCESS (5/8“)
NI	876764 Whirlpool Refrigerator Primary Valve
NI	978026 Whirlpool Refrigerator Primary Valve
NI	978027 Whirlpool Refrigerator Primary Valve
NI	WP978025 Whirlpool Refrigerator Valve
NI	VALVE, ACCESS (1/2“)
2	W11458267 Whirlpool Refrigerator Fan Blade
3	W11708426 Whirlpool Condenser Assembly
4	WP489399 Whirlpool Refrigerator Screw
5	W10204187 Whirlpool Refrigerator Retainer
6	WPW10171469 Whirlpool Refrigerator Screw
7	WPW10277958 Whirlpool Refrigerator Fitting
8	SLEEVE
9	W11544659 Whirlpool Refrigerator Screw
10	W10896198 Whirlpool Refrigerator Start Device
10	WPW10189190 Whirlpool Start Device
11	WPW10223328 Whirlpool Refrigerator Tube
12	W10683556 Whirlpool Refrigerator Clip
13	WPW10662129 Whirlpool Refrigerator Run Capacitor
14	W10858105 Whirlpool Refrigerator Tube
15	WPW10339879 Whirlpool Wire Tie
16	WP2188822 Whirlpool Refrigerator Evaporator
17	Clamp
18	WP2188874 Whirlpool Refrigerator Condenser Motor
19	WPW10350441 Whirlpool Evaporator Tray
20	HEAT SHIELD
21	WPW10143759 Whirlpool Dryer Filter
22	HARNESS, WIRING WATER VALVE/DIODE
23	W10277704 Whirlpool Refrigerator Support
24	POWER CORD
25	UNIT COVER, BOTTOM
26	WPW10495967 Whirlpool Refrigerator Heater
27	WPW10643261 Whirlpool Refrigerator Evaporator
28	W10139462 Whirlpool Refrigerator Compressor
29	WP4387558 Whirlpool Refrigerator Compressor Grommet
29	WPW10169124 Whirlpool Refrigerator Grommet
30	W10296661 Whirlpool Refrigerator Clip
31	WPW10251467 Whirlpool Refrigerator Air Baffle
32	W11409190 Whirlpool Refrigerator Drain Tube
33	W11590197 Whirlpool Refrigerator Valve
34	WPW10364560 Whirlpool Refrigerator Solenoid
