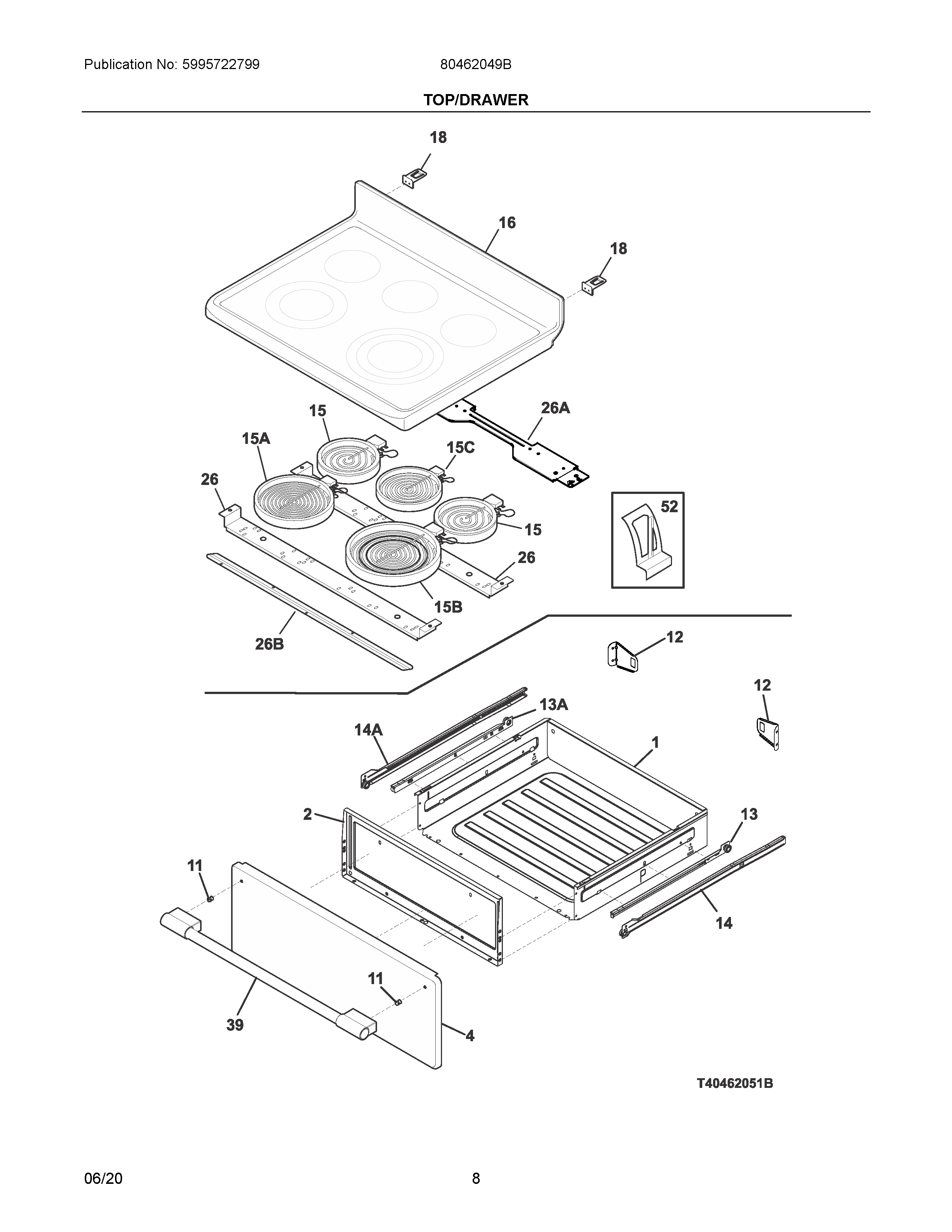

80462049B 04 – TOP/DRAWER

Products

Position	Product
NI	5304522952 Frigidaire Harness
NI	316001017 Frigidaire Screw
NI	316418900 Frigidaire Oven Screw
NI	316418901 Frigidaire Oven Screw
NI	316089500 Frigidaire Oven Screw
NI	316021109 Frigidaire Oven Screw
NI	5304414648 Frigidaire Oven Screw
NI	316021105 Frigidaire Oven Screw
NIA	5308014215 Frigidaire Oven Screw
1	316408706 Frigidaire Oven Drawer Assembly
2	5304527989 Frigidaire Liner
4	5304516892 Frigidaire Panel
10	5304507924 Frigidaire Oven Screw
11	5304494420 Frigidaire Oven Nut
12	5304517906 Frigidaire Oven Bracket
13A	5304517903 Frigidaire Oven Glide Drawer
13	5304517905 Frigidaire Oven Inner Right Hand Drawer Glide (Black)
14	5304517904 Frigidaire Oven Outer Right Hand Drawer Glide (Black)
14A	5304517902 Frigidaire Oven Glide Drawer
15	318178110 Frigidaire Oven Range 6" Surface Element
15C	ELEMENT,RADIANT,100W,WARMER
15B	318297810 Frigidaire Oven Triple Radiant Burner Element
15A	5304533520 Frigidaire Element
16	5304513155 Frigidaire Smoothtop
18	316580800 Frigidaire Hinge Bracket
26A	316498200 Frigidaire Oven Bracket
26	5304512926 Frigidaire Channel
26B	316607600 Frigidaire Bracket
39	WCI 5304525007
43	5303285179 Frigidaire Oven Door Screw
52	316461700 Frigidaire Oven Clip Assembly
