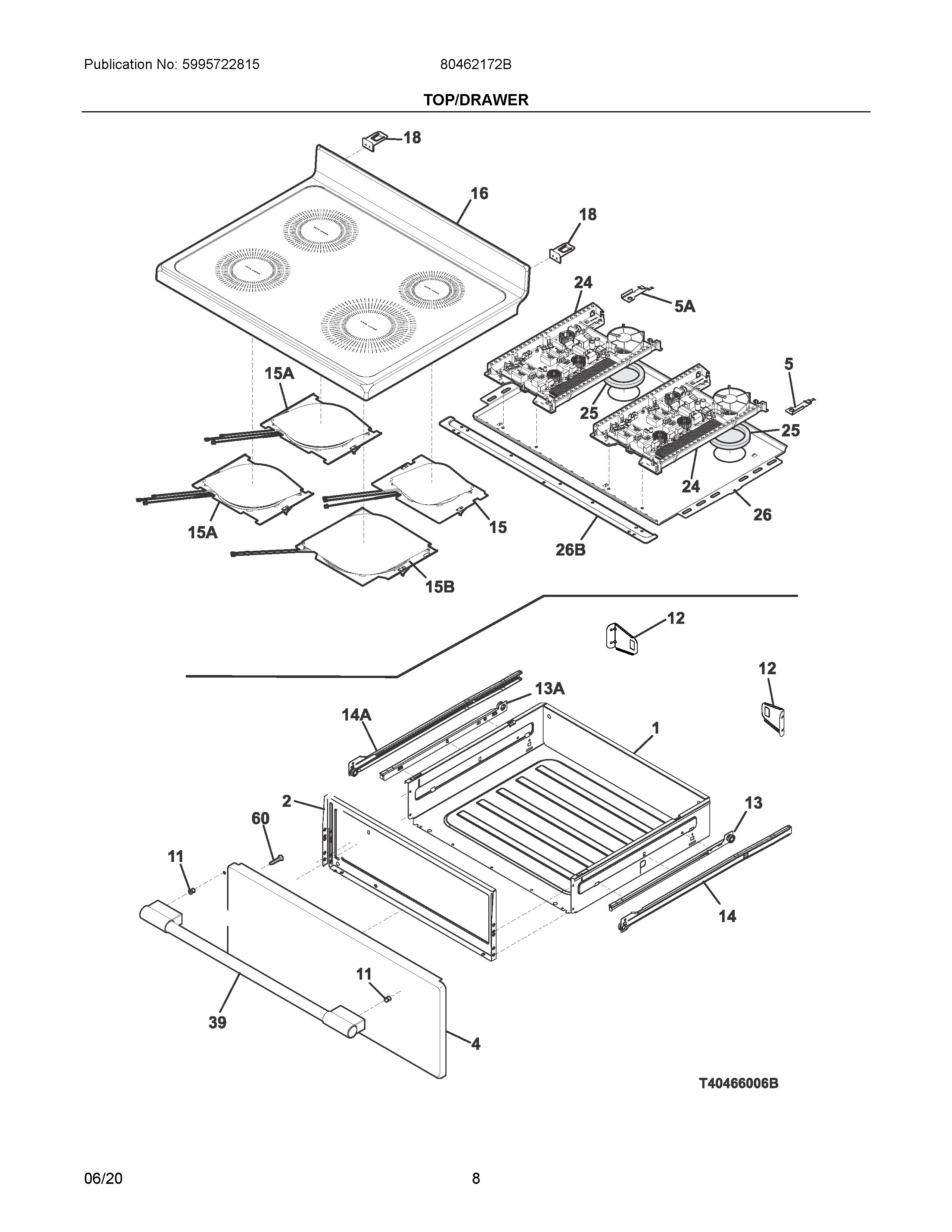

80462172B 04 – TOP/DRAWER

Products

Position	Product
NI	316021105 Frigidaire Oven Screw
NI	5304517540 Frigidaire Harness
NI	5304524911 Frigidaire Harness
NI	316418900 Frigidaire Oven Screw
NI	316001017 Frigidaire Screw
NI	316089500 Frigidaire Oven Screw
NI	316021109 Frigidaire Oven Screw
NI	5303289910 Frigidaire Oven Screw
1	316408706 Frigidaire Oven Drawer Assembly
2	5304527989 Frigidaire Liner
4	5304516892 Frigidaire Panel
5	BRACKET, COOKTOP, RH REAR
5A	BRACKET, COOKTOP, LH REAR
11	5304494420 Frigidaire Oven Nut
12	5304517906 Frigidaire Oven Bracket
13A	5304517903 Frigidaire Oven Glide Drawer
13	5304517905 Frigidaire Oven Inner Right Hand Drawer Glide (Black)
14A	5304517902 Frigidaire Oven Glide Drawer
14	5304517904 Frigidaire Oven Outer Right Hand Drawer Glide (Black)
15	387404760 Frigidaire Range Element Assembly
15A	387404870 Frigidaire Range Element Assembly
15B	387761249 Frigidaire Range Element Assembly
16	5304511258 Frigidaire Smoothtop Assembly
18	316580800 Frigidaire Hinge Bracket
24	5304521812 Frigidaire Board Generator
25	316302201 Frigidaire Seal
26	5304522702 Frigidaire Panel
26B	316607600 Frigidaire Bracket
39	WCI 5304525007
60	5304414648 Frigidaire Oven Screw
