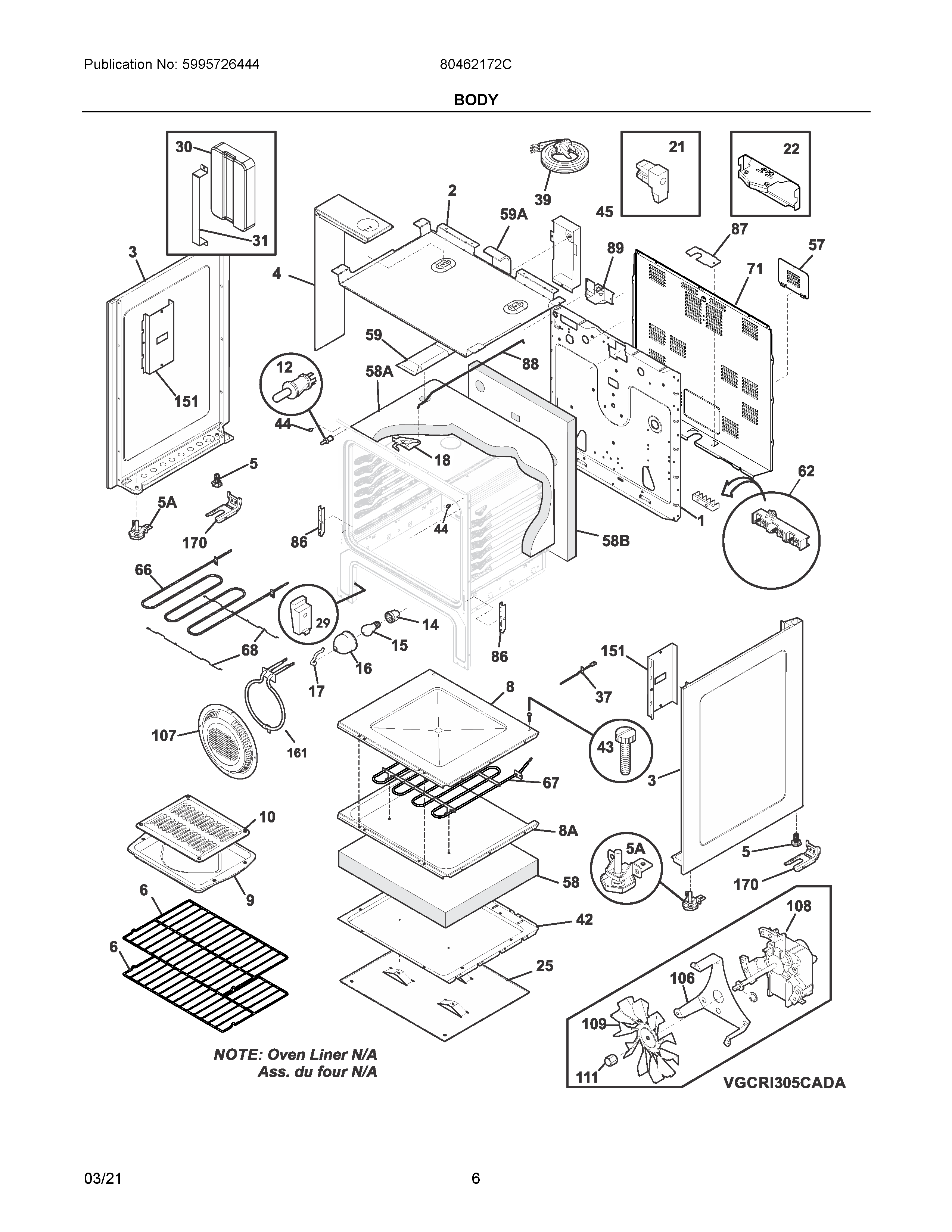

80462172C 03 – BODY

80462172C 03 – BODY

Written by

in

80462172C 03 – BODY

Products

PositionProduct
NI5303285179 Frigidaire Oven Door Screw
NIA316247300 Frigidaire Oven Catalyst
NI318165800 Frigidaire Oven Door Glass Spacer with Screw
NI316418901 Frigidaire Oven Screw
NI316418900 Frigidaire Oven Screw
NI316205500 Frigidaire Oven Nut
NI316279600 Frigidaire Screw
NIA316001017 Frigidaire Screw
NIA316112005 Frigidaire Oven Anti-Tip Range Bracket Kit
NI316021132 Frigidaire Screw
NI316089500 Frigidaire Oven Screw
NI316021109 Frigidaire Oven Screw
NIB316355104 Frigidaire INSULATION
NI316021105 Frigidaire Oven Screw
NI5303289910 Frigidaire Oven Screw
NIA316064600 Frigidaire Oven Support
NI5304522700 Frigidaire Harness
NI5304517545 Frigidaire Harness
NIB316116000 Frigidaire Screw
1316401806 Frigidaire Panel
2SHIELD, CHASSIS, TOP
3A316400145 Frigidaire Panel Assembly
3316400144 Frigidaire Panel
4DUCT ASSEMBLY KIT, FAN INTAKE, BOTH LH & RH
5A5304509869 Frigidaire Oven Leveling Leg Assembly
5316272900 Frigidaire Oven Leg Levelling Plastic Screw
6316496201 Frigidaire Oven Rack
8316400601 Frigidaire Oven Range Bottom Panel
8ABASE, BAKE ELEMENT
9WCI 316081900
10Insert,broiler panOPTIONAL ACCESS0RY
12316445500 Frigidaire Oven Switch
14316116400 Frigidaire Oven Light Socket
15316538904 Frigidaire Oven Lamp Light
165304524341 Frigidaire Lens
17316087500 Frigidaire Oven Retainer
18316405800 Frigidaire Assembly Latch
21316408000 Frigidaire Oven Clip Assembly
22316286300 Frigidaire Bodyside Bracket
25316406200 Frigidaire Oven Shield
30COUNTERWEIGHT, CONCRETE BLOCK
31BRACKET, CONCRETE BLOCK
37316490000 Frigidaire Oven Range Temperature Sensor
39WCI 318113111
42316407700 Frigidaire Oven Shield
43316282700 Frigidaire Oven Screw
44316517600 Frigidaire Oven Spacer
45316234100 Frigidaire Oven Shield
57316283600 Frigidaire Oven Cover
58B316406500 Frigidaire Insulation
58316403802 Frigidaire Insulation
58A316406602 Frigidaire Insulation
59A316208304 Frigidaire Oven Tube
59316208201 Frigidaire Oven Tube
625304409888 Frigidaire Oven Terminal Block with Hardware
66BROIL ELEMENT
67316413800 Frigidaire Oven Range Bake Element
68316404002 Frigidaire Support Assembly
71316283204 Frigidaire Oven Shield
86316580700 Frigidaire Door Hinge Receptacle
87316081202 Frigidaire Bracket
88316203500 Frigidaire Oven Rod
89MOTOR
106316404100 Frigidaire Oven Bracket
107316026701 Frigidaire Oven Cover Assembly
108316256100 Frigidaire Oven Fan Motor
109318398302 Frigidaire Stove Oven Range Convection Motor Fan Blade
111316136600 Frigidaire Oven Range Lock Nut
151316404601 Frigidaire Oven Shield
1615304521820 Frigidaire Element
