Products

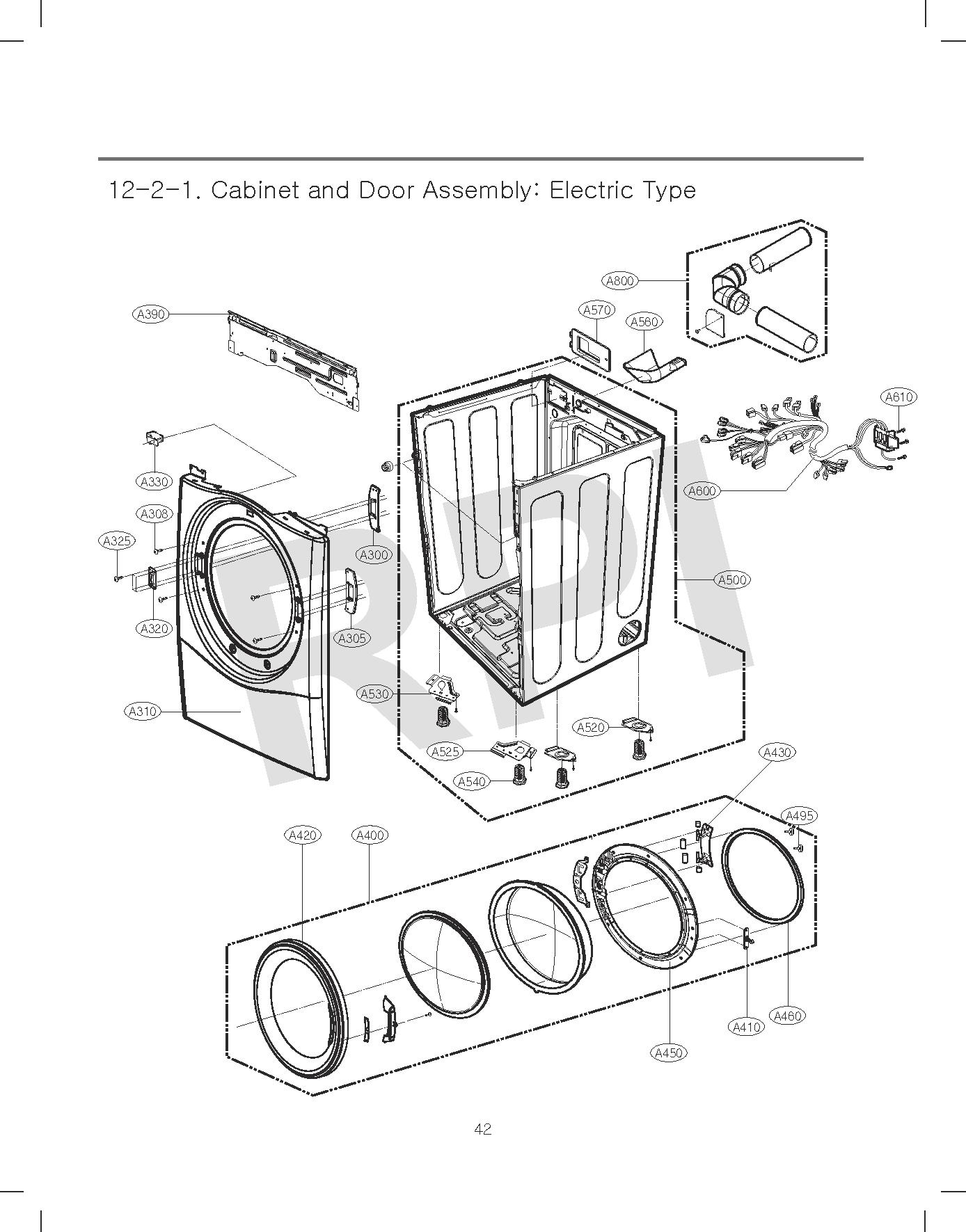

Position	Product
A300	MAZ47156202 LG Hinge Bracket
A570	3550EL3002A LG Safety Cover
A610	383EEL9001H LG Assembly Parts
A800	3911EZ9131X LG Dryer Stainless Steel Side Venting Kit
A390	ADV33609806 LG Assembly Frame
A560	3550EL3007D LG Cover Guide
A410	4026EL3007A LG Dryer Latch Hook Strike
A600	EAD60843511 LG Multi Harness
A310	ACQ72301007 LG Cabinet Cover Assembly
A400	ADC74325801 LG Door Panel
A420	ADC74365501 LG Door Panel
A540	4778EL3001B LG Dryer Leveling Leg
A530	4810EL3009B LG Dryer Leveling Leg Bracket
A525	4810EL3009A LG Dryer Base Bracket
A305	MAZ47156203 LG Dryer Door Hinge Bracket
A308	1APF0402608 LG Laptop Screw
A320	4027EL1001A LG Dryer Door Latch Catch
A325	1MTC0402632 LG Machine Screw
A330	6601EL3001A LG Dryer Door Switch Assembly
A430	4774EL2001A LG Dryer Door Hinge
A450	MDQ58083301 LG Inner Door Frame
A460	MDS47263101 LG Dryer Door Gasket
A495	MCQ62786001 LG Damper
A520	4810EL3001B LG Dryer Base Bracket
A500	ABJ34559222 LG Cabinet Assembly
