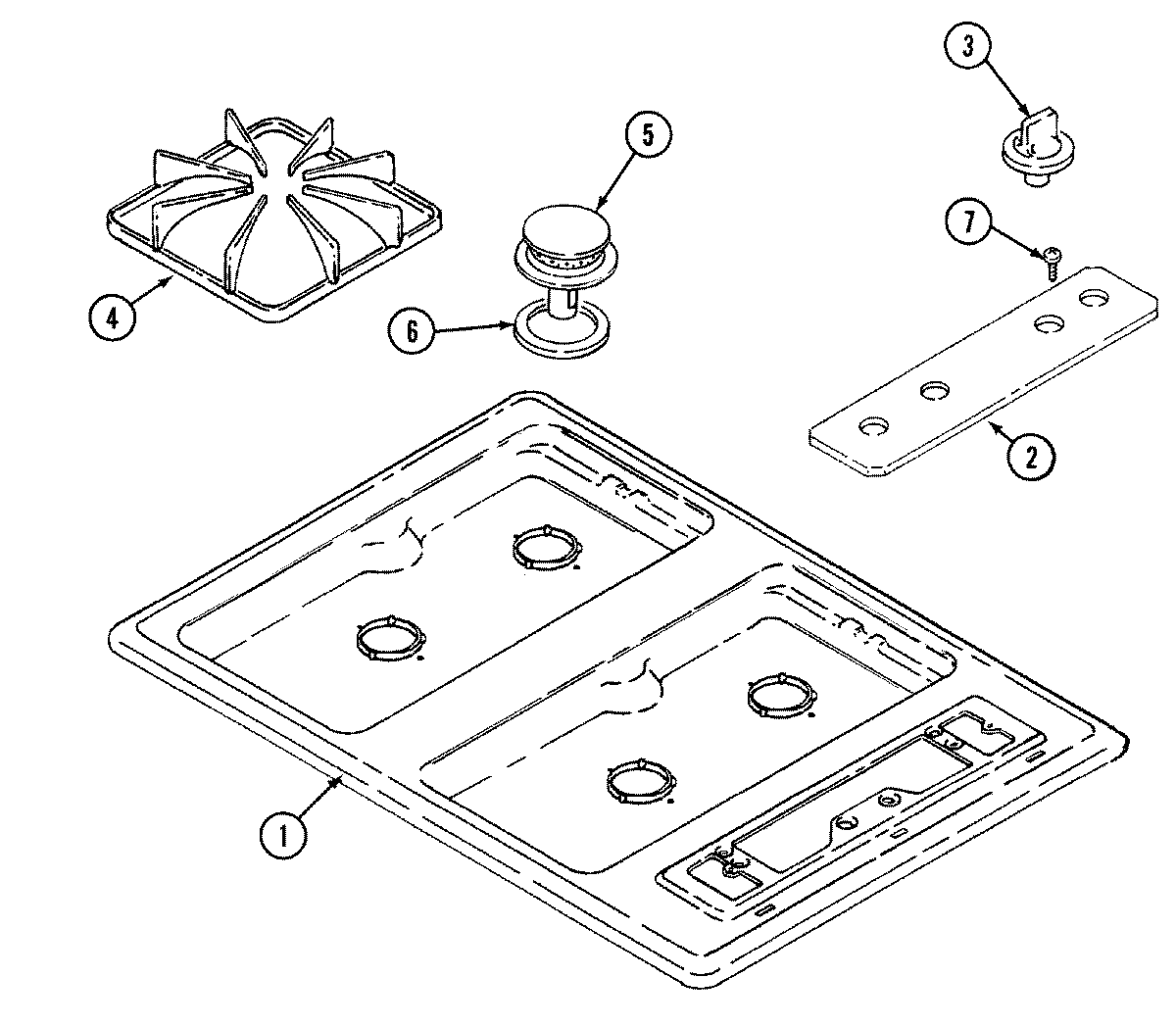

8241RA 02 – TOP ASSEMBLY (RA, RB, RS, RV, RW)

Products

PositionProduct
1MAY 2001W083-84
1MAY 74001467
2MAY 7720P146-60
3MAY 7733P045-60
3WP74001253 Whirlpool Top Knob
4WP7518P464-60 Whirlpool Burner Grate
4MAY 74001653
4MAY 2003W023-00
5NOT REQUIRED PART OR SEE NOTE FUSE (NOT REQUIRED)
5MAY 3412D018-09
5WP3412D024-09 Whirlpool Oven Burner Head
574004053 Whirlpool Range Cooktop Top Burner Electrode Spark Igniter
6MAY 7201P050-60
7MAY 7101P076-60
8MAY 74001971
