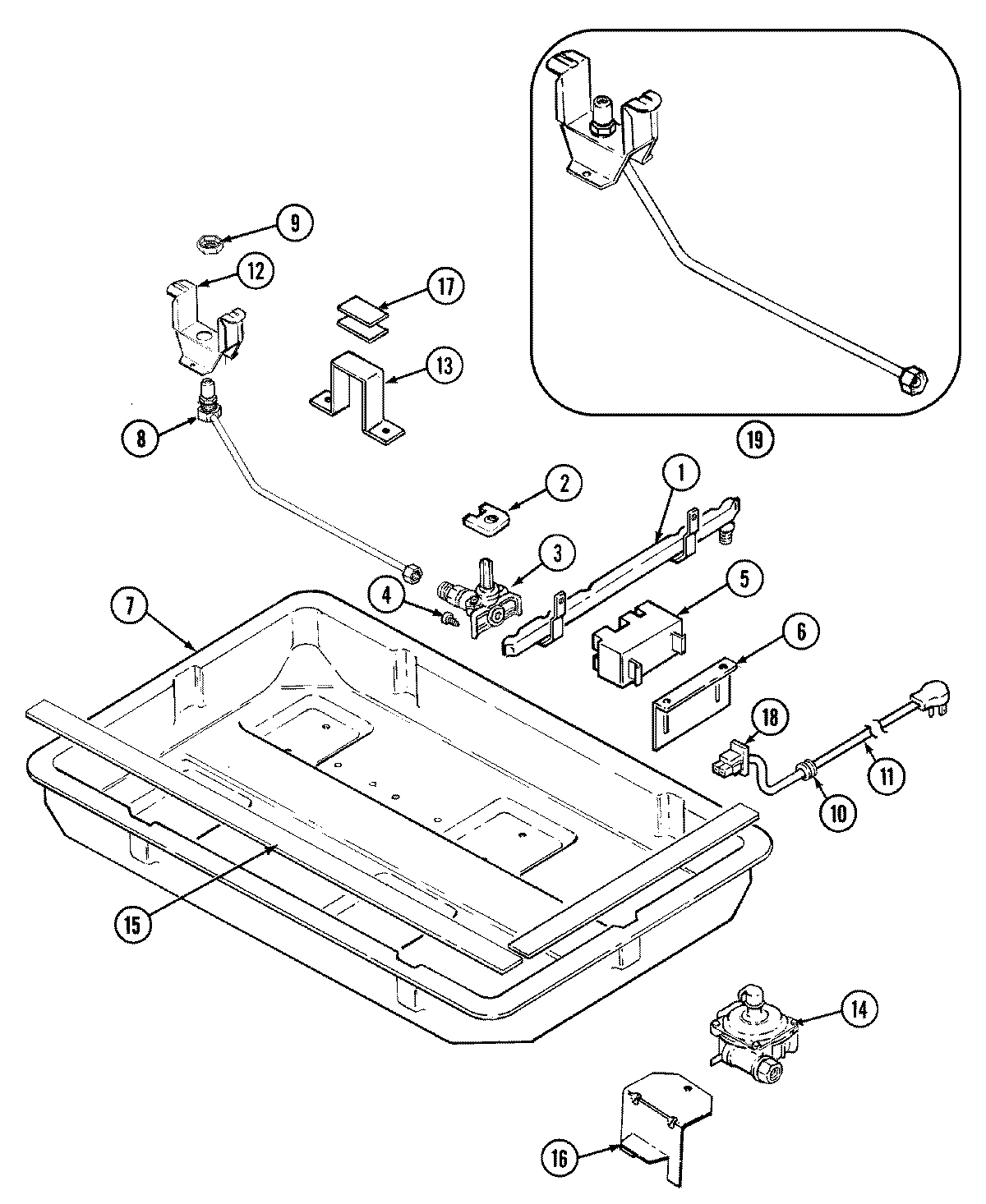

8261RB 01 – BODY

Products

Position	Product
1	MAY 74001348
1	MAY 7513P098-60
2	WP7403P367-60 Whirlpool Switch
2	WP7403P190-60 Whirlpool Switch
3	MAY 7502P254-60
3	MAY 74001384
3	MAY 7502P106-60
4	MAY 7101P043-60
5	MAY 7431P024-60
5	MAY 7431P027-60
5	MAY 74003288
6	MAY 7101P059-60
6	MAY 3801F357-45
6	MAY 3801F304-45
7	MAY 4011F212-80
7	MAY 74001366
7	MAY 74003163
7	MAY 74001209
8	MAY 7507P101-60
8	MAY 7507P103-60
9	MAY 7103P119-60
9	NOT REQUIRED PART OR SEE NOTE FUSE (NOT REQUIRED)
10	BUSHING, SNAP
10	SCREW, GROUND (GRN)
11	MAY 7208P019-60
11	MAY 7402P014-60
12	MAY 7118P018-60
12	MAY 3807F442-51
13	MAY 3801F308-45
14	W11170853 Whirlpool Regulator Assembly
14	MAY 7510P002-60
16	MAY 3801F192-45
17	MAY 12400021
18	MAY 7401P018-60
18	MAY 7401P017-60
19	MAY 74001379
19	MAY 74001378
19	MAY 74002003
19	MAY 74002004
21	MAY 5111A261-60
21	MAY 5111A610-60
