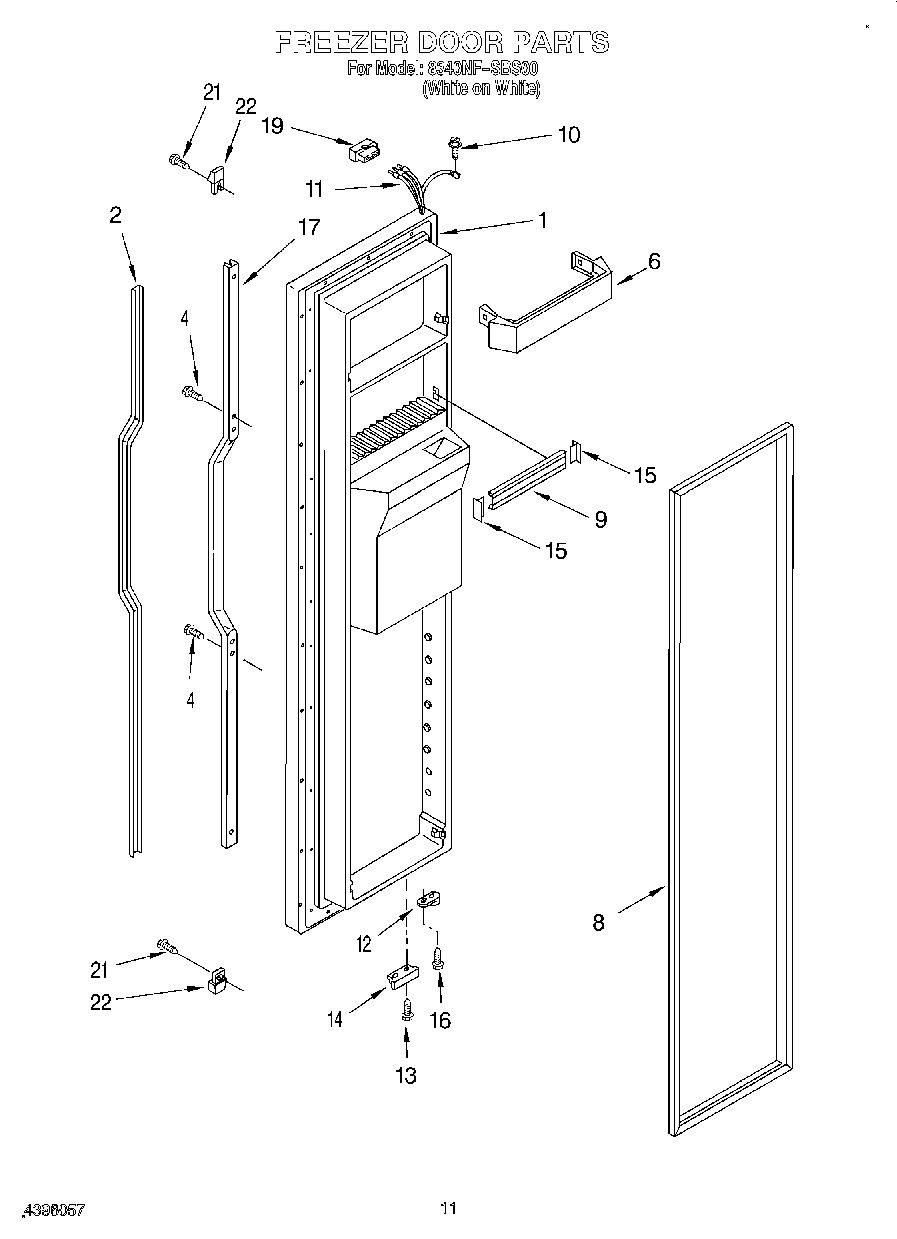

8340NFSBS00 07 – FREEZER DOOR

Products

Position	Product
1	Freezer Door (Includes Item No.8 And Dispenser Front Parts)
2	Insert, Handle
4	WP489463 Whirlpool Refrigerator Screw
6	WP2171157 Whirlpool Shelf Trim
8	2159074 Whirlpool Door Gasket Seal
9	WPW10307490 Whirlpool Door Trim Assembly
10	WP489128 Whirlpool Refrigerator Screw
11	Wiring Harness
12	4318165 Whirlpool Refrigerator Door Closure Cam Kit
13	WP489483 Whirlpool Screw
14	Bracket, Door Stop (Chrome)
15	WP2156006 Whirlpool Refrigerator Shelf Trim Endcap
16	WP3400012 Whirlpool Refrigerator Screw
17	Retainer, Insert
19	WP2154473 Whirlpool Refrigerator Connector
21	WP3400852 Whirlpool Refrigerator Screw
22	End Cap, Handle
