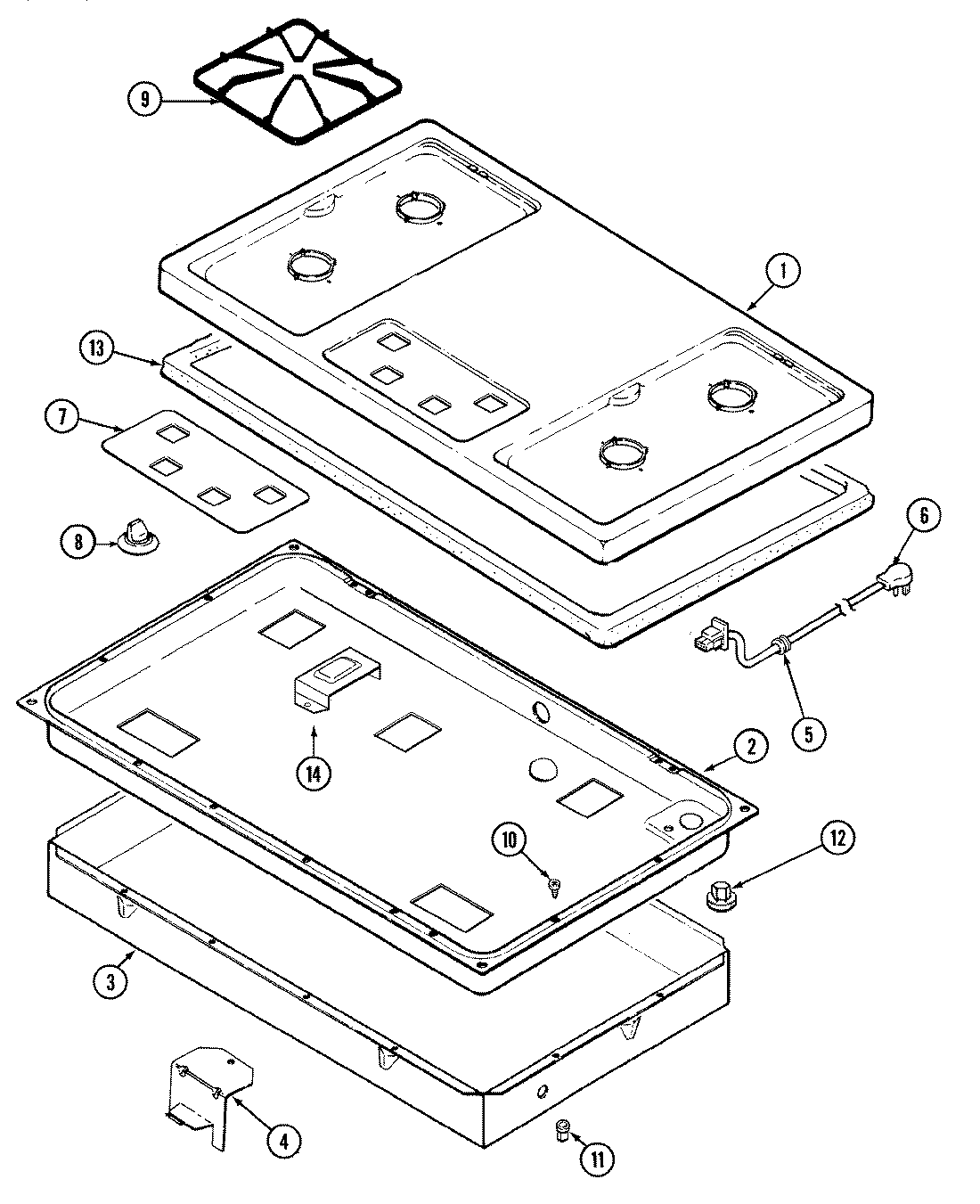

8341VB 02 – TOP ASSEMBLY

8341VB 02 – TOP ASSEMBLY

Written by

in

8341VB 02 – TOP ASSEMBLY

Products

PositionProduct
1MAY 74001876
2MAY 74001965
3MAY 74001966
3SCREW, GROUND (GRN)
4MAY 74001969
5BUSHING, SNAP
6MAY 7402P047-60
7MAY 74001875
8MAY 74001874
9MAY 74001653
9WP7518P464-60 Whirlpool Burner Grate
9MAY 2003W027-00
11MAY 7103P016-60
12MAY 74002078
13Seal, Foam
14MAY 74002076
14SCREW
15MAY 8008P012-60
16SCREW (10ABX1.0-ZN)
16MAY 74002139
17MAY 74001877
18MAY 74001971
18MAY 16000329
