8341VD 01 – GAS CONTROLS
Written by
in

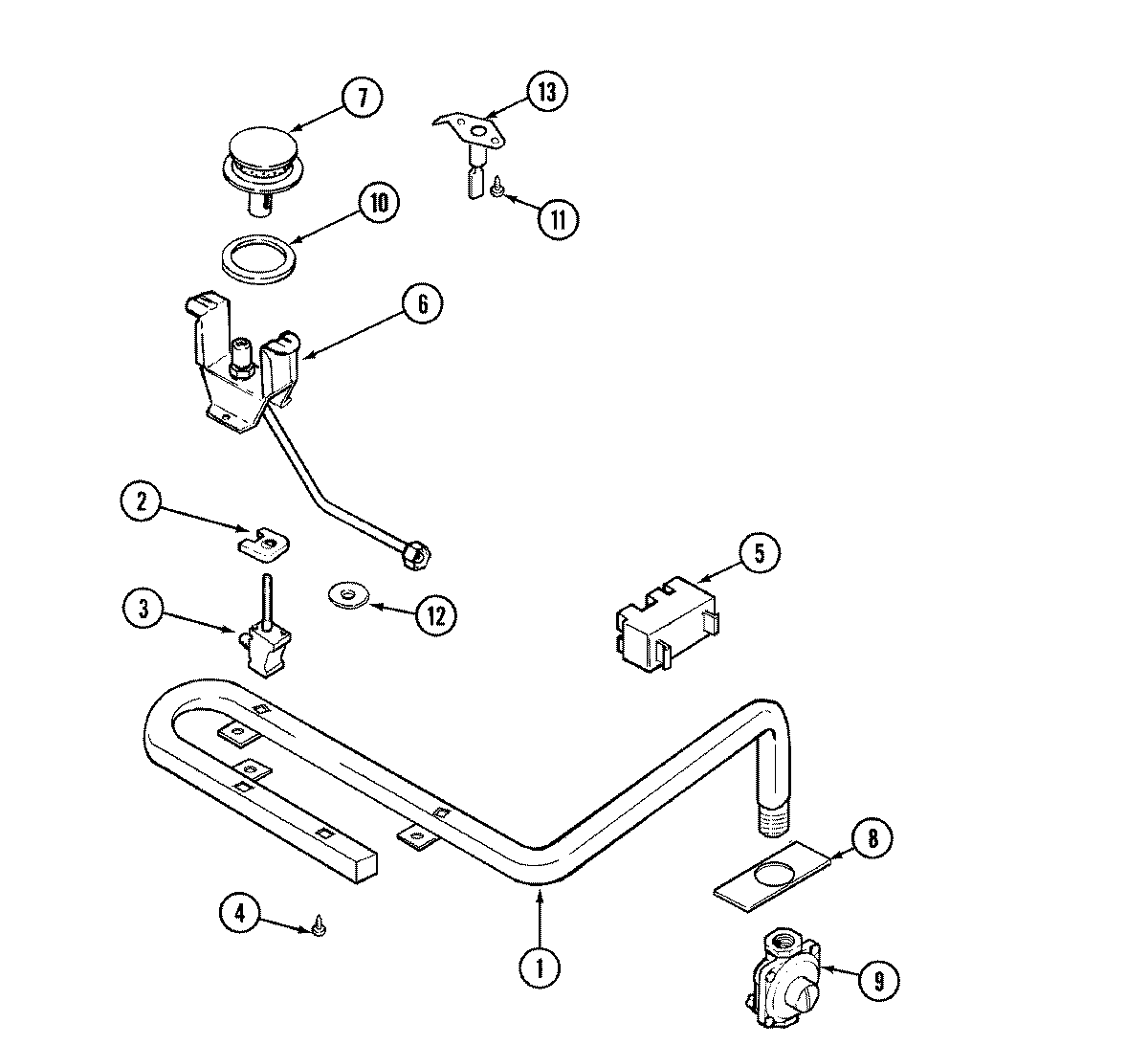

8341VD 01 – GAS CONTROLS
Products
Position
Product
1
MAY 7101P356-60
1
MAY 74001788
1
MAY 74001978
2
MAY 7403P370-60
2
MAY 12001434
2
MAY 7403P369-60
2
12002788 Whirlpool Igniter Switch with Shield AS
3
MAY 74001979
3
MAY 74001980
3
MAY 74001981
4
MAY 7101P044-60
5
MAY 74003288
5
MAY 7431P027-60
6
MAY 74001974
6
MAY 74001977
6
MAY 74001975
6
SCREW
6
MAY 74001976
7
MAY 74003966
7
MAY 3412D018-08
7
MAY 74003521
8
MAY 74002077
9
MAY 7510P002-60
10
MAY 7201P050-60
11
WP59002061 Whirlpool Microwave Screw
12
MAY 7724P004-60
13
74004053 Whirlpool Range Cooktop Top Burner Electrode Spark Igniter
13
NOT REQUIRED PART OR SEE NOTE FUSE (NOT REQUIRED)
14
MAY 5111A610-60
14
MAY 5111A261-60
←
