8341VD 02 – TOP ASSEMBLY

8341VD 02 – TOP ASSEMBLY

Written by

in

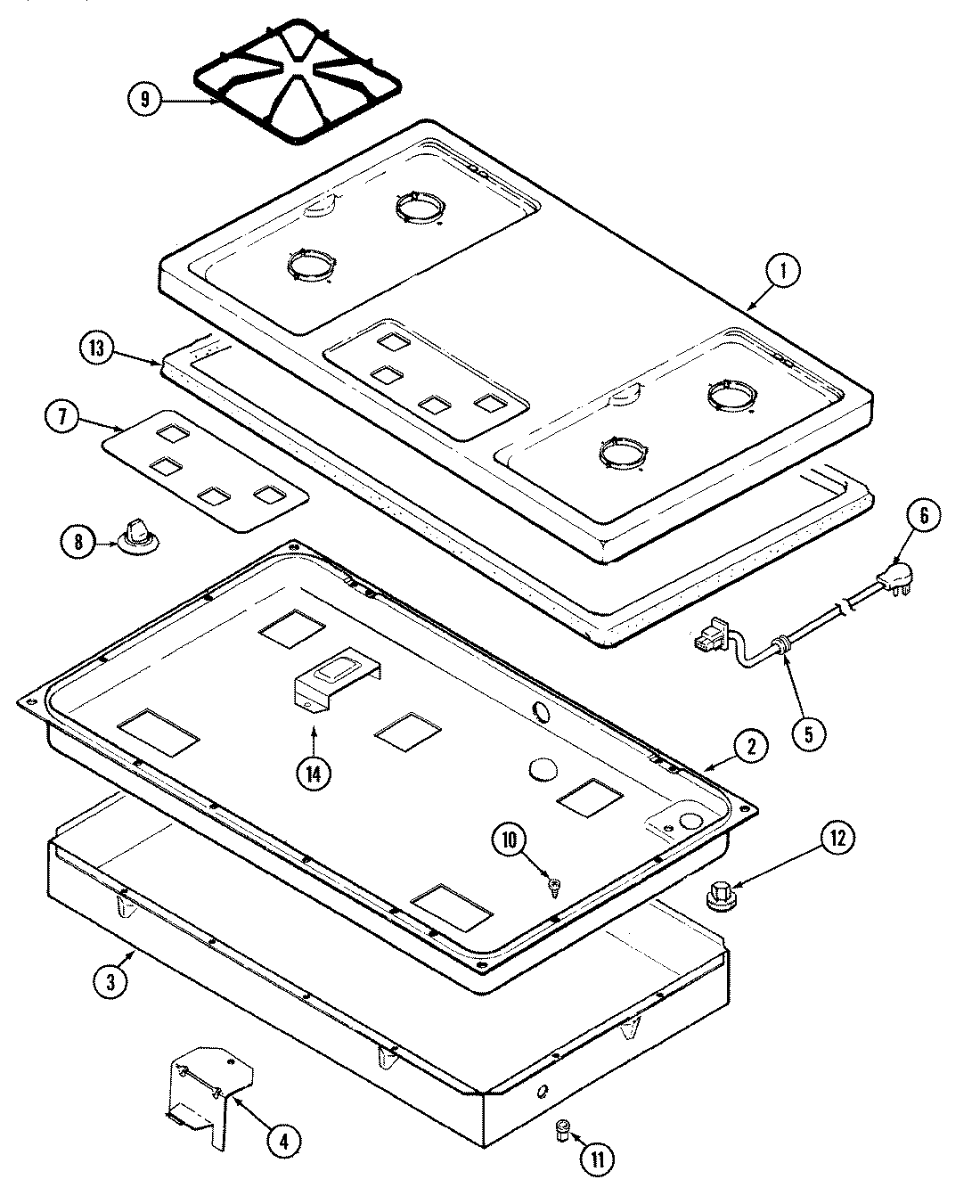

8341VD 02 – TOP ASSEMBLY

Products

Position	Product
1	MAY 74002022
2	MAY 74001965
3	MAY 74001966
3	SCREW, GROUND (GRN)
4	MAY 74001969
5	BUSHING, SNAP
6	MAY 7402P047-60
7	MAY 74002023
8	MAY 74001962
9	MAY 74003514
9	MAY 74001060
9	MAY 2003W027-08
9	MAY 74001654
11	MAY 7103P016-60
12	MAY 74002078
13	Seal, Foam
14	MAY 74002076
14	SCREW
15	MAY 8008P012-60
16	SCREW (10ABX1.0-ZN)
16	MAY 74002139
17	MAY 74001877
18	MAY 74001971
18	MAY 16000329
