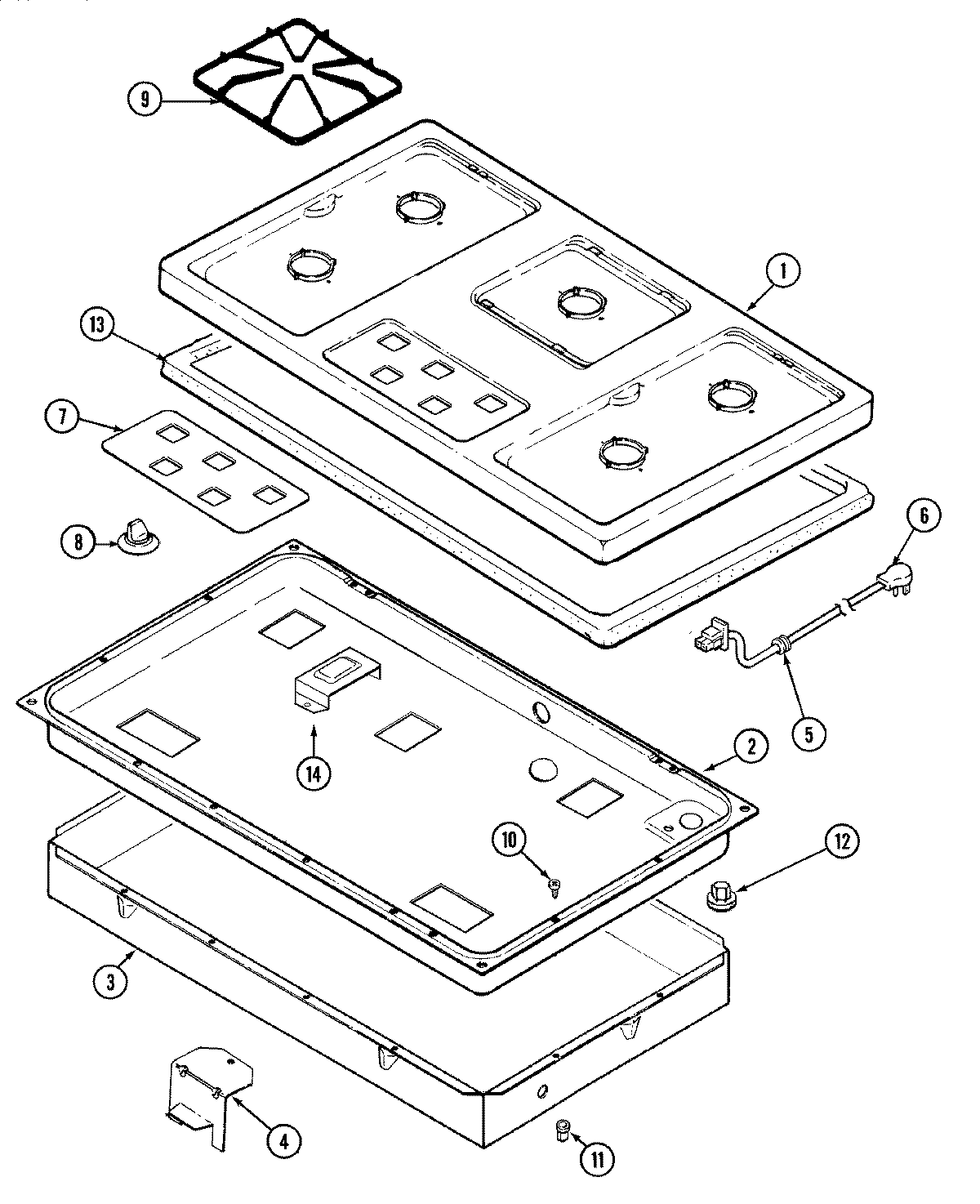

8351VB 02 – TOP ASSEMBLY

Products

Position	Product
1	MAY 74002187
2	MAY 74001965
2	MAY 74005305
3	MAY 74005303
3	MAY 74001966
3	SCREW, GROUND (GRN)
4	MAY 74001969
5	BUSHING, SNAP
6	MAY 7402P047-60
6	MAY 74005304
7	MAY 74002188
7	SCREW
8	MAY 74001874
9	MAY 74001653
9	WP7518P464-60 Whirlpool Burner Grate
9	MAY 2003W027-00
11	MAY 7103P016-60
12	MAY 74002078
13	Seal, Foam
14	MAY 74002076
14	MAY 7101P059-60
15	MAY 8008P012-60
16	MAY 74002139
16	SCREW (10ABX1.0-ZN)
17	MAY 74002118
18	MAY 74001971
