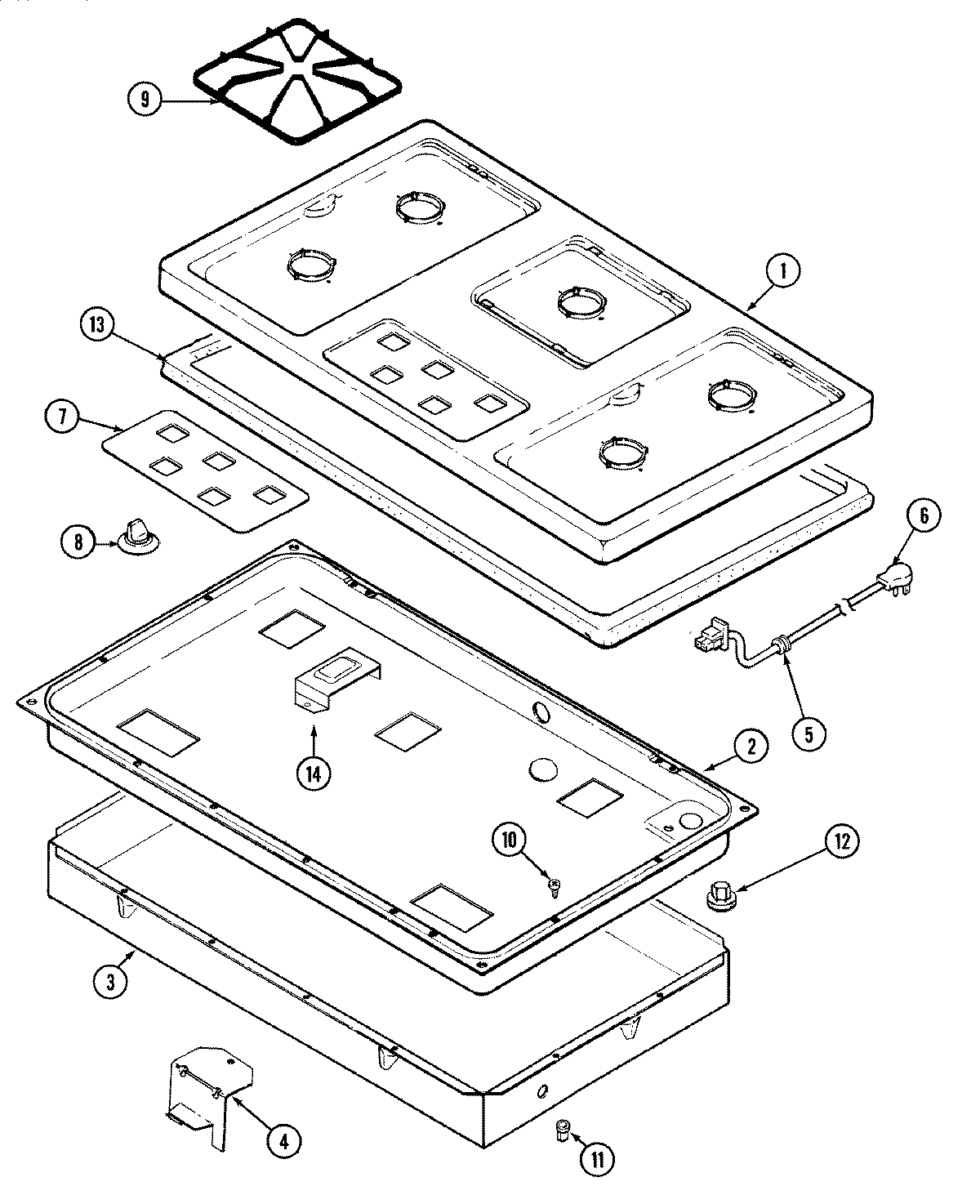

8351VV 02 – TOP ASSEMBLY

8351VV 02 – TOP ASSEMBLY

Written by

in

8351VV 02 – TOP ASSEMBLY

Products

Position	Product
1	MAY 74002116
2	MAY 74001965
2	MAY 74005305
3	SCREW, GROUND (GRN)
3	MAY 74001966
3	MAY 74005303
4	MAY 74001969
5	BUSHING, SNAP
6	MAY 7402P047-60
6	MAY 74005304
7	SCREW
7	MAY 74002117
8	WP74002115 Whirlpool Burner Knob
9	MAY 2003W027-26
9	MAY 74001061
9	MAY 74001655
11	MAY 7103P016-60
12	MAY 74002078
13	Seal, Foam
14	MAY 7101P059-60
14	MAY 74002076
15	MAY 8008P012-60
16	SCREW (10ABX1.0-ZN)
16	MAY 74002139
17	MAY 74002118
18	MAY 74001971
