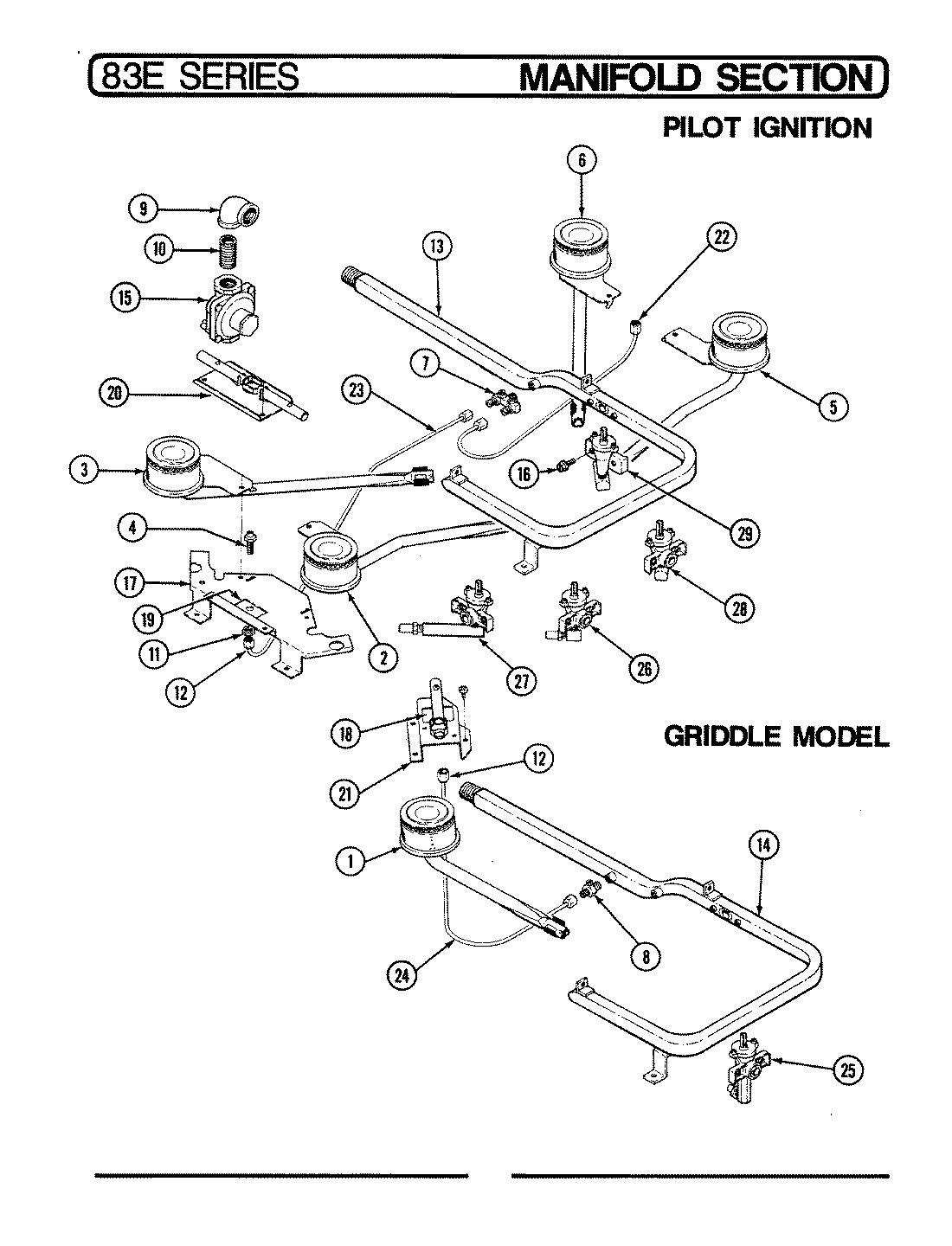

83EN-1 02 – MANIFOLD SECTION (PILOT IGNITION)
Written by
in
83EN-1 02 – MANIFOLD SECTION (PILOT IGNITION)
Products
Position
Product
2
MAY Y0B06101722
3
MAY 0B06101822
4
MAY Y0B03700316
5
MAY Y0B06102022
6
MAY 0B06101922
7
MAY Y0F00105099
8
MAY 0F00104999
9
MAY 0F00300799
10
MAY 0F00300899
11
MAY 0N10001399
12
MAY 1555225
13
MAY 0P07501599
15
MAY Y0R00302599
16
MAY Y0S10001099
17
MAY 4G55405726
19
MAY 4G55406426
20
MAY 0T02200316
22
MAY 4E42204916
23
MAY 4E42205016
24
MAY 4E42204816
25
NOT REQUIRED PART OR SEE NOTE FUSE (NOT REQUIRED)
26
MAY 7502P034-60
26
MAY 7502P032-60
27
MAY 7502P027-60
27
MAY 7502P025-60
28
MAY 7502P033-60
28
MAY 7502P011-60
29
MAY 7502P026-60
29
MAY 7502P028-60
←
