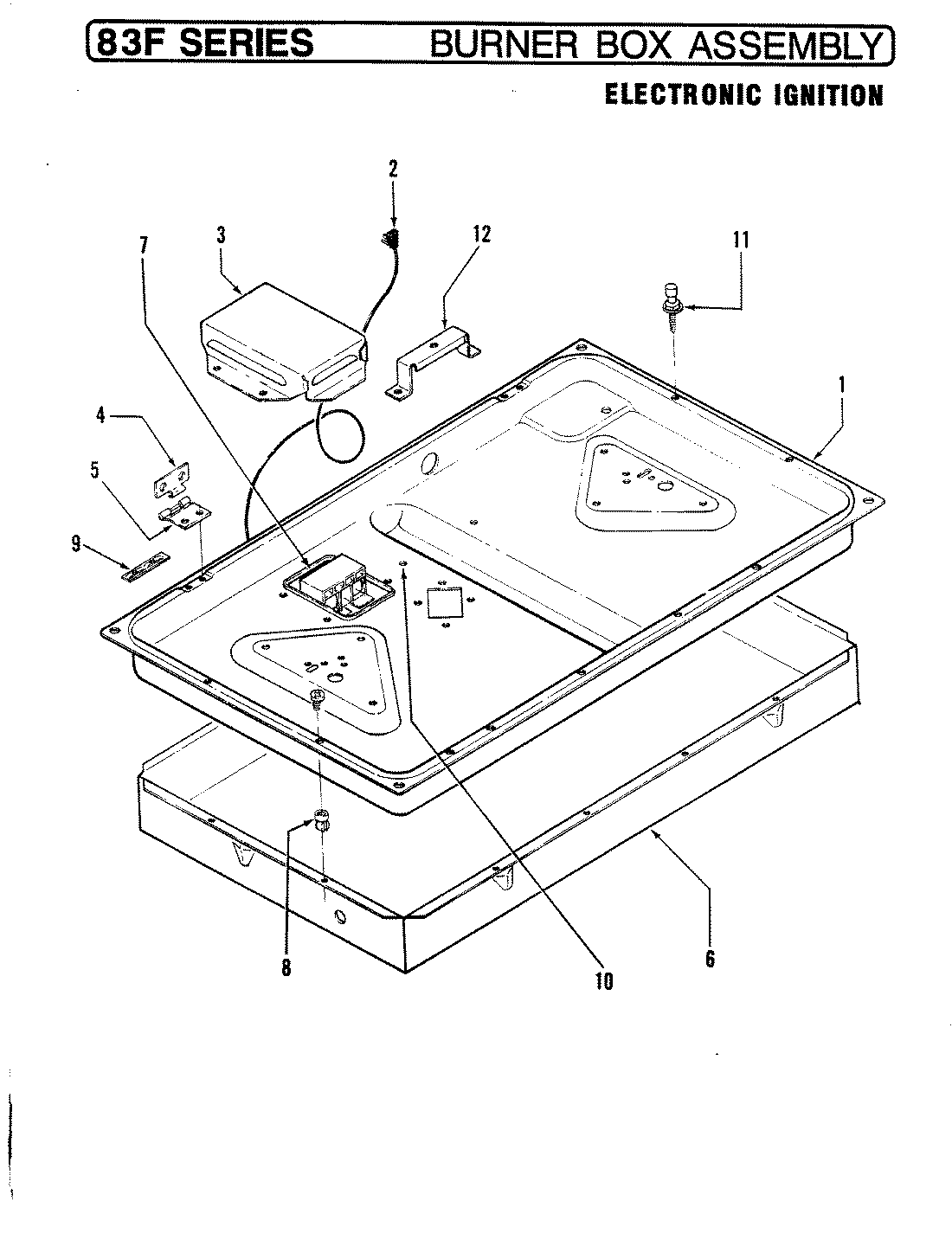

83FN-1GK 01 – BURNER BOX ASSY. (ELECTRONIC IGNITION)

83FN-1GK 01 – BURNER BOX ASSY. (ELECTRONIC IGNITION)

Written by

in

83FN-1GK 01 – BURNER BOX ASSY. (ELECTRONIC IGNITION)

Products

PositionProduct
1MAY 4011F092-23
2MAY Y0S05300199
3MAY 4005F108-51
4MAY Y0H01400311
5MAY Y0H01400411
6MAY 4G23000341
7MAY Y0M00700299
8MAY 0N10001199
9MAY 0N10001499
10NOT REQUIRED PART OR SEE NOTE FUSE (NOT REQUIRED)
11MAY 0S03501722
12MAY 4G55405926
