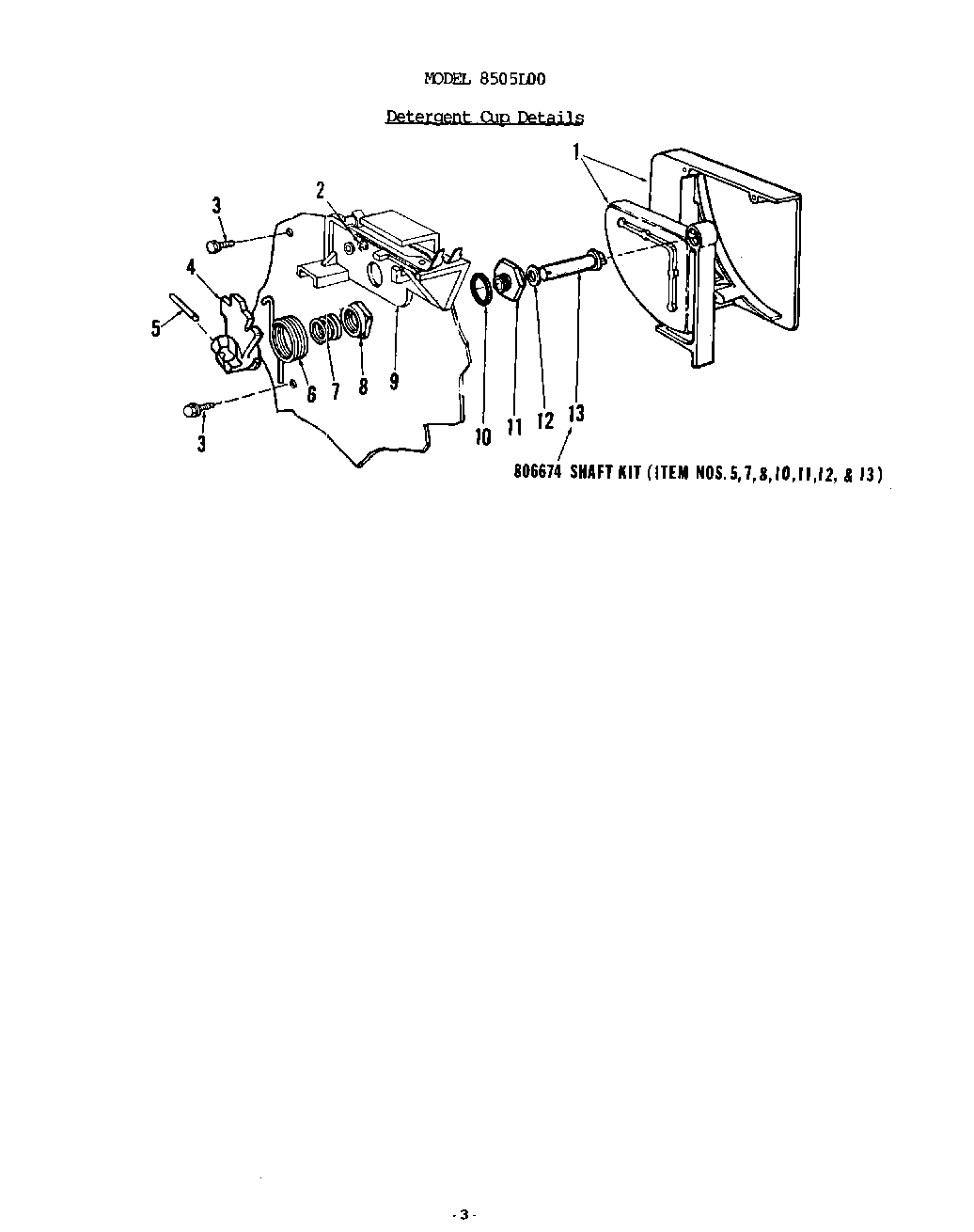

8505L00 03 – DETERGENT CUP

Written by

Products

Position	Product
1	Detergent Cup & Cover Kit
2	“O“ Ring
3	Screw No. 8 x 5/8“ Lg. Hes Washer Hd. St. St.
4	Cam
5	Rollpin – Cam
6	Spring – Cam
7	Spring-Cam Compression
8	Nut
9	Trigger Assembly
10	Washer
11	Bushing
12	O-RING
13	Shaft Kit (Includes Items 5, 8, 10, 11, 12 & 13)
