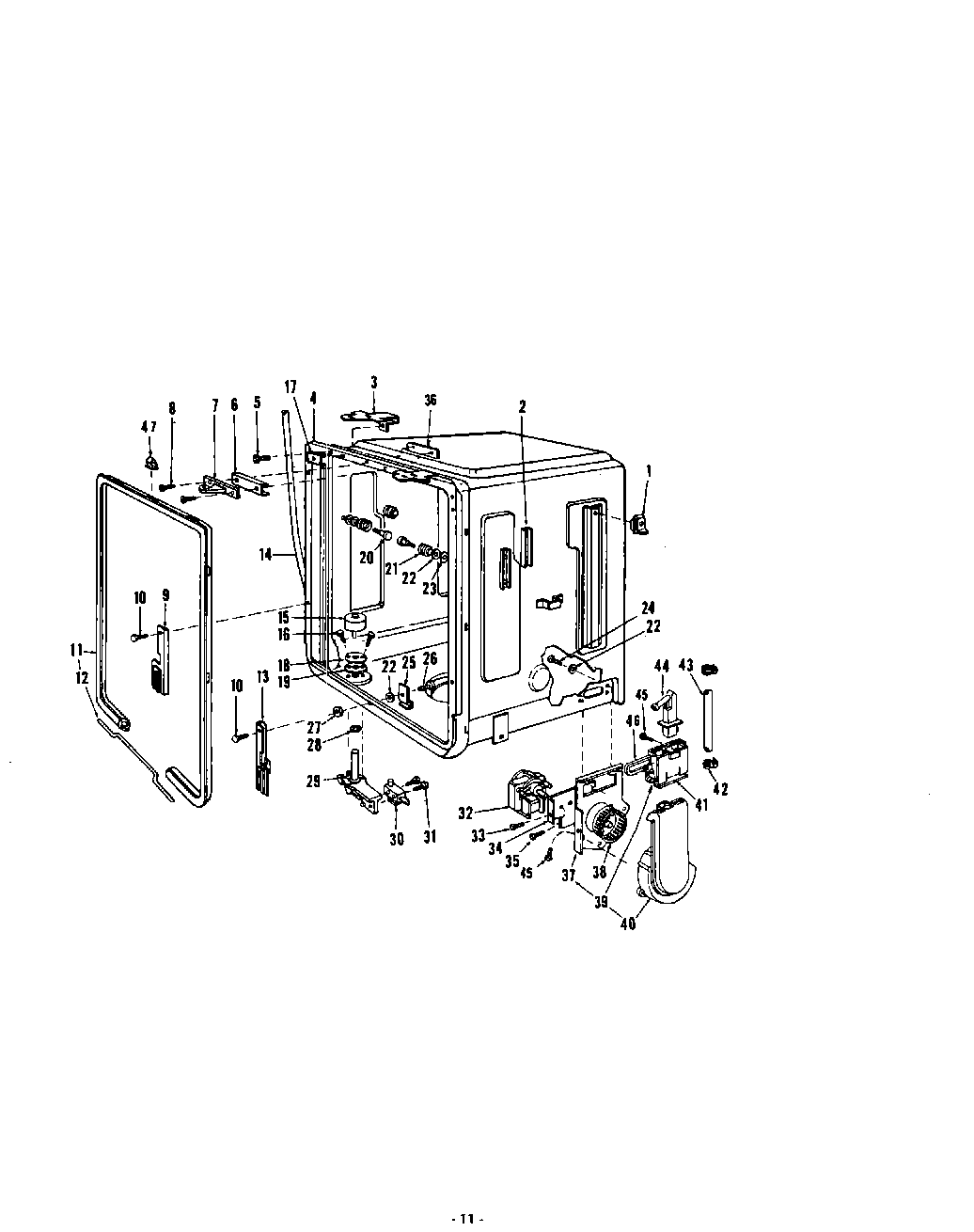

8505L00 08 – TUB

Products

Position	Product
1	Cage Nut
2	Tapping Plate
3	Attach Clip
4	Tub & Gasket Assembly
5	Screw No.8×7/16“Lg. C.R. Truss Hd. St. St.
6	Shim
7	Strike
8	WP22001496 Whirlpool Screw
9	Counterbalance Arm Guide L.H.
10	Screw 10-24 x 7/8 Lg. Acorn Hex Washer Hd. Chr. Pl.
11	Gasket & Wire Assembly (Includes Service No. 808344, Gasket Junction Wire)
12	Gasket Junction Wire
13	Counterbalance Arm Guide R.H.
14	Drain Hose
15	Float
16	Screw No.10×1“Lg. Hex Washer Hd. St. St.
17	Clip Shim
18	Plate – Float Tube
19	Gasket – Float Tube
20	Screw & Washer Kit (Includes Key No. 10)
21	Roller
22	Washer
23	Sealing Washer
24	Screw No.8×5/8“Lg. C.R. Hex Hd. St. St.
25	Gasket Clip
26	WP250830 Whirlpool Refrigerator Screw
27	Nut
28	“O“ Ring
29	Float Assembly
30	Switch
31	Screw 4-40×5/8“ Lg. Hex Hd. Cad. Pl.
32	Motor
33	Screw 8 x 1/4 Lg. C.R. Pan Hd. Cad. Pl.
34	Motor Mounting Plate
35	Screw 6-32 x 5/16 Lg. C.R. Rd. Hd. Cad. Pl.
36	Latch Tapping Plate
37	Blower Plate
38	Wheel & Clip Assembly
39	Housing Assembly (Includes Service Nos. 806794-Blower Plate, 806797-Blow
40	WPL 808738
41	Vent Stack
42	Clamp
43	Tubing – Inlet
44	Inlet Nozzle
45	Screw No.8Ax1/2“Lg. C.R. Flat Hd. Zinc Pl.
46	Gasket
47	Gasket Clip
