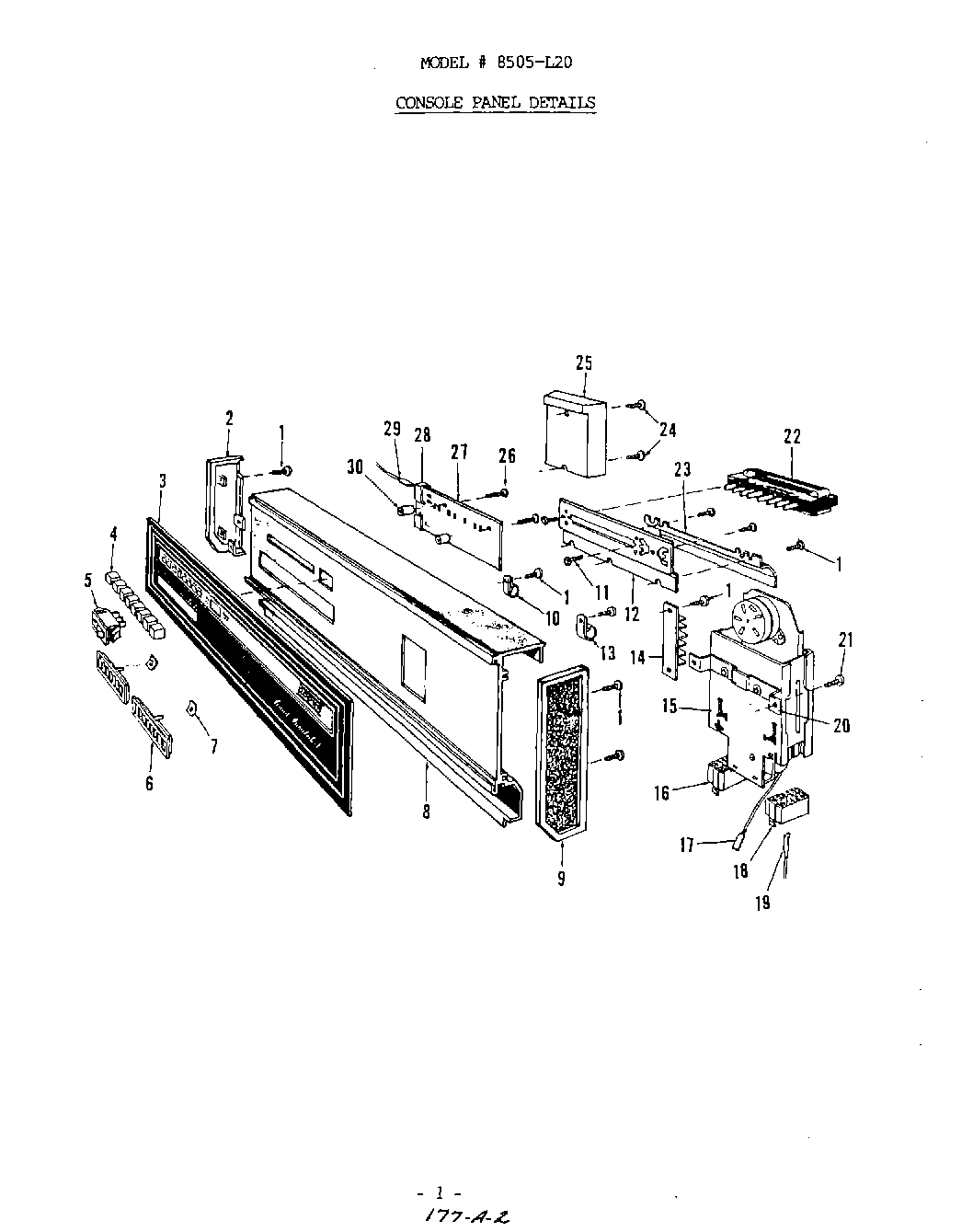

8505L20 02 – CONSOLE PANEL

Products

Position	Product
1	Screw No.8x7/16``Lg. C.R. Pan Hd. Cad. Pl.
2	End Cap L.H.
3	Console Overlay
4	Pushbutton
5	Rocker Switch
6	Vent Grille
7	Speednut
8	Console panel (Includes Service Nos. 808447-Vent Grille (2) & 808475-Speednut (2)
9	End Cap R.H.
10	W10833902 Whirlpool Refrigerator Clamp
11	Screw No.6-30Ax3/8``Lg. Pan Hd. Cad. Pl.
12	Switch Mounting Bracket
13	Clamp
14	Terminal Board Assembly
15	Timer
16	Housing - Timer Terminal
17	Terminal - Timer
18	Timer Housing (White)
19	Housing Terminal
20	Timer Bracket
21	Screw 10-32 x 7/32 Lg. C.R. Truss Hd. Cad. Pl.
22	Switch
23	Shield - Vent Slot
24	Screw No.8Bx5/16`` Lg.C.R. Truss Hd. St. St.
25	Splash Pan
26	Screw 8 x 7/8 Lg. C.R. Round Hd.Cad.Pl.
27	Circuit Board Assembly
28	Circuit Board Connector
29	Circuit Board Terminal
30	Spacer
