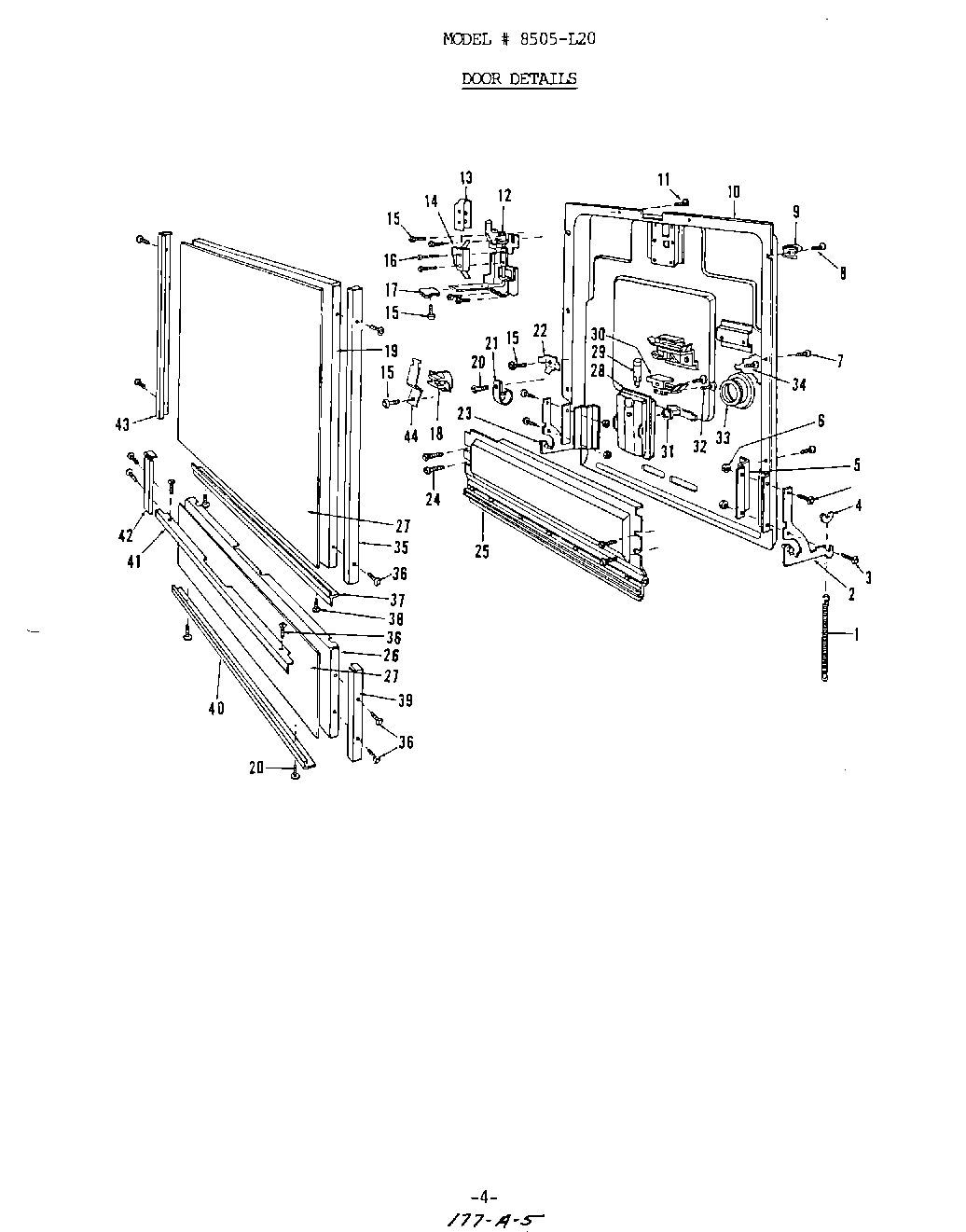

8505L20 03 – DOOR

Products

Position	Product
1	Door Spring (Includes Service No. 805884-Spring Pad (1))
2	Counterbalance Arm Assembly – R.H.
3	Screw No. 10-24 x 5/8“ Lg. C.R. Truss Hd. Chr. Pl.
4	Spring Pad
5	Counterbalance Arm Mounting Bracket
6	M0282009 Whirlpool Air Conditioner Nut
7	Screw 8×1/2 Lg. C.R. Truss Hd. St. St.
8	Screw No.8×5/8“Lg. C.R. Truss Hd. St. St.
9	Guide – Door
10	Porcelain Weld Assembly
11	Screw No.8Bx5/16“ Lg.C.R. Truss Hd. St. St.
12	Latch Assembly
13	Cover – Switch
14	Switch
15	Screw No.8-32×5/16“Lg. C.R. Hex Hd. Cad. Pl.
16	Screw No.6-32×1“Lg. Hex Hd. Cad. Pl.
17	Latch Knob
18	Thermostat (Water Heat)
19	Door Panel (White)
20	Screw Type “A“ No.8×3/8“ Lg. C.R. Binding Hd. Cad. Pl.
21	Clamp
22	Terminal-Grounding
23	Arm Assembly – Counterbalance L.H.
24	Screw No.8×3/8“ Lg. C.R. Binding Hd. Cad. Pl.
25	Vent Plate Assembly
26	WPL 809108
27	Door & Acces Panel Inserts (Avocado)
27	Door & Access Panel Inserts (White)
27	Door & Access Panel Inserts (Coffee)
27	Door & Access Panel Inserts (Toast)
27	Door & Access Panel Inserts (Almond)
27	Door & Access Panel Inserts (Black)
27	Door & Access Panel Inserts (Wheat)
27	Door & Access Panel Inserts (Platinum)
28	Body Assembly
29	Plunger
30	Bi-Metal Assembly
31	xFill Plug
33	Grommet – Dispenser
34	Screw 10×3/8 Lg. Truss Washer Hd. St. St.
35	Door Panel Trim – R.H.
36	WP74004005 Whirlpool Screw
37	Door Panel Trim-Bottom
38	Screw
39	Access Panel Trim-R.H.
40	Access Panel
41	Access Panel Trip – Top
42	Access Panel Trim – L.H.
43	Door Panel Trim – L.H.
44	WPL 809097
45	WPL 808926
