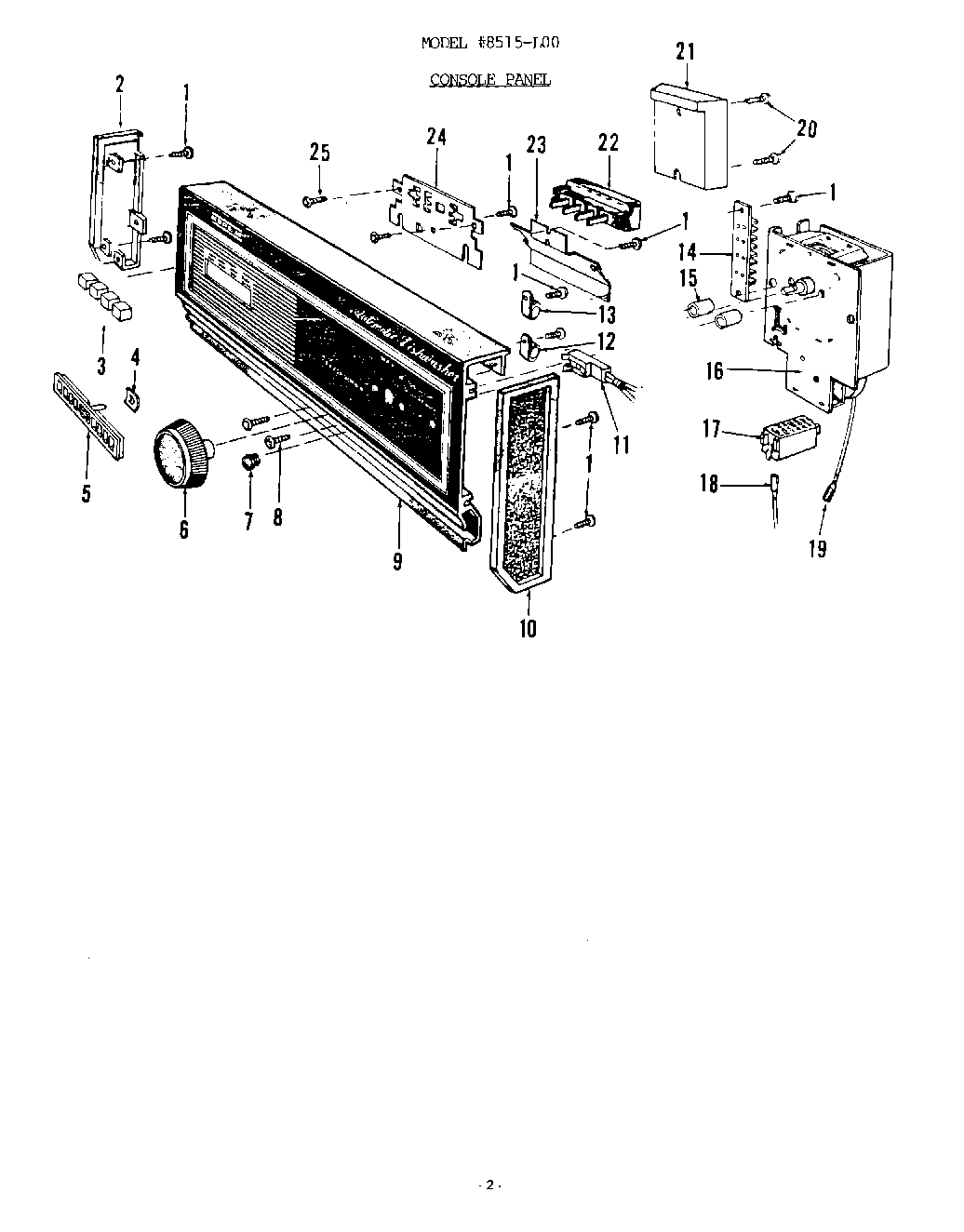

8515L00 02 – CONSOLE PANEL

Products

Position	Product
1	Screw No.8x7/16``Lg. C.R. Pan Hd. Cad. Pl.
2	End Cap L.H.
3	Pushbutton
4	Speednut
5	Vent Grille
6	Timer Knob
7	Lens
8	Screw No.10-32x1-17/64``Lg. C.R. Truss Hd. Cad. Pl.
9	Console Panel
10	End Cap R.H.
11	Light Assembly-Pilot
12	Clamp
13	W10833902 Whirlpool Refrigerator Clamp
14	Terminal Board Assembly
15	Spacer - Timer
16	Timer
17	Housing - Timer Terminal
18	Housing Terminal
19	Terminal - Timer
20	Screw No.8Bx5/16`` Lg.C.R. Truss Hd. St. St.
21	Splash Pan
22	Switch
23	Shield - Vent Slot
24	Switch Bracket
25	Screw No.6-30Ax3/8``Lg. Pan Hd. Cad. Pl.
